WINDOW CLEANING APPARATUS CAPABLE OF MANIPULATION VIA MAGNETIC ATTRACTION AND CONTROL METHOD THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 29, 2015
app pub date -
Nov 8, 2012
filing date -
Nov 8, 2011
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

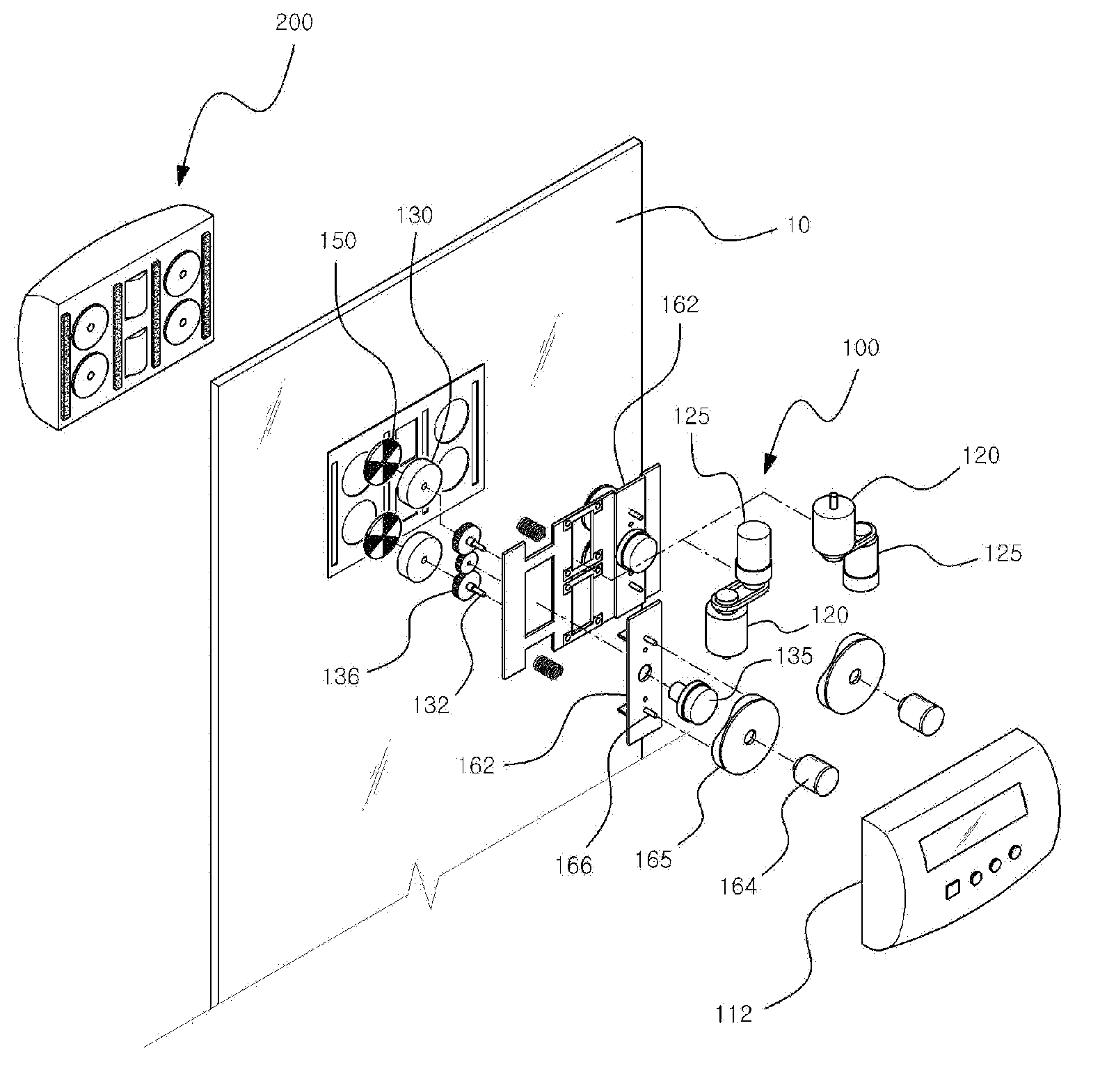

An apparatus for cleaning windows comprising: a first cleaning unit, which is positioned on one side of a window, having a built-in first magnetic module comprising a magnet or a magnetic material; and a second cleaning unit, which is positioned on the opposite side of the window on which the first cleaning unit is positioned, having a built-in second magnetic module comprising a magnet or a magnetic material so as to generate magnetic attraction with the first magnetic module of the first cleaning unit, wherein the first and second cleaning units, each attached to either sides of the window, respectively, due to the magnetic attraction, clean one or both sides of the window while moving together.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| KR | B1 | KR101320615 | Nov 08, 2011 |
| WO | A1 | WO2013069986 | Nov 08, 2012 |
