Collection Systems for Use in Offset Pit Latrines Having Pour Flush Latrine Pans, Collectors, Offset Pit Latrines and Related Methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 29, 2015
app pub date -
Jul 28, 2014
filing date -
Jul 26, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

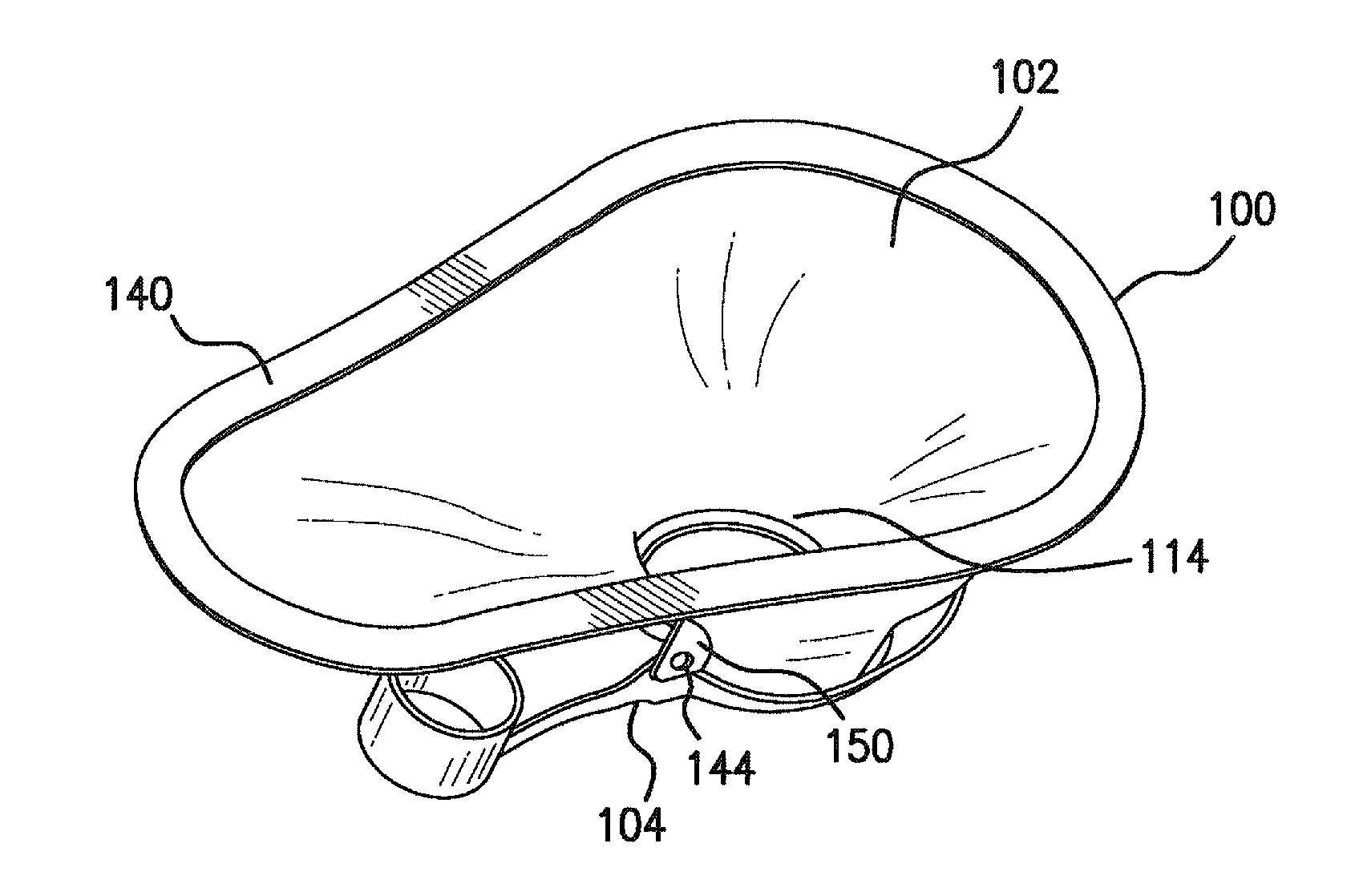

The invention described herein includes a latrine pan and collector system for use in an offset pit latrine. The system permits use of a latrine pan having a flapper in an offset leach pit context, and eliminated the necessity of large scale installation of a concrete collection box, which can collect unsanitary debris. The system of the invention includes (1) a pour-flush latrine pan and (2) a collector. The collector includes a collector body that engages the latrine pan, defines a discharge opening, and secures an inclined surface sloping downwardly between an impact zone positioned beneath the outlet of the latrine pan and the discharge opening, the collector body securing the inclined surface at a position sufficiently distant from the underside of the latrine pan so that the inclined surface does not impede pivoting of the flapper, whereby material discharged from the outlet of the latrine pan contacts the inclined surface at the impact zone and slides downwardly from the impact zone to the discharge opening.
