Electric parking brake control device, control method and control program, and brake system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2017
Issued Date -
N/A
app pub date -
Feb 6, 2013
filing date -
Feb 7, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

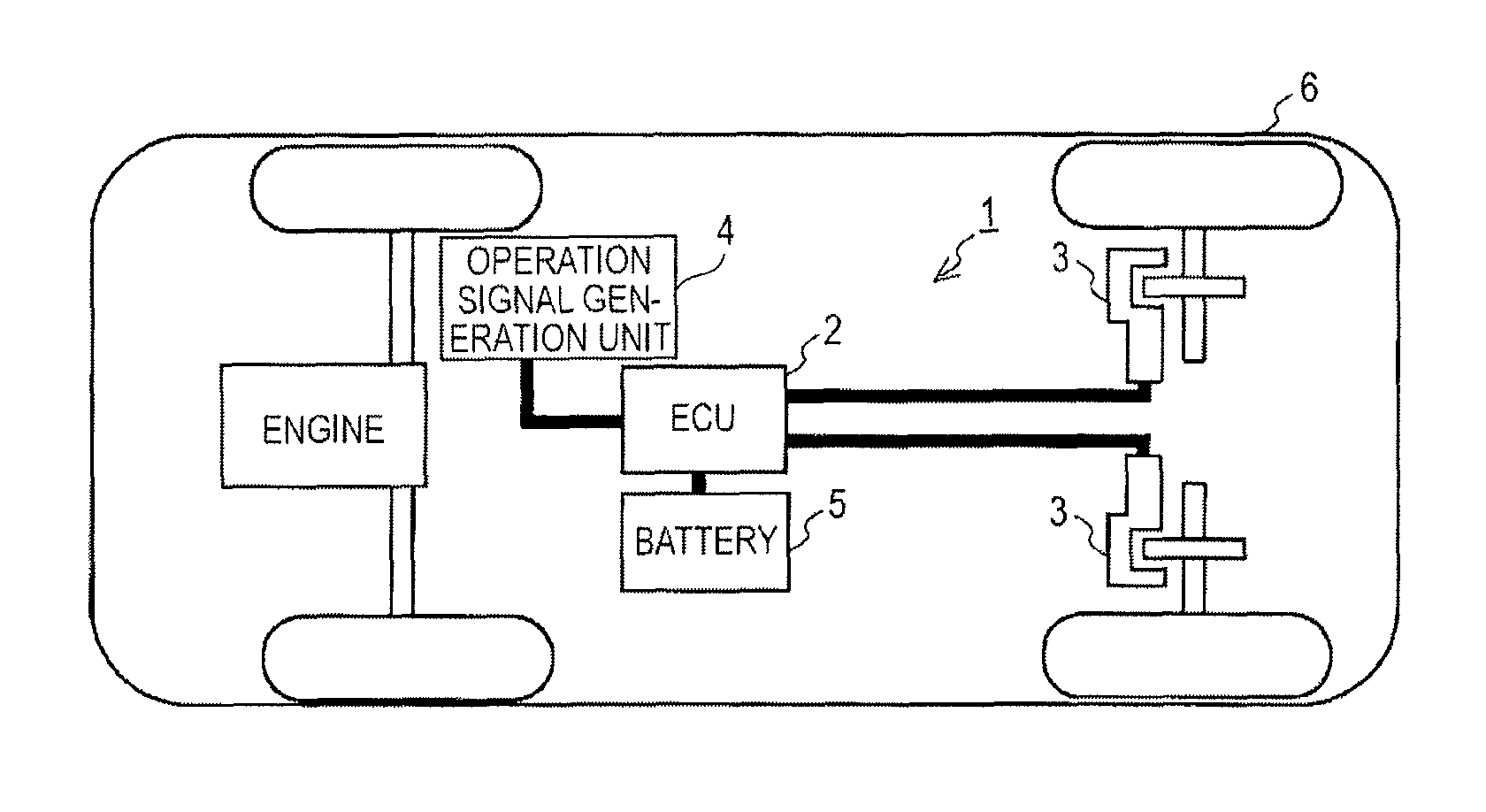

A control device for an electric parking brake controls a motor for driving a friction member of the electric parking brake. The control device includes a processing unit which starts the motor in order to drive the friction member to a direction for placing the electric parking brake in a locked state; measures a current value of the motor in an operating state thereof; determines a cut-off current value from the measured current value of the motor according to a predetermined rule defining a correlation between the cut-off current value of the motor, by which a braking force necessary for the electric parking brake in the locked state is generated, and an increasing rate of the current; and stops the motor when the current value of the motor reaches the determined cut-off current value.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B60T Class
- 820 Applications Filed
- 769 Patents Issued To-Date
- 93.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60T Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 10, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 10, 2029 |
