METHOD FOR FABRICATING A SEMICONDUCTOR DEVICE

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20150014824A1
SERIAL NO

14364900

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

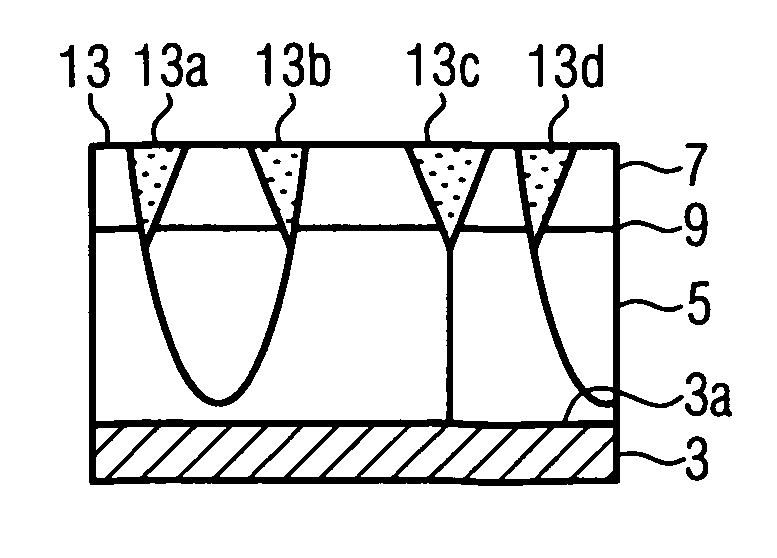

The present invention relates to a method for fabricating a substrate for a semiconductor device comprising an interface region between a first layer and a second layer having different electrical properties and an exposed surface, wherein at least the second layer includes defects and/or dislocations, the method comprising the steps of: a) removing material at one or more locations of the defects and/or dislocations, thereby forming pits, wherein the pits intersect the interface region, and b) passivating the pits. The invention also relates to a corresponding semiconductor device structure.
