PROCESSING UNIT HAVING CONDENSER, AND FULLY AUTOMATIC GRAVURE PLATEMAKING PROCESSING SYSTEM USING SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 15, 2015
app pub date -
Dec 5, 2012
filing date -
Dec 7, 2011
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

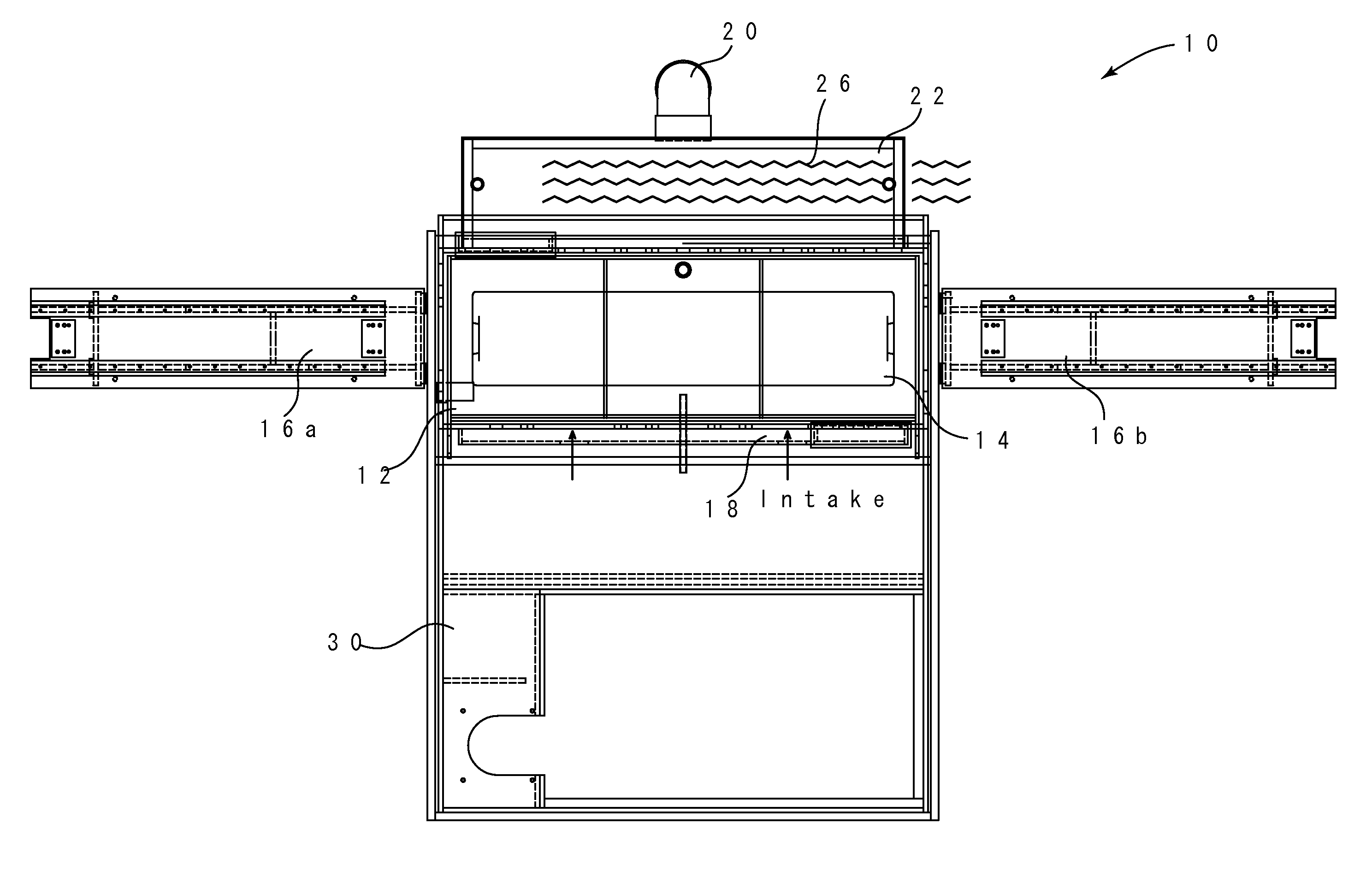

Provided is a processing unit including a condenser, which is capable of condensing, during a plate-making process to be performed by the processing unit in a fully automatic gravure plate-making processing system, a processing solution vaporized into the form of mist so as to reuse the resultant as the processing solution, and to provide a fully automatic gravure plate-making processing system using the processing unit including a condenser. The processing unit includes a condenser, which is to be used for a fully automatic gravure plate-making processing system for manufacturing a plate-making roll by performing a series of processes on an unprocessed plate-making roll. The processing unit includes: a processing bath; chuck means for holding a gravure cylinder inside the processing bath; an intake port for taking in air, which is provided in a part of the processing bath; an exhaust port for exhausting gas, which is provided in another part of the processing bath; a condenser provided between the processing bath and the exhaust port; and a processing solution return pipe for returning, to the processing bath, a processing solution obtained by the condenser that liquefies a part of the gas to be exhausted.
First Claim
Other Claims data not available
