OSCILLATOR AND PHASE-LOCKED LOOP CIRCUIT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 8, 2015
app pub date -
Jul 1, 2014
filing date -
Jul 2, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|

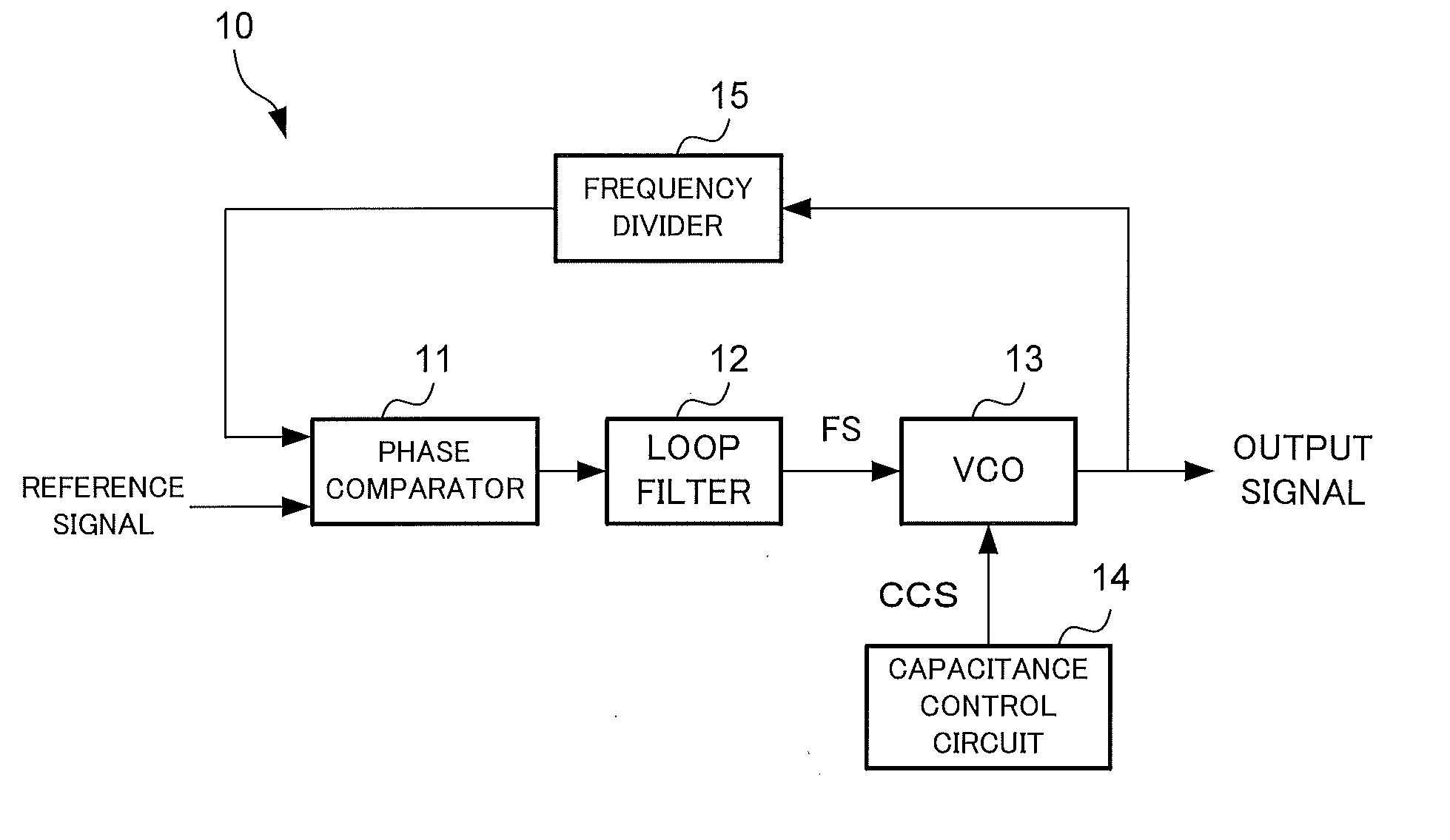

Abstract
An oscillator comprising: an oscillator circuit element having a substrate terminal group and a capacitance section provided on an element substrate, the substrate terminal group comprising at least three substrate terminals including a first substrate terminal and a second substrate terminal, the capacitance section being connected between the first and second substrate terminals; a mount part including an external terminal group comprised of at least one external terminal and mounting thereon the oscillator circuit element; a plurality of inductance lines which are formed among the at least three substrate terminals by conductor wirings which connect between the at least three substrate terminals of the substrate terminal group and the at least one external terminal; and a switch circuit provided on the element substrate to control a connection state of the plurality of inductance lines.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | A | JP2015012571 | Jul 02, 2013 |
| CN | A | CN104283555 | Jul 02, 2014 |
International Classification(s)
- 2014 Application Filing Year
- H03L Class
- 712 Applications Filed
- 648 Patents Issued To-Date
- 91.02 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H03L Class
- 7.07 % this patent is cited more than
- 10 Age
