TITANIUM-NICKEL ALLOY THIN FILM, AND PREPARATION METHOD OF TITANIUM-NICKEL ALLOY THIN FILM USING MULTIPLE SPUTTERING METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 1, 2015
app pub date -
Aug 13, 2012
filing date -
Oct 28, 2011
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

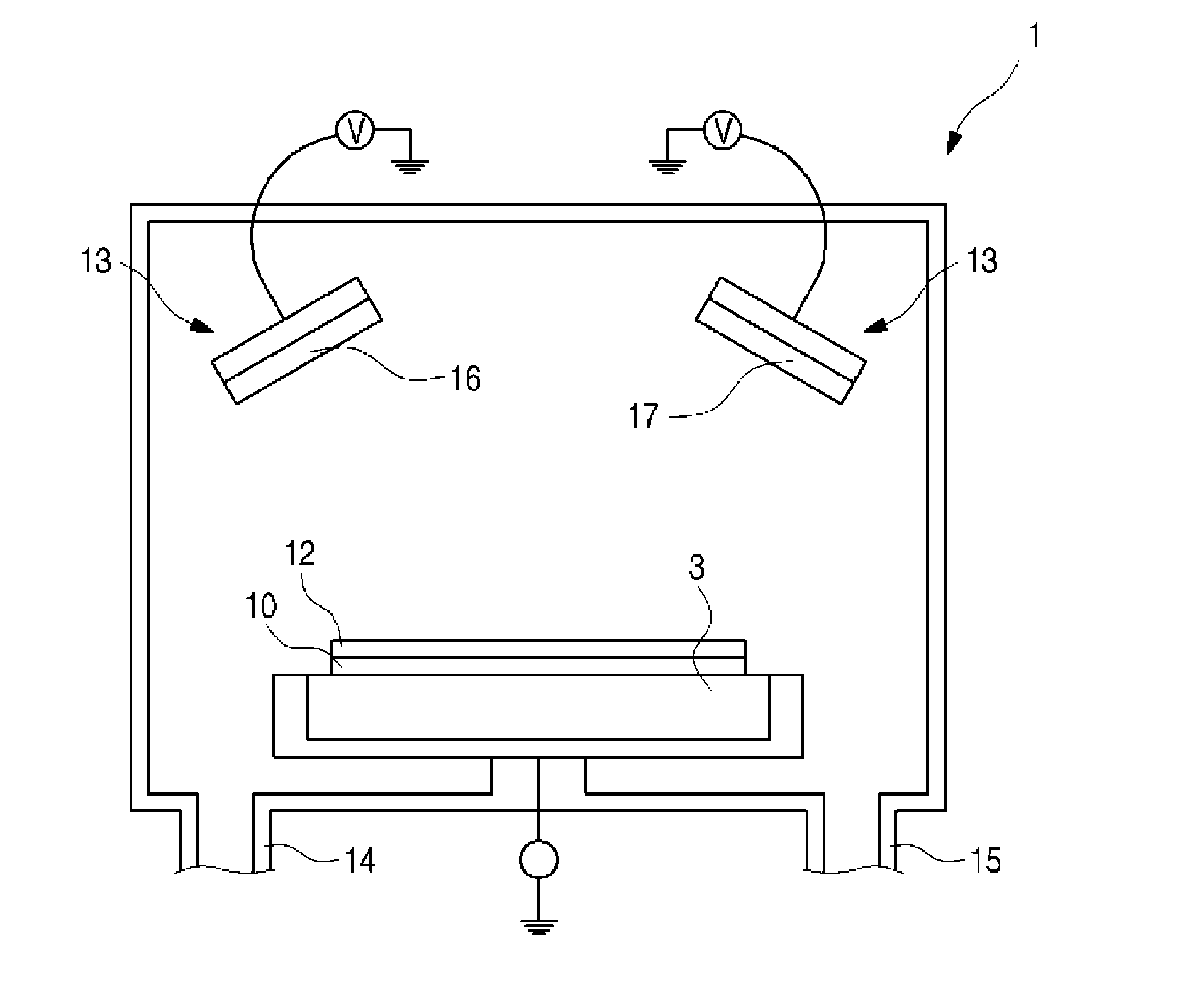

In a Ti—Ni alloy thin film, Ti and Ni are mixed and deposited on a base material by putting a Ti target and an Ni target at a predetermined distance from each other in a co-sputtering apparatus and simultaneously sputtering the targets by applying different voltages. A method of fabricating a Ti—Ni alloy thin film using co-sputtering includes a target preparing step that prepares a Ti target, a Ni target and a base material, a target disposing step that puts the Ti target and the Ni target at a predetermined distance from each other in a co-sputtering apparatus, an apparatus setting step that sets work conditions of the co-sputtering apparatus, and a thin film depositing step that forms a Ti—Ni alloy thin film with Ti and Ni mixed on the base material by operating the co-sputtering apparatus.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| KR | A | KR20130046661 | Oct 28, 2011 |
| KR | B1 | KR101266253 | Jun 28, 2012 |
| WO | A1 | WO2013062221 | Aug 13, 2012 |
| JP | A | JP2015509134 | Aug 13, 2012 |
International Classification(s)
- 2012 Application Filing Year
- C23C Class
- 1946 Applications Filed
- 1591 Patents Issued To-Date
- 81.76 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- C23C Class
- 13.95 % this patent is cited more than
- 10 Age
