Fabric having cut-loop structure, method for manufacturing same, and product using fabric having cut-loop structure

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9677206
APP PUB NO 20140373967A1
SERIAL NO

14368659

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage
Patent Longevity
Forward Citations

Abstract

See full text

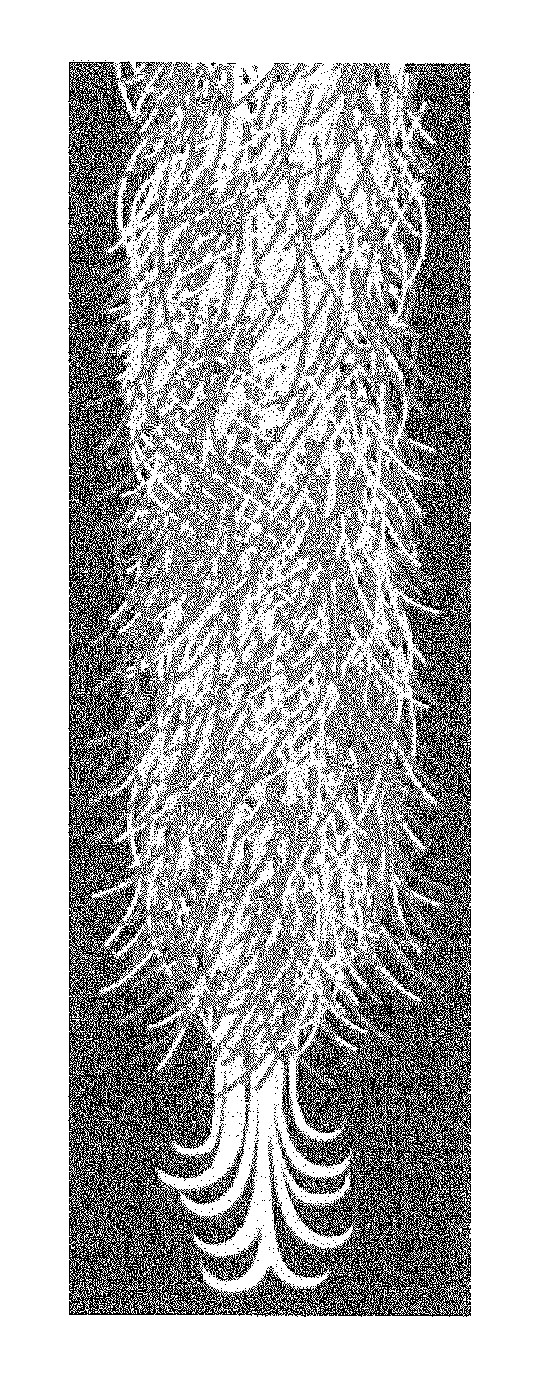

The present invention provides fabrics with cut loop pile comprising a synthetic filament core yarn and covering yarn of a split microfiber yarn and a viscose rayon yarn and a manufacturing method thereof. The core yarn at the section where said loops are cut is outwardly protruded from the covering yarn, wherein the synthetic multifilament core yarn is separated into multiple filaments to function as hooks. The fabrics with cut loop pile show superior characteristics in polishing properties, sliding properties, water absorption properties, rapid drying properties and feeling of touch owing to the split yarn of microfibers and the viscose rayon yarn which comprises the covering yarn, and polishing can be performed while easily catching foreign substances such as extremely minute dust particles or human hairs and the like by the hook-shaped multifilaments of the core yarn. Thus the fabrics with cut loop pile according to the present invention can be used usefully in products such as various kind of mats, towels, bathroom products, and the like including dishcloths and mops.

First Claim

See full text

Other Claims data not available

Family

PCTEP
+

Patent Owner(s)

Patent OwnerAddress
CLEMBON CO LTD(WELL-BEING PLAZA BASEMENT FLOOR JANGAN-DONG) 55 DAPSIMNI-RO 69-GIL DONGDAEMUN-GU SEOUL 130-839

International Classification(s)

loading....
  • 2013 Application Filing Year
  • D03D Class
  • 186 Applications Filed
  • 153 Patents Issued To-Date
  • 82.26 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2013201420152016201720182019202020210255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Choi, Sung Hoon Seoul, KR 23 176
Lee, Hyun Sam Busan, KR 18 171

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 1 Citation Count
  • D03D Class
  • 33.91 % this patent is cited more than
  • 8 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges79137133101 - 1011 - 2021 - 3031 - 400102030405060708090100110120130140150

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
11.5 Year Payment $7400.00 $3700.00 $1850.00 Dec 13, 2028
