INFLATABLE COMPOSITE STRUCTURAL COMPONENT AND METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 18, 2014
app pub date -
Jun 10, 2014
filing date -
Jun 12, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

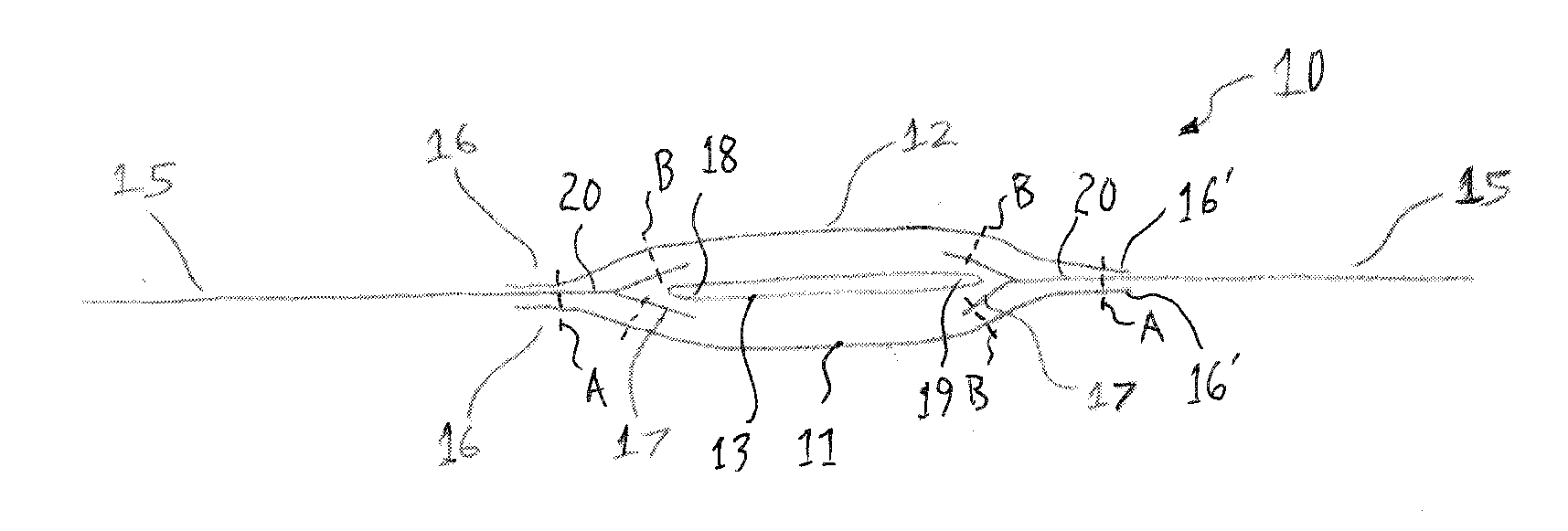

An inflatable structural component having a longitudinal first braided material layer and a longitudinal second braided material layer each forming a panel having a width-wise dimension transverse to a length-wise direction of the component bounded by first and second longitudinal edges along the length-wise direction of the component, the first and second braided material layers enveloping at least a portion of an inflatable longitudinal bladder, the first and second braided material layers arranged such that the first longitudinal edges of the first and second braided material layers are approximately aligned and connected together along a first side of the bladder and the second longitudinal edges of the first and second braided material layers are approximately aligned and connected together along a second side of the bladder.
First Claim
Other Claims data not available
