RADIOTELEPHONES HAVING CONTACT-SENSITIVE USER INTERFACES AND METHODS OF OPERATING SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 14, 2014
filing date -
Dec 30, 1997
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

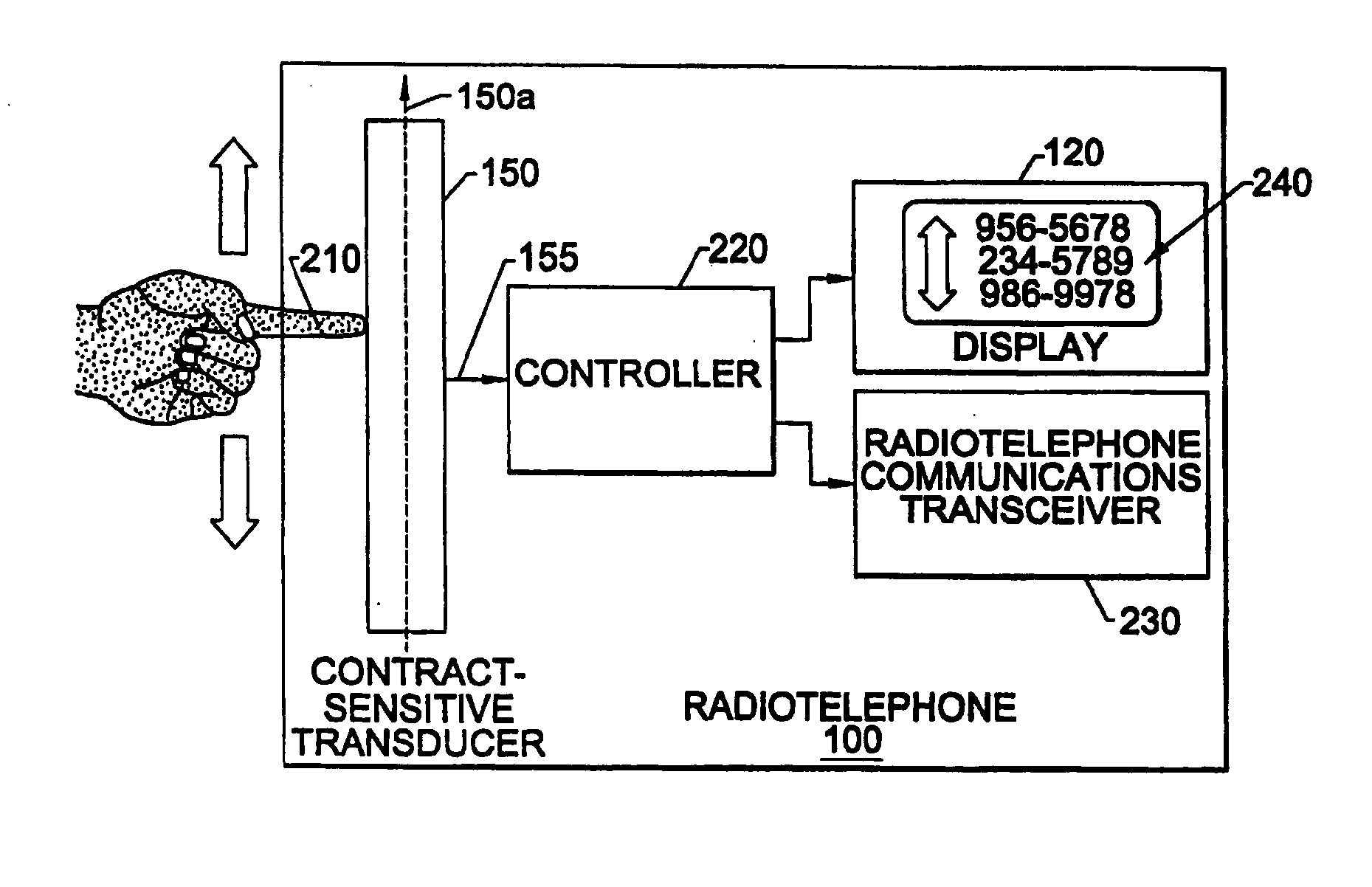

A device includes a housing having a front surface, a rear surface and first and second side surfaces; the rear surface configured engage a user's palm. The device includes a radiotelephone communications transceiver and a contact-sensitive display, supported by the housing. The contact sensitive display is configured to display an image at the front surface of the housing, and produce an output signal in response to moving contact of an object along a contact-sensitive surface of the contact-sensitive display. The device also includes a controller configured to control at least one of the display and the radiotelephone communications transceiver and to scroll displayed rows along an axis of the display based upon the output signal of the contact-sensitive transducer. The controller has a mode that is unresponsive to contact with the contact-sensitive transducer, the second mode being entered in response to an input from a user.
First Claim
Other Claims data not available
