Electric Shock Resistant L.E.D. Based Light
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 18, 2014
filing date -
May 23, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

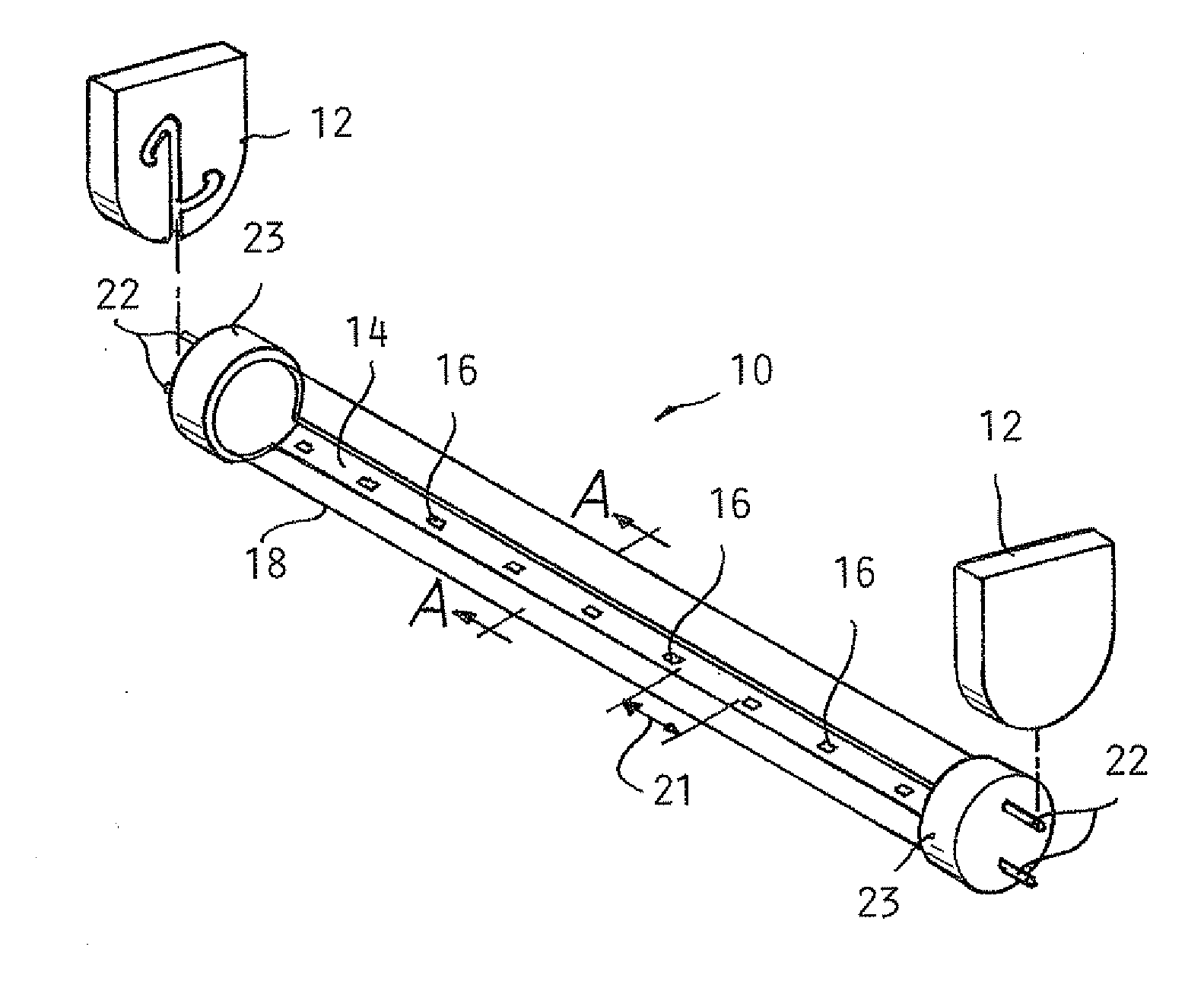

An LED-based light comprises: a tubular housing formed of a high-dielectric material and defined at least in part by a light transmitting portion; an elongate circuit board disposed within the housing; at least one LED mounted on the circuit board; an elongate heat sink disposed within the housing, the heat sink having an interior circuit board mounting surface opposing a radially outer surface, the circuit board mounted in thermally conductive relation to the circuit board mounting surface, substantially all of the radially outer surface of the heat sink in thermally conductive relation with the tubular housing for electrically insulated thermal transmission of heat generated by the LED from the circuit board to an ambient environment surrounding the LED-based light; and a pair of end caps disposed on opposing ends of the housing with connectors configured to physically connect the LED-based light to a conventional fluorescent light fixture.
First Claim
Other Claims data not available
