Peripheral Monitoring Device for Transportation Vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 4, 2014
app pub date -
Feb 5, 2013
filing date -
Feb 7, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

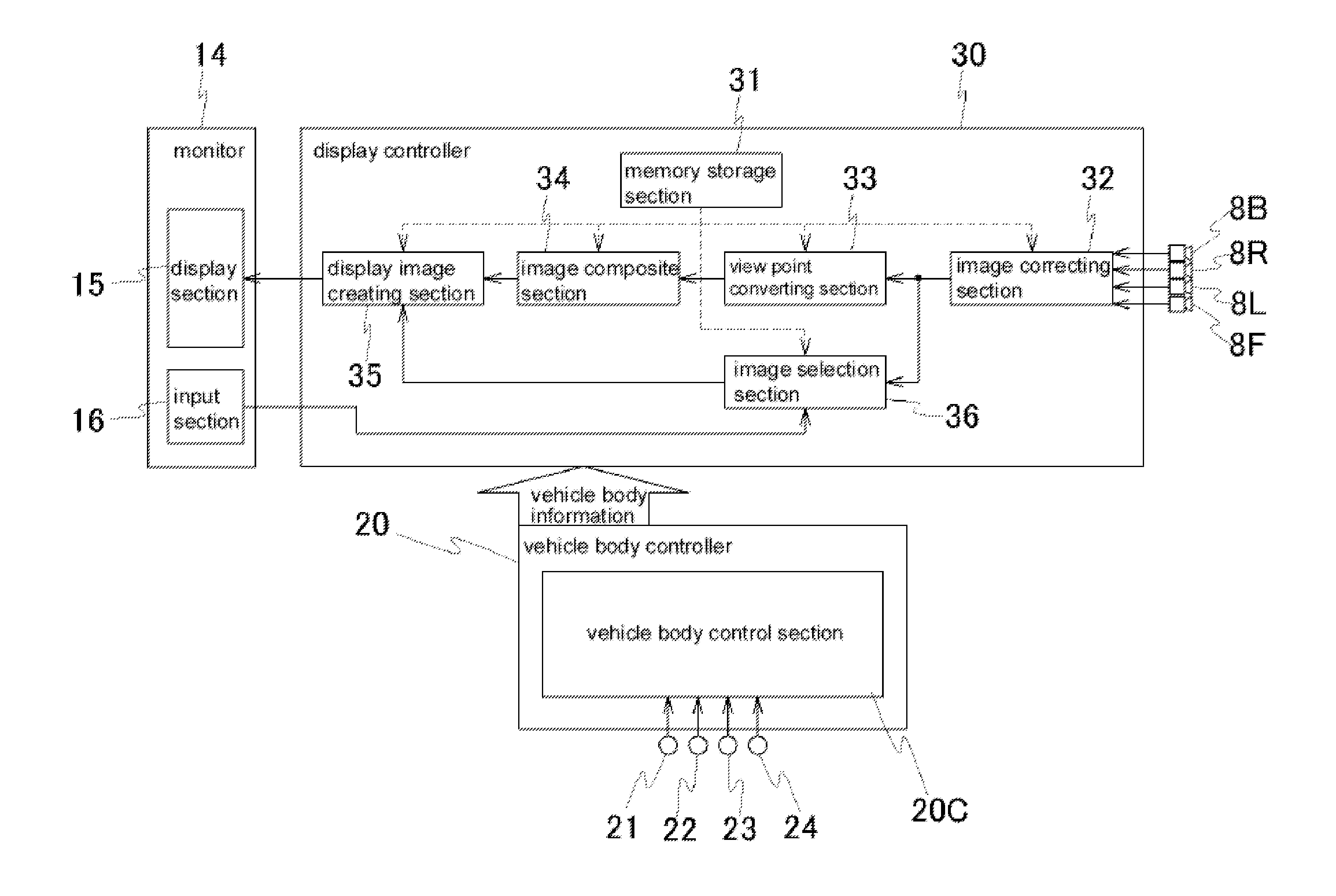

This invention comprises, for the sake of improving the safety at the time of traveling a transportation vehicle by displaying an image corresponding to the traveling direction of the dump truck 1, cameras 4B, 4L and 4R having the field of visions at least rear side, left side and right side of the dump truck 1, respectively, a monitor 14 disposed in an operator's cab 7 of the dump truck 1, the operator's cab 7 is further comprises a shift lever 21 for operating the forward and rearward traveling direction, a vehicle controller20 and a display controller 30 being also provided for displaying one or plurality of camera image on the monitor in accordance with the traveling direction of the dump truck 1, on the basis of steering information of left or right traveling direction of the dump truck 1 and information from the shift lever 21.
First Claim
Other Claims data not available
