ELECTRIC MACHINE WITH LIQUID COOLED HOUSING AND END CAP
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 4, 2014
app pub date -
May 30, 2013
filing date -
May 30, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

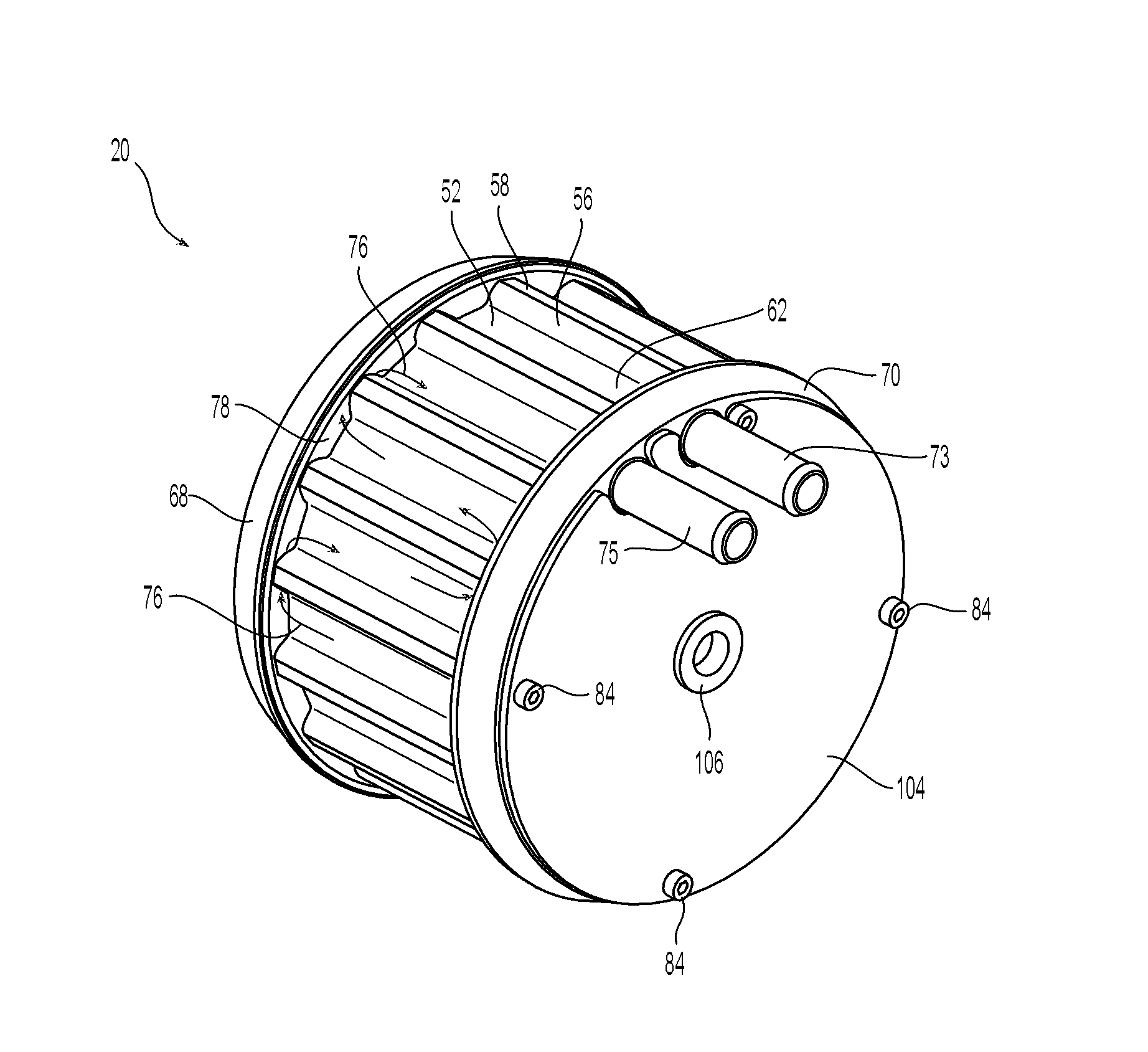

An electric machine that includes a stator operably coupled with a rotor. At least one axially extending housing member is thermally coupled with the stator core and defines a plurality of axially extending fluid passages. An end cap defines a plurality of end turn fluid passages interconnecting the axially extending fluid passages. The end turn fluid passages are arranged circumferentially about and proximate a first axial end of the stator whereby the axially extending fluid passages and end turn passages define a serpentine path. An electronic component thermally coupled with the end cap is disposed radially inward and axially proximate the plurality of end turn fluid passages. The electronic component may be at least partially axially positioned between the distal limit of the stator windings and the axial limit of the serpentine path. In alternative embodiments, the end cap supports a bearing assembly for the rotor shaft.
