High-voltage DC voltage unit and method for operating a high-voltage DC voltage unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 21, 2014
filing date -
May 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

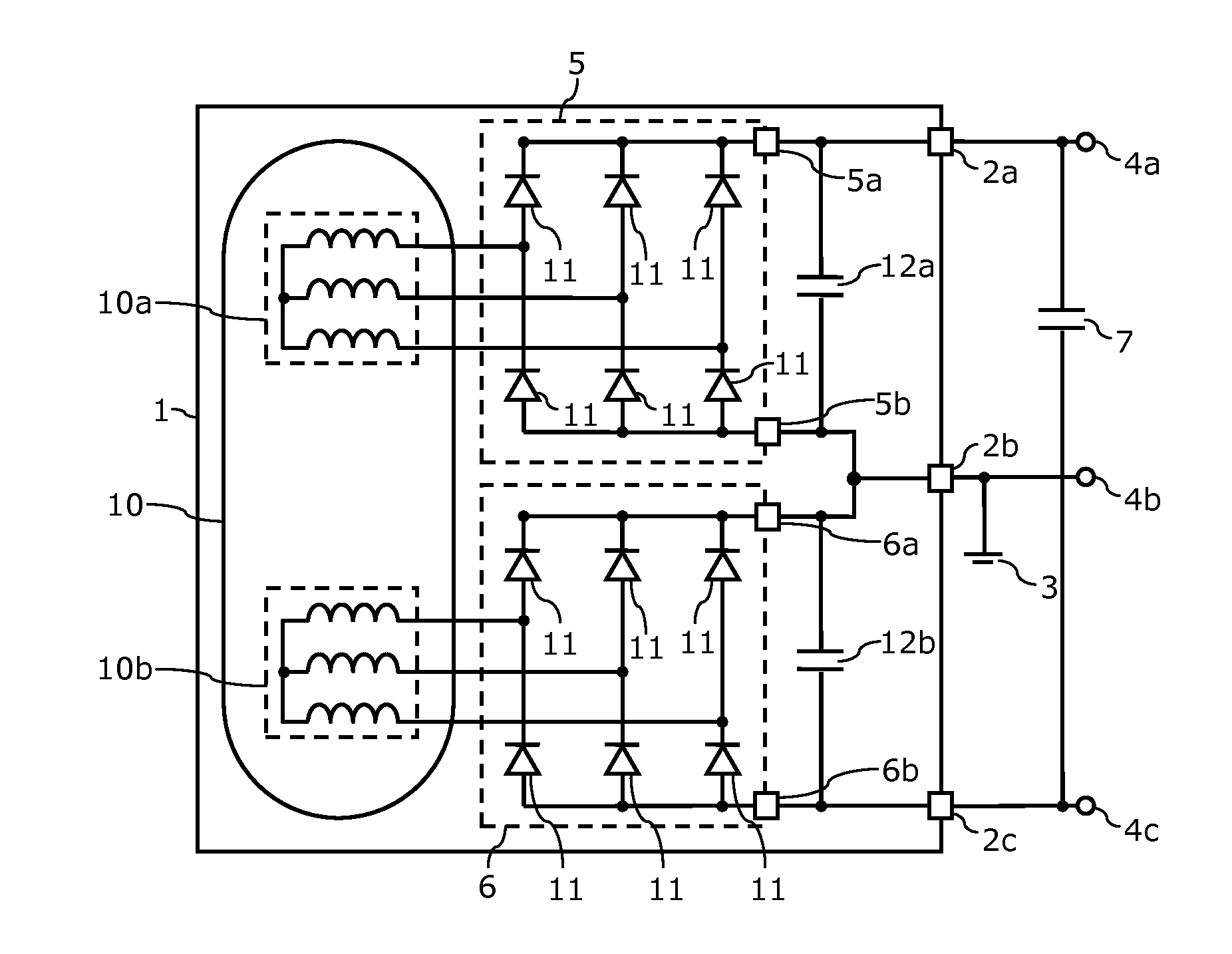

A high-voltage DC voltage unit with a first DC voltage apparatus providing a first high-voltage DC voltage between a first output connection and a second output connection of the DC voltage apparatus or can be fed with a first high-voltage DC voltage. A second DC voltage apparatus provides a second high-voltage DC voltage or can be fed with a second high-voltage DC voltage. A first DC voltage connection is coupled with the first output connection of the first DC voltage apparatus. A second DC voltage connection is coupled with the second output connection of the second DC voltage apparatus. A reference potential connection is coupled with the second output connection of the first DC voltage apparatus, with the first output connection of the second DC voltage apparatus and with an earth potential, the first and second high-voltage DC voltages realizing a bipolar power supply.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H02J Class
- 3785 Applications Filed
- 3269 Patents Issued To-Date
- 86.37 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
