Cube Corner Retroreflector For Measuring Six Degrees of Freedom
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 20, 2014
app pub date -
Apr 21, 2014
filing date -
Feb 14, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

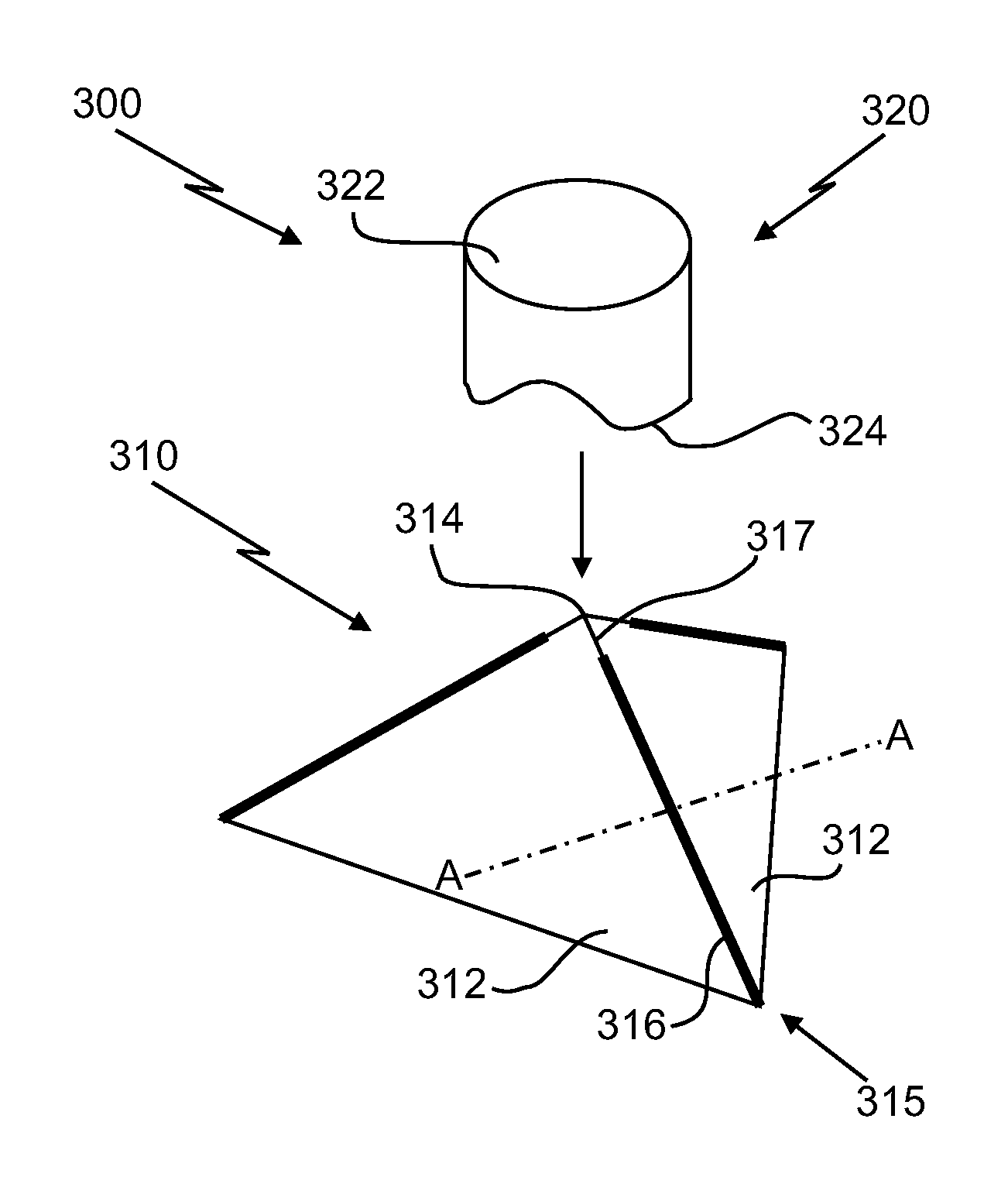

A target and method of manufacturing the target is provided. The method of manufacturing includes providing the cube cornered retroreflector, the cube cornered retroreflector including a first, second and third planar reflectors. Each planar reflector capable of reflecting light, each planar reflector perpendicular to the other two planar reflectors, each planar reflector intersecting the other two planar reflectors in a common vertex, and each planar reflector having two intersection junctions. Each intersection junction shared with an adjacent planar reflector for a total of three intersection junctions within the cube corner retroreflector. The method further including the step of directing ions from a focused ion beam etching (FIBE) device onto the first intersection junction defined by the first planar reflector and second planar reflector. A first material is removed from at least a first portion of the first intersection junction to define a first non-reflecting portion.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B29D Class
- 990 Applications Filed
- 780 Patents Issued To-Date
- 78.79 % Issued To-Date
