FURNITURE HINGE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 25, 2014
filing date -
Feb 16, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

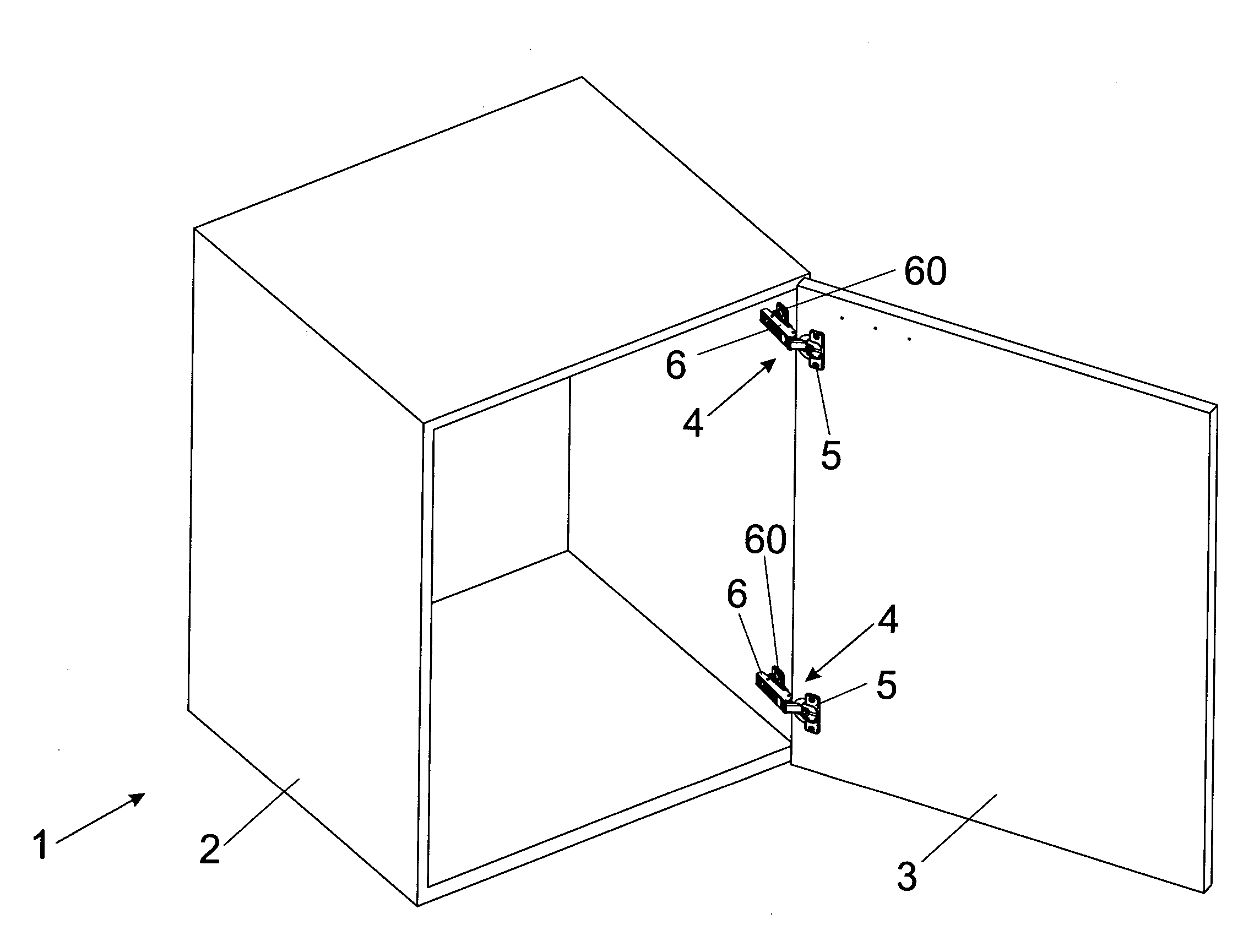

The invention relates to a furniture hinge comprising a hinge arm having a longitudinal axis, a hinge cup that is connected to the hinge arm and is mounted such as to be pivotable relative to the hinge arm between a closed position and an open position, and further comprising a linear damper having a linear damping stroke for damping a movement of the furniture hinge, wherein the linear damper is arranged at the hinge cup and, jointly therewith, can be arranged within a bore of a furniture item in the installed position, wherein in the open position of the furniture hinge in a plan view, the direction of the linear damping stroke of the linear damper runs at an acute angle (alpha) relative to the longitudinal axis of the hinge arm, the acute angle (alpha) being between 3° and 20°.
First Claim
Other Claims data not available
