THERMALLY INSULATED DIE PLATE ASSEMBLY FOR UNDERWATER PELLETIZING AND THE LIKE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 7, 2014
filing date -
Aug 13, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

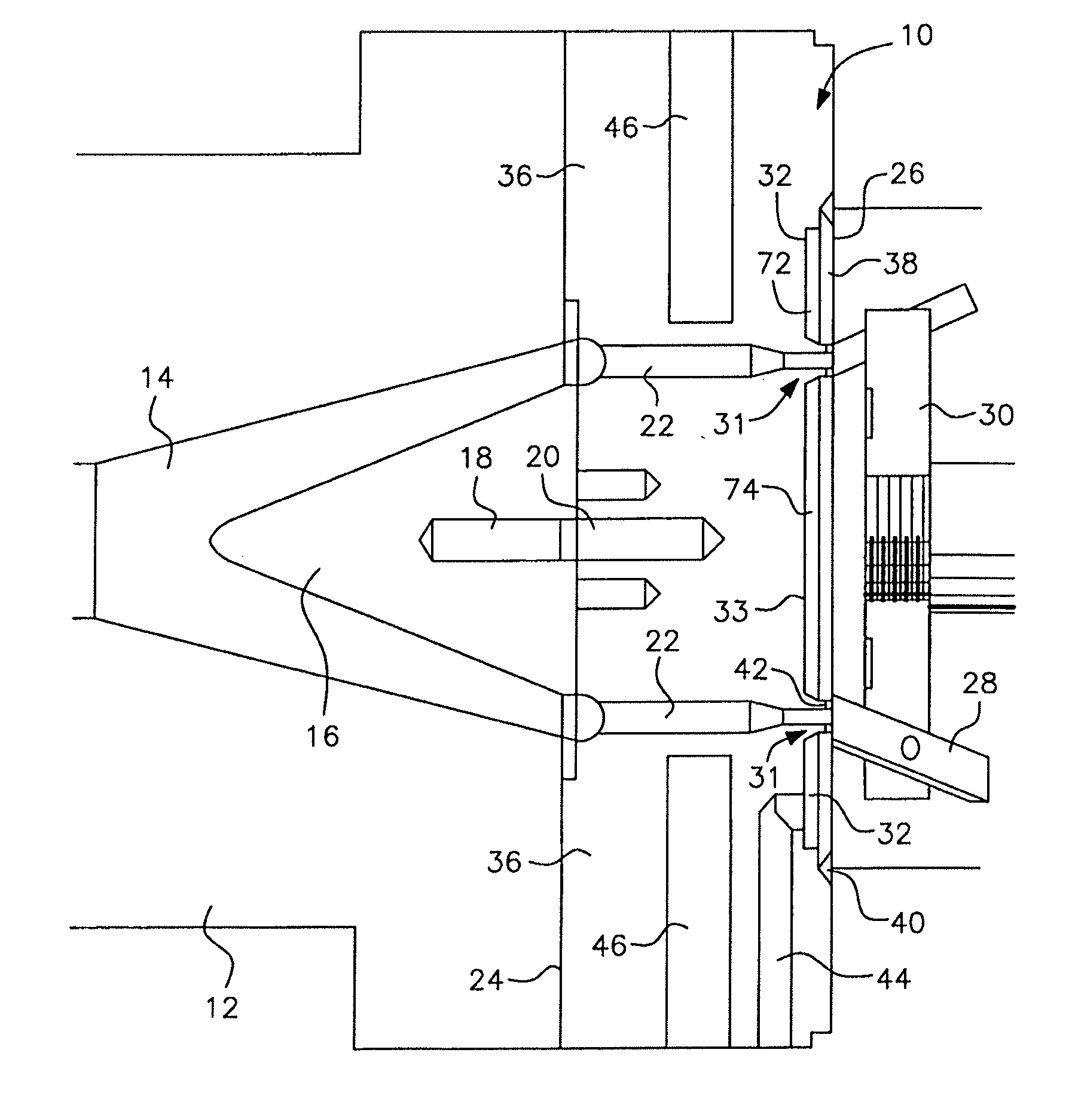

An insulated die plate assembly for use in underwater pelletizing and other granulation processes includes a thin, continuous air chamber formed across the plate assembly generally parallel to the die face such that the heated upstream portion of the die plate assembly is thermally insulated from the downstream portion. The air chamber is atmospherically equilibrated by venting the air chamber to the atmosphere. The plurality of extrusion orifices, either individually or in groups, are formed in extrusion orifice extensions that extend through the insulation chamber so that the process melt to be granulated can pass therethrough. The orifice extensions and the components forming the air chamber around the orifice extensions channel heat along said extensions to maintain the process melt therein at a desired temperature, to help rigidify the die plate assembly and to better seal the air chamber.
First Claim
Other Claims data not available
