VIRTUAL DATA POINT CREATION MECHANISM FOR A BUILDING MANAGEMENT FAULT DETECTION SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 30, 2014
app pub date -
Jan 24, 2014
filing date -
Apr 29, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

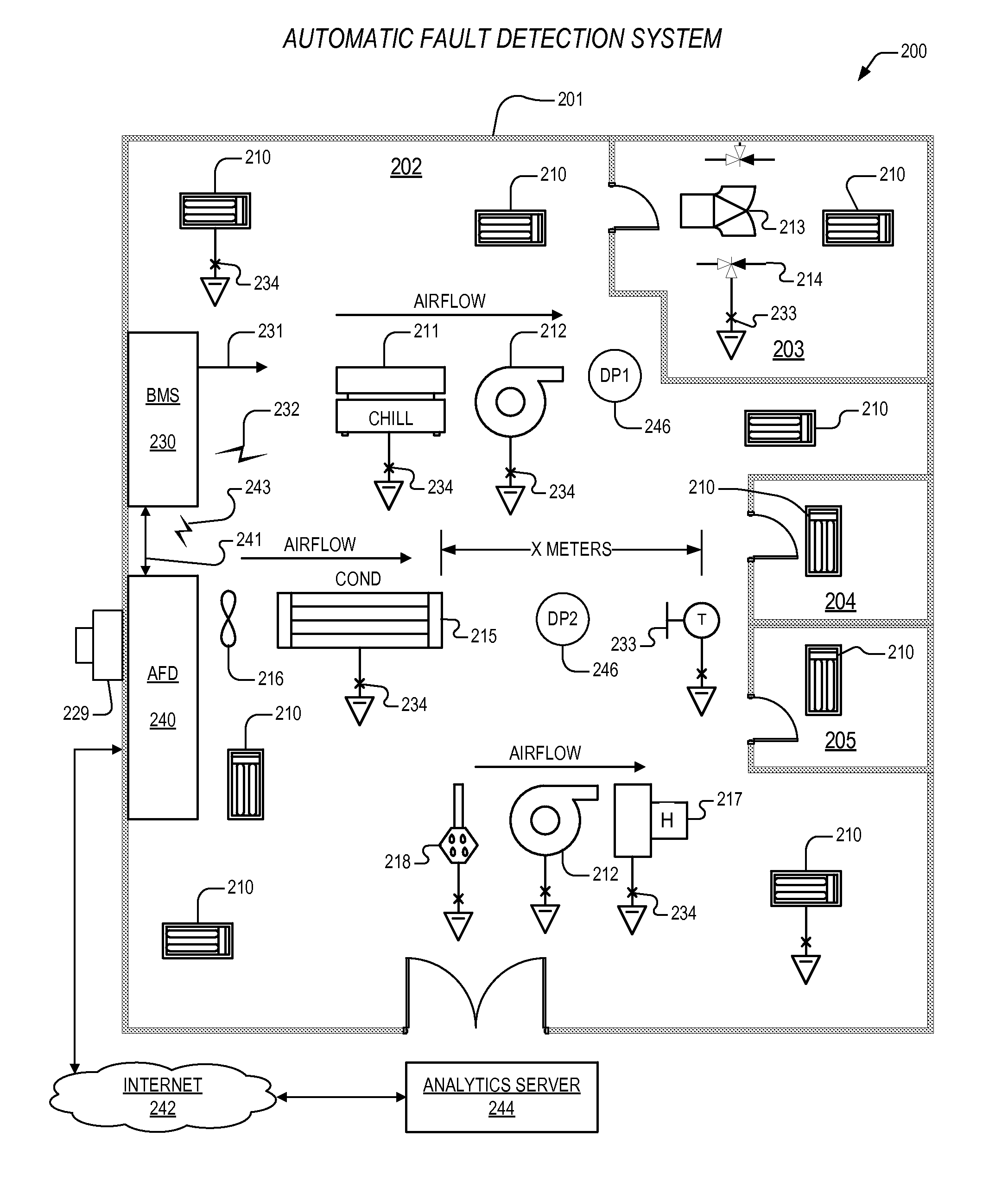

An apparatus for detecting faults of components monitored by a building management system (BMS), including an automatic fault detection (AFD) element that monitors, in real time, data samples generated by the BMS indicating operative states of the components, and that employs the data samples to determine if one or more of the components are faulty. The AFD element includes a run time modeling element and a virtual datapoint creating element. The run time modeling element employs the data samples as inputs to execute one or more fault algorithms retrieved from a system configuration model, and generates outputs to the one or more fault algorithms that indicate if the one or more of the components are faulty. The virtual datapoint creating element estimates one or more synthesized datapoints that may be required by the one or more fault algorithms during execution by the run time modeling element.
First Claim
Other Claims data not available
