NON-PLUGGING D.C. PLASMA GUN
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 30, 2014
app pub date -
Jul 10, 2014
filing date -
Dec 15, 2009
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

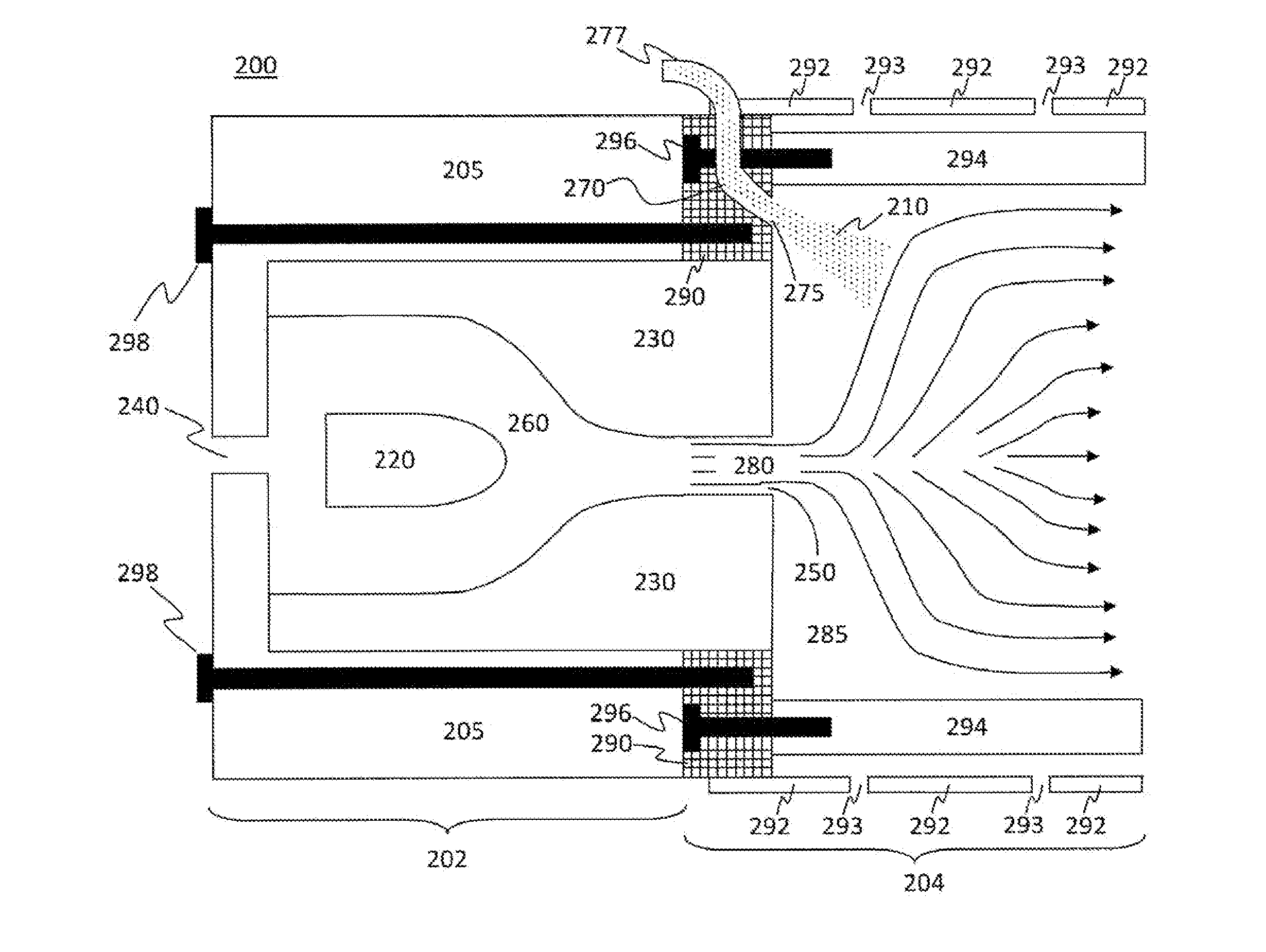

A plasma gun system comprising: a plasma gun comprising an outlet, wherein the plasma gun is configured to generate a plasma stream and provide the plasma stream to the outlet; and a plasma gun extension assembly configured to be coupled to the plasma gun, wherein the plasma gun extension assembly comprises an extension chamber and a port, the extension chamber having an interior diameter defined by a chamber wall and being configured to receive the plasma stream from the outlet of the plasma gun and to enable the plasma stream to expand upon entering the extension chamber, and the port being configured to introduce a powder to the expanded plasma stream at a location outside of the plasma gun.
First Claim
Other Claims data not available
