Thrust efficient turbofan engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 9, 2015
Issued Date -
N/A
app pub date -
Apr 26, 2013
filing date -
Mar 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

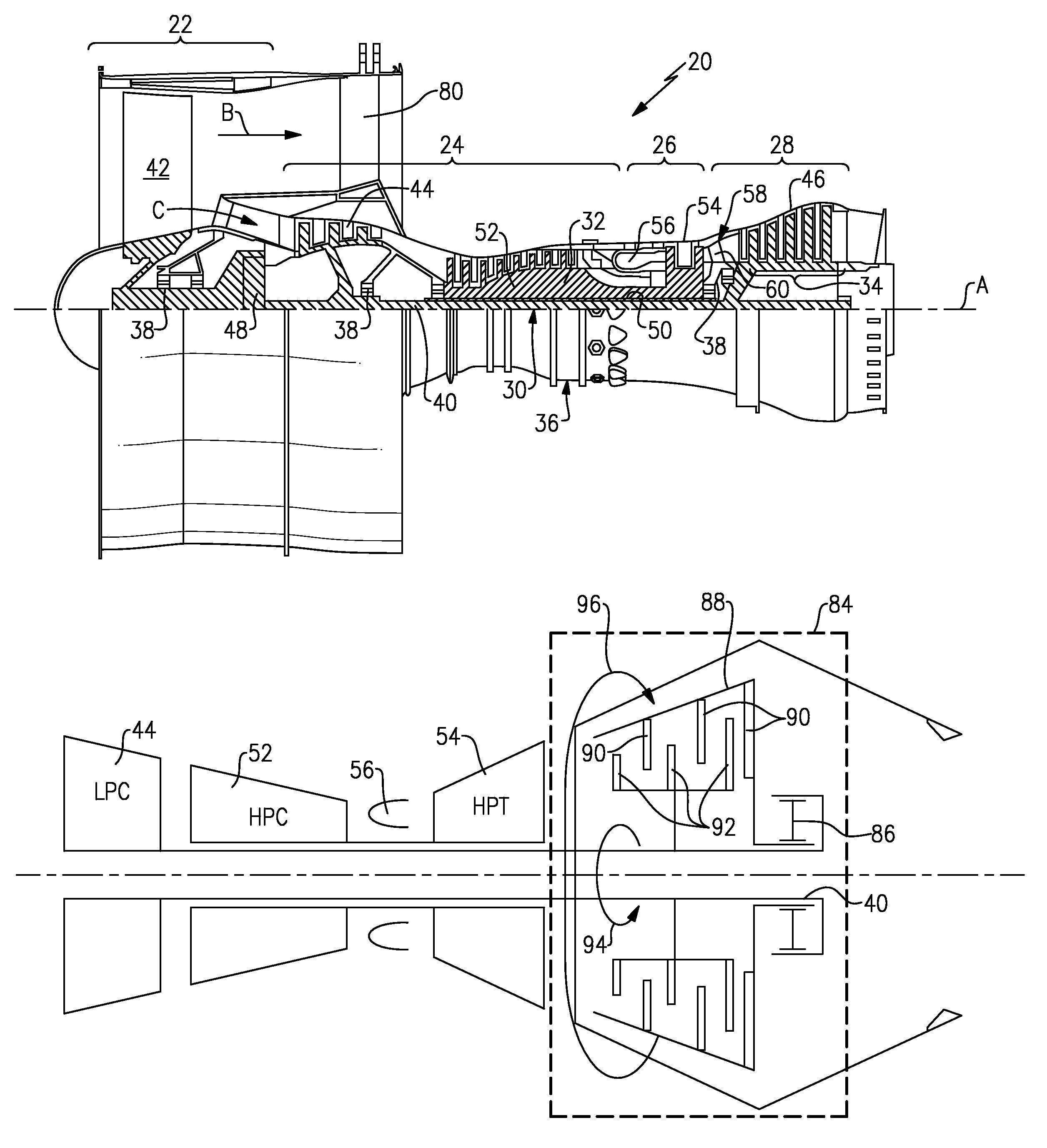

A turbofan engine according to an exemplary embodiment of this disclosure, among other possible things includes a gas generator section for generating a gas stream flow with higher energy per unit mass flow than that contained in ambient air, a power turbine converting the gas stream flow into shaft power, the power turbine rotating at a first relative rotational speed, a speed reduction device driven by the power turbine, and a propulsor section including a fan driven by the power turbine through the speed reduction device at a second speed lower than the first speed for generating propulsive thrust as a mass flow rate of air through a bypass flow path, wherein an Engine Unit Thrust Parameter (“EUTP”) defined as net engine thrust divided by a product of the mass flow rate of air through the bypass flow path, a tip diameter of the fan and the first relative rotational speed of the power turbine is less than about 0.15 at a take-off condition.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F02K Class
- 252 Applications Filed
- 226 Patents Issued To-Date
- 89.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F02K Class
- 10 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 9, 2026 |
