METHOD FOR MANUFACTURING LAMINATED IRON CORE AND SHAPE OF SCRAP PRODUCED THEREBY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 30, 2014
app pub date -
Nov 13, 2012
filing date -
Dec 5, 2011
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

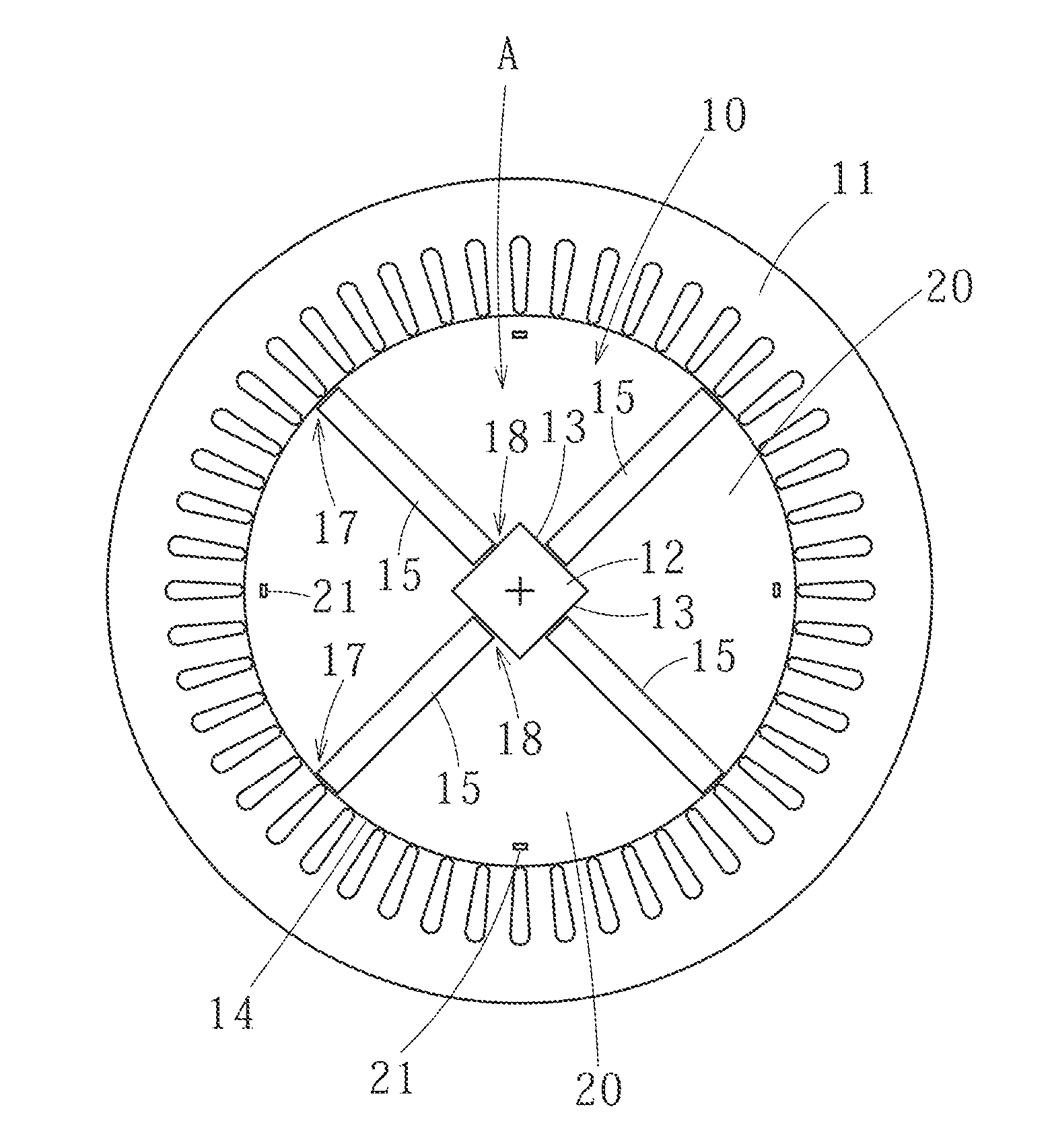

A method for manufacturing a laminated iron core by press punching a thin strip material to manufacture a motor core, comprising, before punching out a scrap 10 of an iron core piece 11 for the motor core, forming a plurality of partition holes 15 in the scrap 10 to divide the scrap 10 into areas 20, each of the partition holes 15 being connected at one end thereof with a peripheral portion 14 of the scrap 10 through a first connecting portion 17. The method further comprises forming a central hole 12, which is connected with the partition holes 15 through second connecting portions 18, at a central portion of the scrap 10. Accordingly, provided are the method for manufacturing a laminated iron core without causing scrap pulling when punching out and laminating the thin iron core pieces 11 and the shape of the scraps formed thereby.
