Abstract

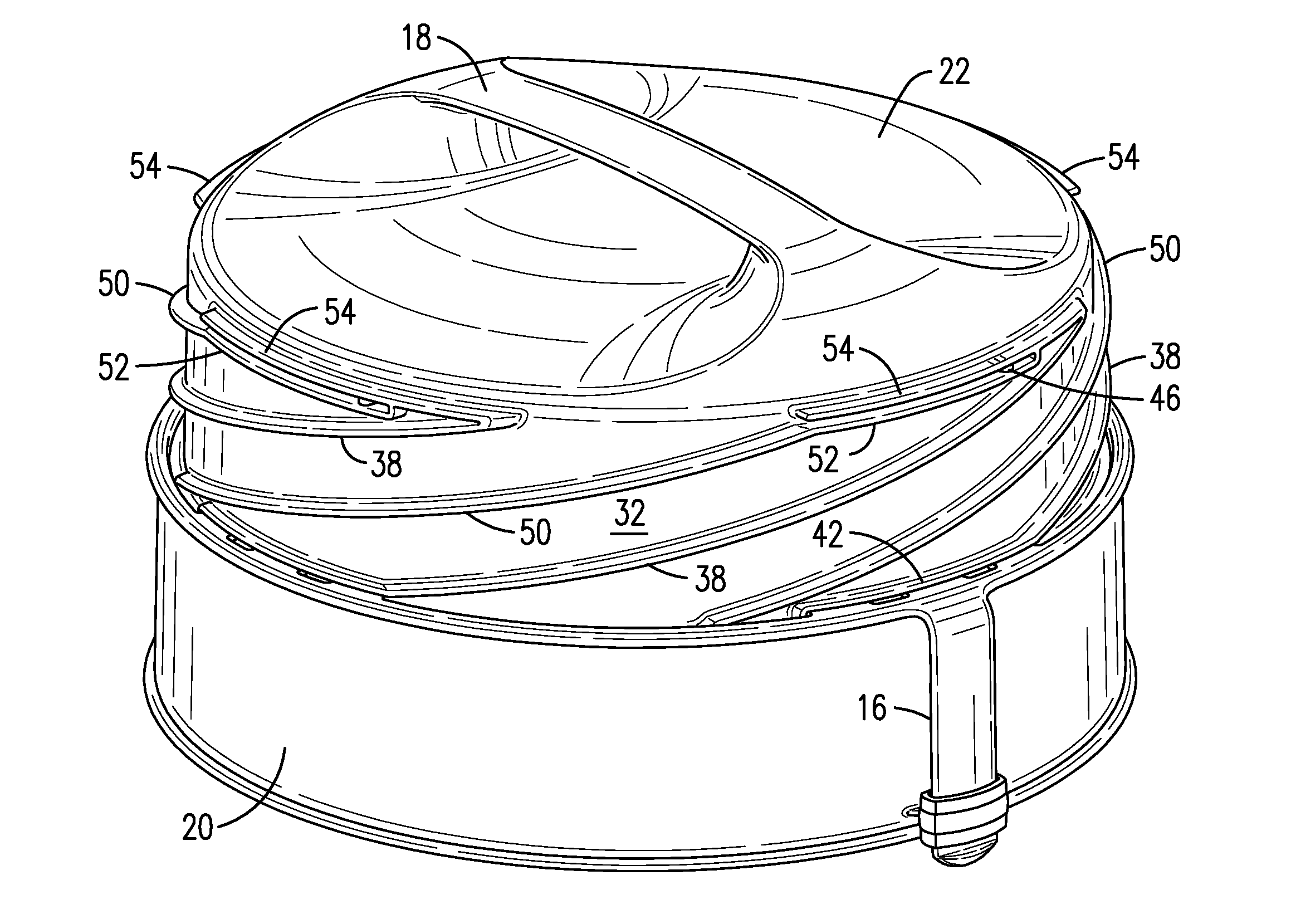

An expanding food storage container includes a base and a cover. The cover includes a support ring and a dome having a side wall closely received in the support ring. The support ring includes spaced tabs extending toward the side wall of the dome. The outer face of the dome sidewall includes a plurality of camming threads and support threads extending outward along helical paths. There is a pair of threads for each tab, with the threads spaced peripherally to closely receive the associated tab therebetween. Rotation of the dome with respect to the support ring causes the threads to ride up or down the tabs, raising or lowering the dome with respect to the support ring. The upper and lower ends of the threads include a horizontal slot which closely receives the associated tab. The tab includes a depression near its end which receives a lock button extending outward from the dome sidewall within the slot. The lock button may be selectively received within the depression to selectively secure the dome in the expanded or collapsed position.

Loading the Abstract Image...

First Claim
