Crimper System
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 16, 2014
app pub date -
Jun 27, 2014
filing date -
Dec 31, 2011
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

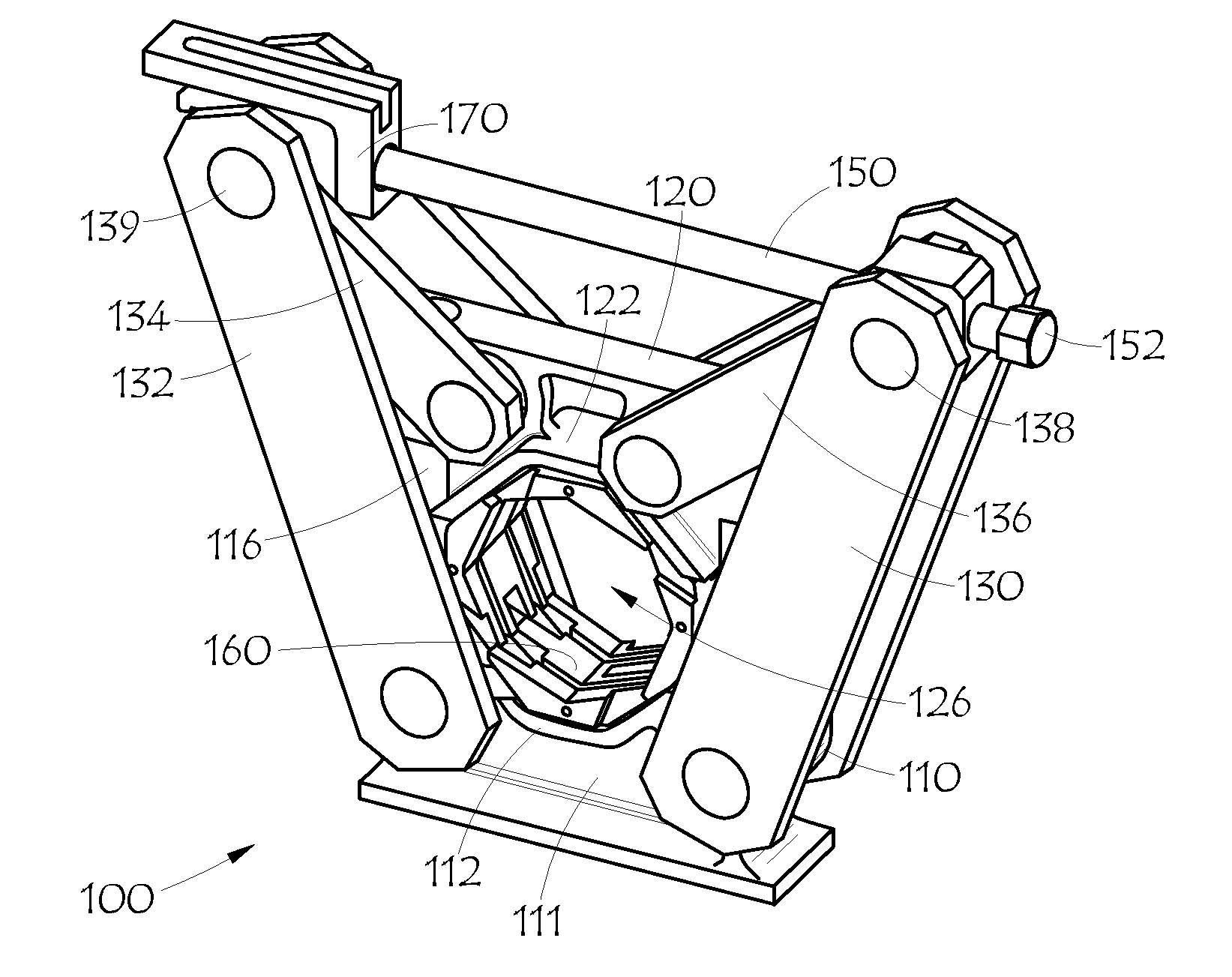

A crimper system having a slide frame with a base and a movable head slidably mounted on the slide frame, with a crimp zone opening defined between the base and head, including a dual compound leverage mechanism having two tension arms with lower ends pivotably attached to the base; two compression arms with lower ends pivotably attached to the movable head; and the upper end of each tension arm pivotably attached to the upper end of a corresponding one of the compression arms forming two elbow joints defining acute angles between each tension arm and its corresponding compression arm; a screw drive mechanism; and a stepped crimp-setting mechanism. Also provided is a tool, system and method for quick, easy removal, installation and storage of multiple-die, crimper die sets. The system includes a set of interconnected dies. The tool engages the connectors for pulling the die set out of a crimper.
First Claim
Other Claims data not available
