Drive shaft assembly for a downhole motor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 2, 2016
Grant Date -
Oct 9, 2014
app pub date -
Nov 15, 2013
filing date -
Apr 9, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

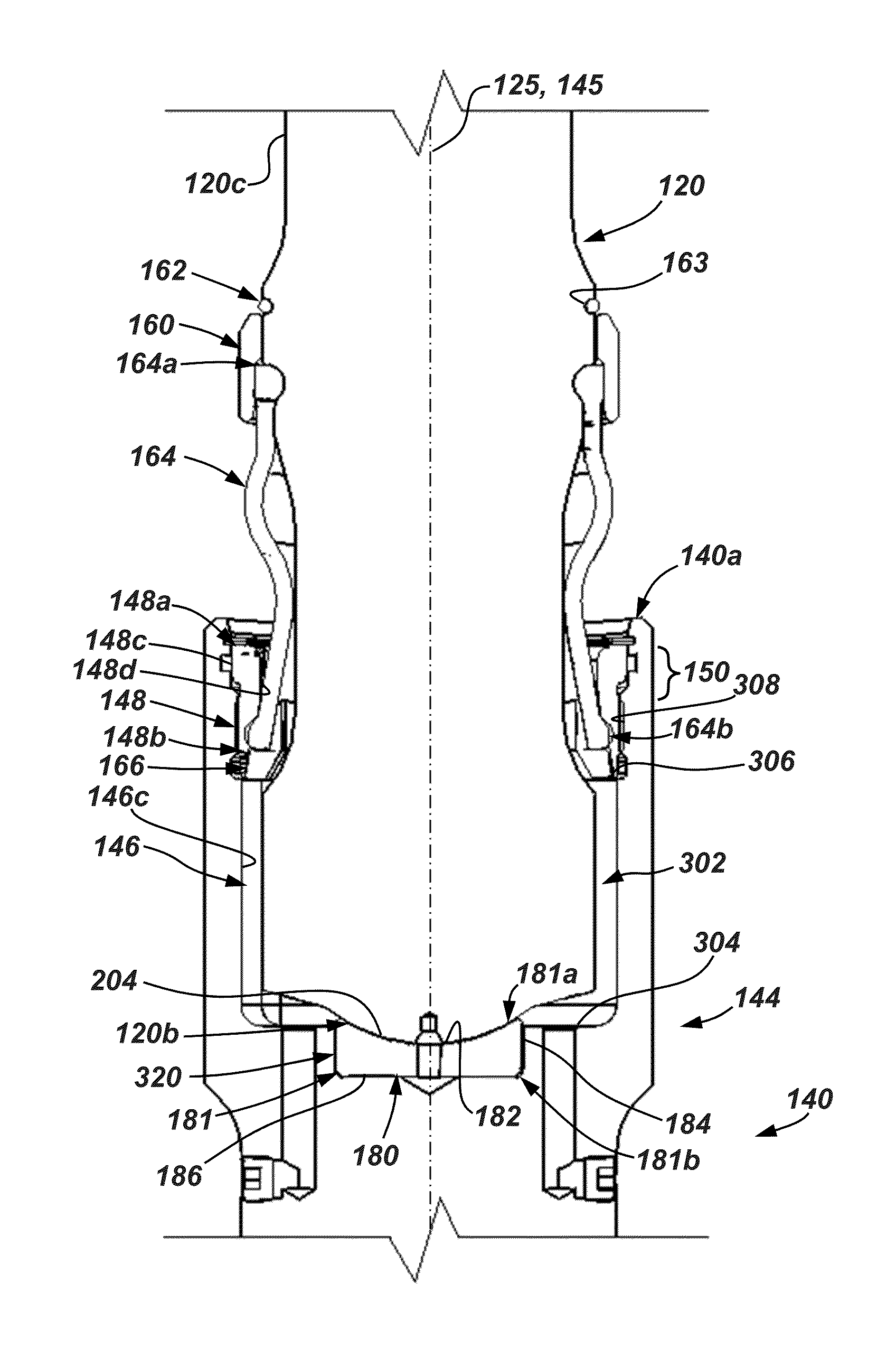

A driveshaft assembly for a downhole motor including a driveshaft having a longitudinal axis, first and second ends, and a convex spherical bearing surface disposed at the first end configured to transfer axial loads. The assembly also includes a connection lug disposed at the driveshaft first end, extending circumferentially between first and second ends, and including a recess in the first end of the lug, the recess comprising a concave cylindrical surface concentrically disposed about a pivot axis oriented orthogonal to the longitudinal axis. The assembly also includes a torque transfer key disposed within the recess and having a central axis radially spaced from the pivot axis, a convex cylindrical surface concentrically disposed about the pivot axis, and a planar surface. The convex cylindrical surface of the key slidingly engages the concave cylindrical surface of the recess; and the pivot axis intersects the key.
