HIGH RESOLUTION SINGLE PHOTON EMISSION COMPUTED TOMOGRAPHY (SPECT) SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 2, 2014
app pub date -
Mar 31, 2014
filing date -
Jun 4, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

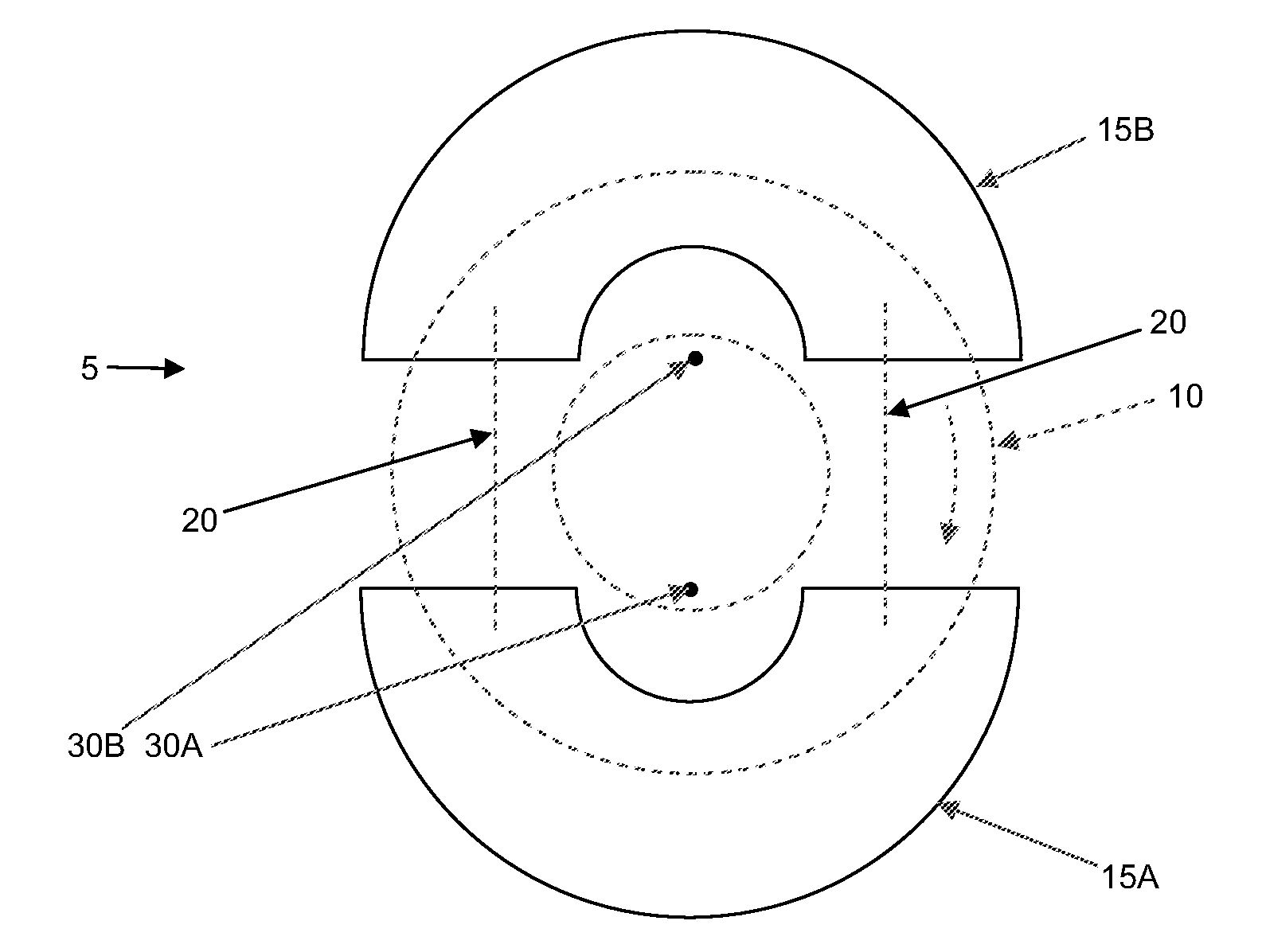

A high resolution single photon emission computed tomography (SPECT) imaging system comprising:
- a rotating ring for surrounding anatomy which is to be imaged;at least one camera mount movably mounted to the rotating ring so that the camera mount can be moved radially relative to the axis of rotation of the rotating ring; andat least one gamma camera carried on the at least one camera mount, wherein the at least one gamma camera is focused on a single SPECT focal point;whereby, when the rotating ring is rotated about the anatomy which is to be imaged and the at least one camera mount is moved radially on the rotating ring, the single SPECT focal point of the at least one gamma camera carried by a camera mount follows a spiral pattern through the anatomy, whereby to produce a scan of the anatomy.
First Claim
Other Claims data not available
