Wi-Fi/BPL Dual Mode Repeaters for Power Line Networks
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 25, 2014
app pub date -
Jun 4, 2014
filing date -
Dec 24, 2003
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

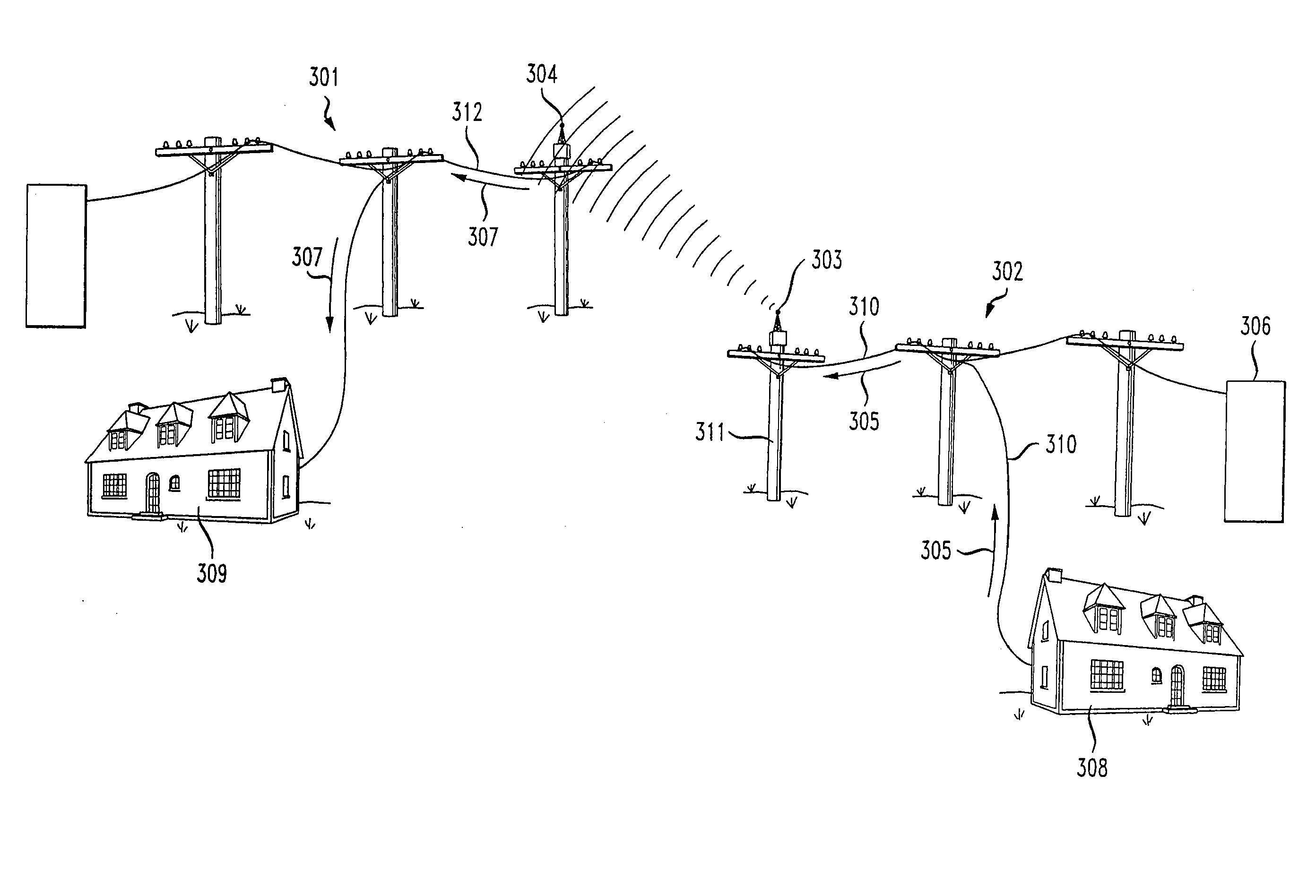

A method and apparatus for maintaining network connectivity over power lines is disclosed. Such network connectivity is maintained even if various customers are covered by different power line networks or if one or more power lines in a network are unavailable to transmit data. More particularly, in order to bridge a gap in a power line network, one or more messages are extracted from a first node in a power line network and are then transmitted to a second node via free space transmission, illustratively wireless radio frequency (RF) transmission conforming to one or more of the 802.11a, b or g standards. When those messages are received at the second node, the message is injected back into the power line on the other side of a gap in power line coverage. This method of transmission backup will continue until power line connectivity is restore upon which the preferred method will be selected and used.
First Claim
Other Claims data not available
