POSITIVE LOCKING CONNECTOR COUPLING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 18, 2014
app pub date -
Mar 14, 2014
filing date -
Mar 15, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

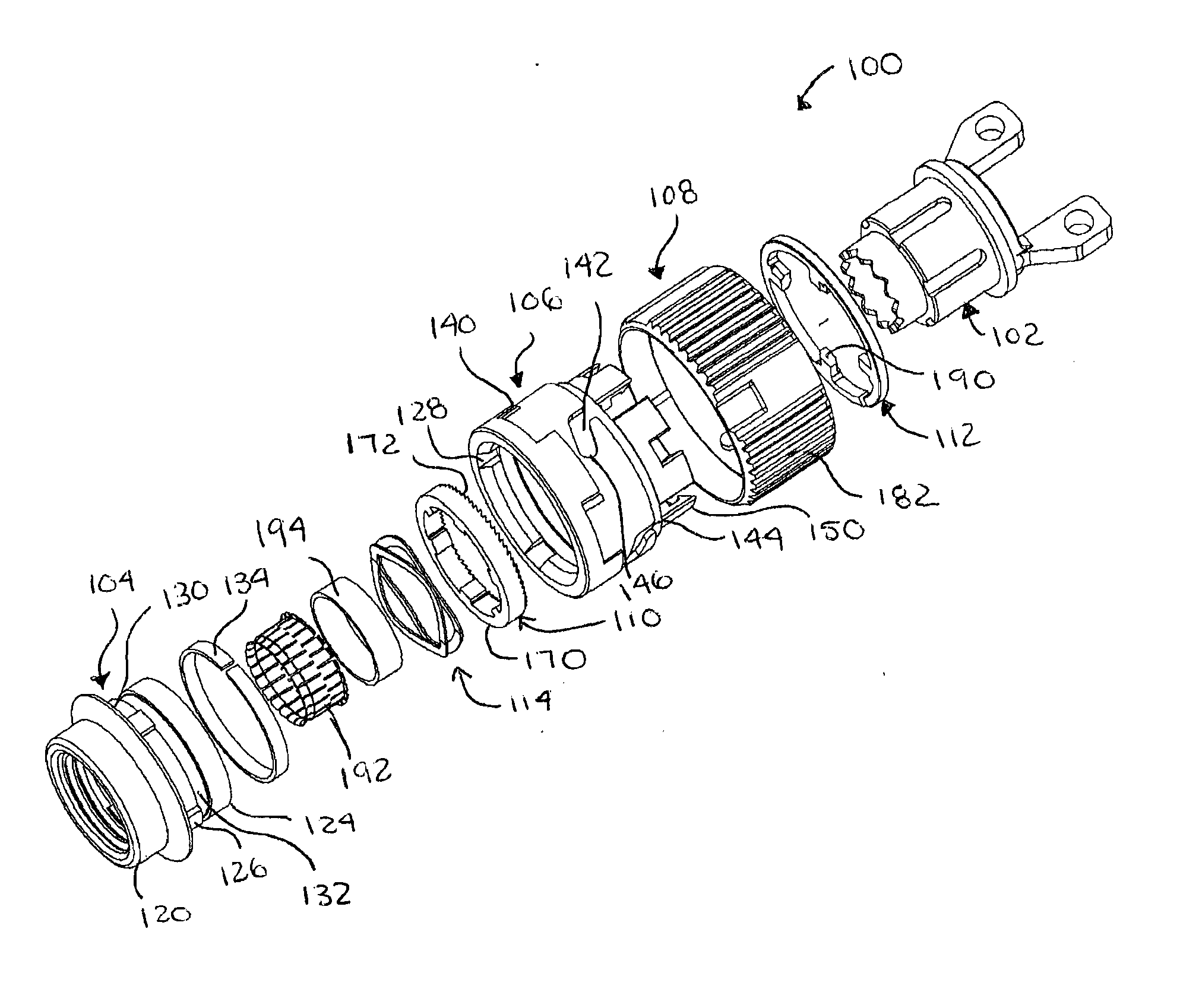

A coupling that includes, a connector body, an interface coupling, a first collar coupled to the interface coupling that has a main body with an inner retaining member including a first set of teeth and a first engagement member, a second collar surrounding the first collar that has at least one second engagement member and is movable axially between a disengaged position when the first and second engagement members arc disengaged and an engaged position when the first and second engagement members are engaged, and a ratchet ring that is received inside of the first collar, that has a second set of teeth, and that is axially moveable with respect to the connector body between a locked position when the first and second sets of teeth are engaged and an unlocked position when the first and second sets of teeth are spaced from one another.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| IL | A0 | IL231455 | Mar 11, 2014 |
| EP | A1 | EP2863487 | Mar 11, 2014 |
| CA | A1 | CA2846495 | Mar 12, 2014 |
| JP | A | JP2014199811 | Mar 14, 2014 |
| BR | A2 | BR102014006318 | Mar 17, 2014 |
International Classification(s)
- 2014 Application Filing Year
- H01R Class
- 2939 Applications Filed
- 2751 Patents Issued To-Date
- 93.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01R Class
- 7.51 % this patent is cited more than
- 11 Age
