ACTIVE LUMPED ELEMENT CIRCULATOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 18, 2014
app pub date -
Mar 7, 2014
filing date -
Mar 15, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

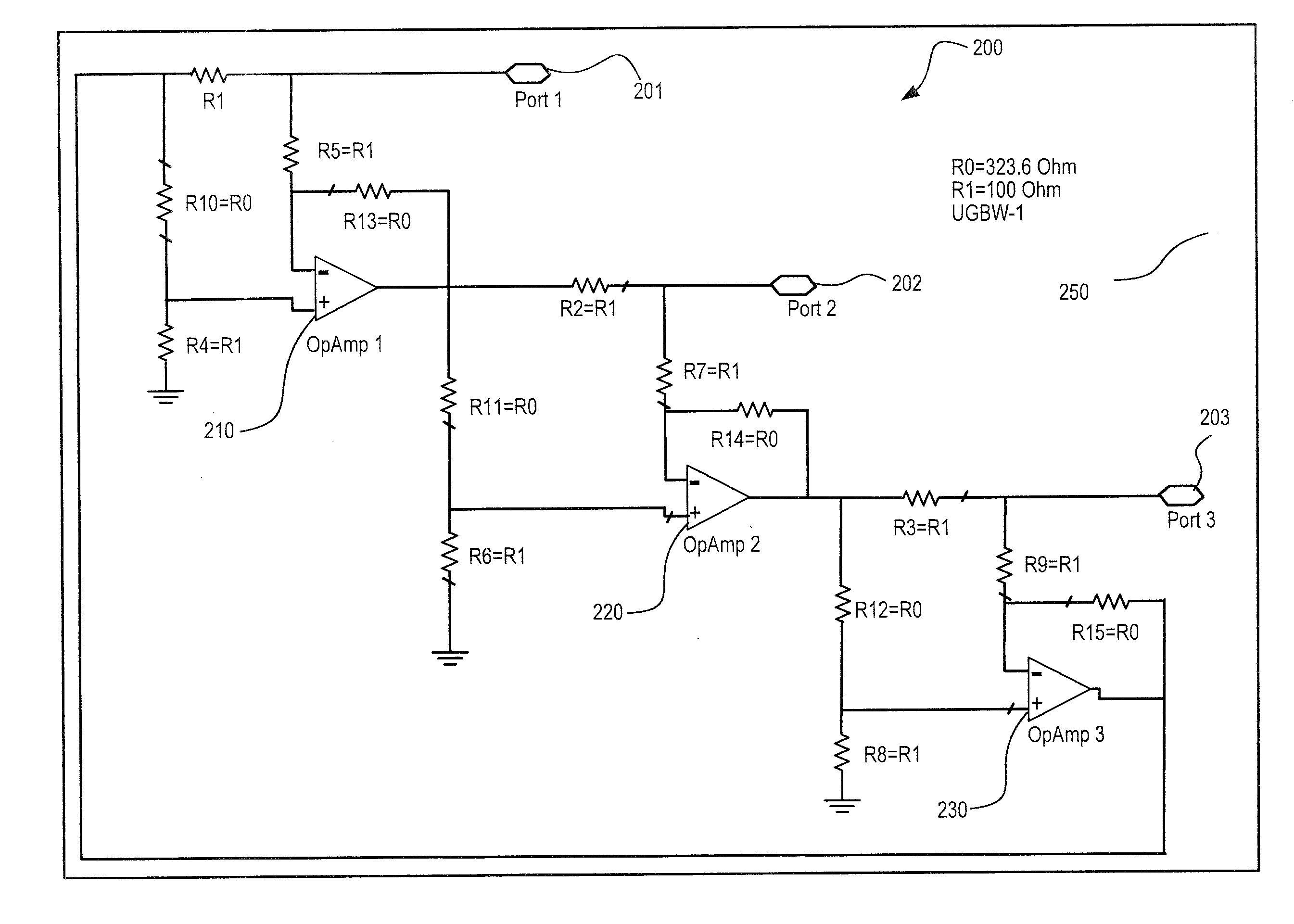

An integrated circuit can comprise: a first port, a second port, and a third port; and a plurality of microwave operational amplifiers coupled to each other and the first port, the second port, and the third port. The plurality of microwave operational amplifiers can be arranged to substantially pass a signal provided to the first port to the second port while substantially isolating the signal provided to the first port from the third port; the plurality of microwave operational amplifiers can be arranged to substantially pass a signal provided to the second port to the third port while substantially isolating the signal provided to the second port from the first port; and the plurality of microwave operational amplifiers can be arranged to substantially pass a signal provided to the third port to the first port while substantially isolating the signal provided to the third port from the second port.
First Claim
Other Claims data not available
