IRRIGATION SYSTEM WITH FREEZE PROTECTION AND METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 18, 2014
app pub date -
Mar 12, 2013
filing date -
Mar 12, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

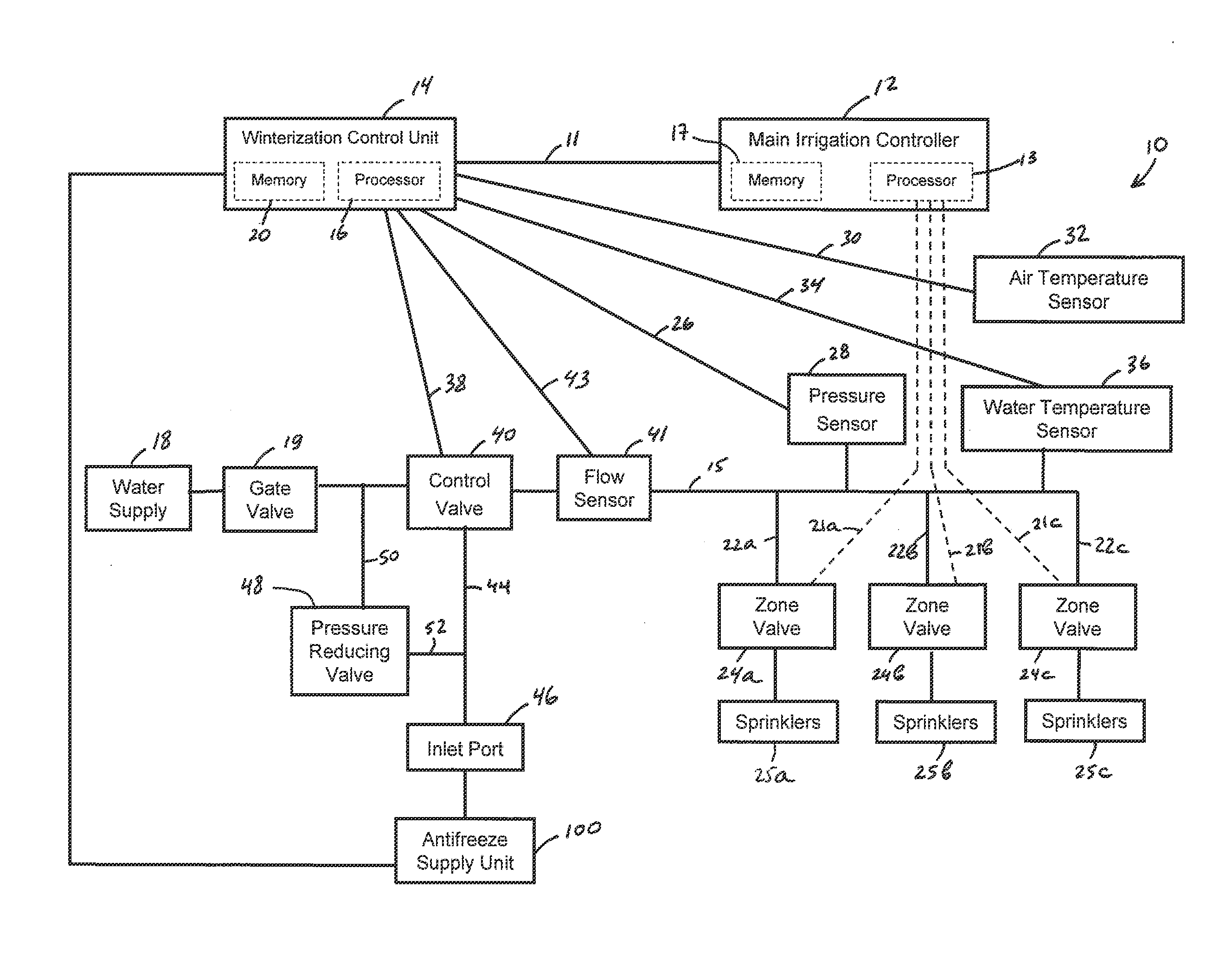

Apparatus and method are provided herein for causing and controlling the injection of antifreeze material into a water line of an irrigation system. The irrigation system comprises an antifreeze supply unit including an antifreeze storage container containing a liquid antifreeze coupled to a water line of the irrigation system. A control unit is coupled to the antifreeze supply unit. The control unit is configured to cause the antifreeze supply unit to inject at least some of the liquid antifreeze from the antifreeze storage container into the water line. The control unit can cause the antifreeze supply unit to inject the liquid antifreeze from the antifreeze storage container in response to temperature data received from a sensor unit or in response to user input at the control unit.
First Claim
Other Claims data not available
