BANDSAW CUTTING APPARTUS AND METHOD FOR CUTTING INGOT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 18, 2014
app pub date -
Oct 15, 2012
filing date -
Nov 24, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

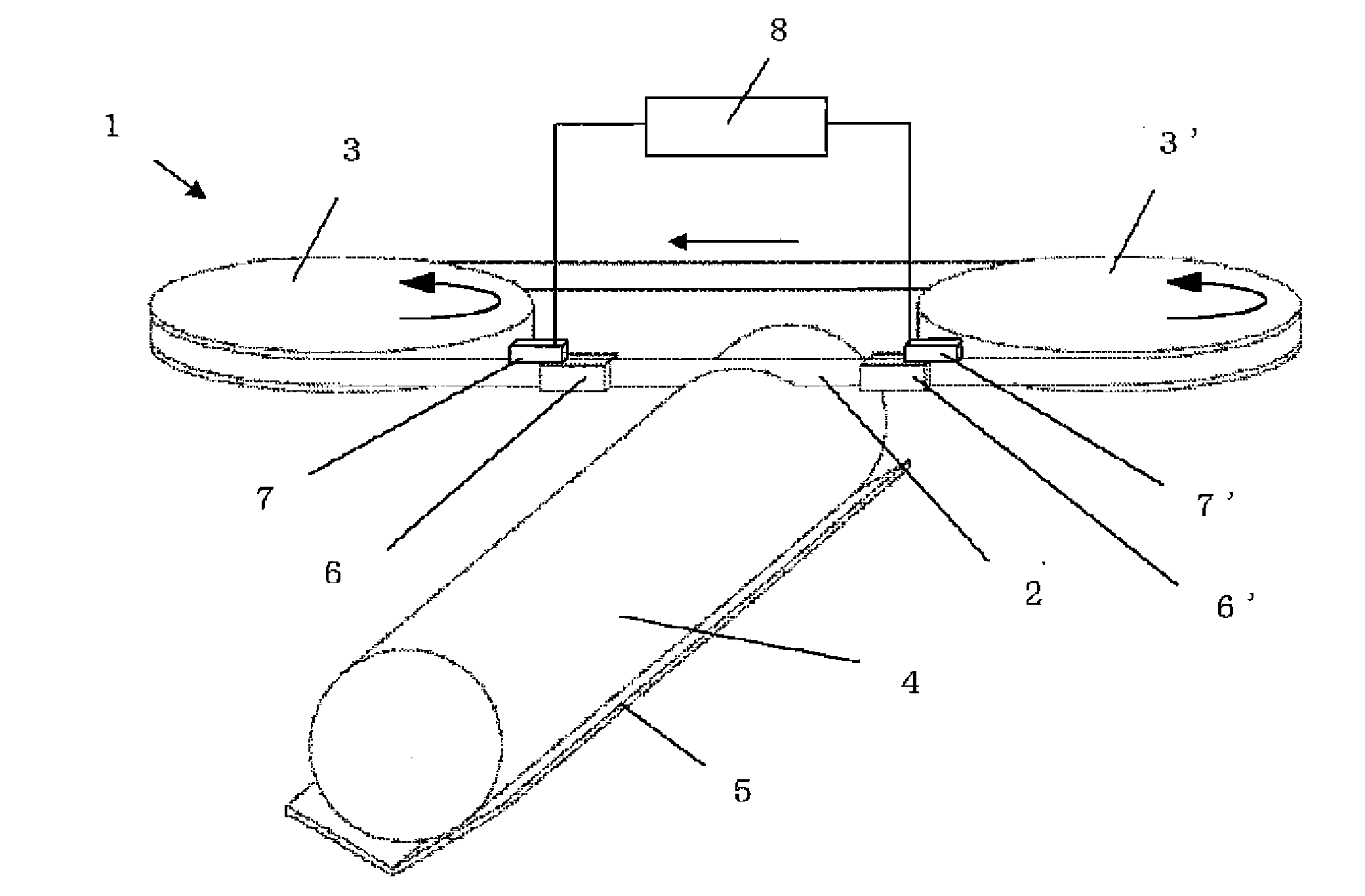

The present invention provides a bandsaw cutting apparatus including an actuator configured to move static pressure pads forward and backward in a rotating direction of a blade, and a controller configured to control a movement distance and a movement speed of the static pressure pads to be moved by the actuator, wherein the ingot is cut by feeding the blade relatively downward toward and below the ingot while a rotating blade is guided with static pressure pads, and the movement of the static pressure pads is controlled with the controller. The apparatus can stably suppress a displacement of the blade during cutting, thereby cutting the ingot into blocks or sample wafers for crystal quality evaluation stably with good quality cut surface at a higher cutting rate and extending the lifetime of the blade.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP5660013 | Nov 24, 2011 |
| KR | A | KR20140094548 | Oct 15, 2012 |
| WO | A1 | WO2013076905 | Oct 15, 2012 |
International Classification(s)
- 2012 Application Filing Year
- B28D Class
- 93 Applications Filed
- 77 Patents Issued To-Date
- 82.80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B28D Class
- 13.51 % this patent is cited more than
- 11 Age
