Road/rail vehicle with tractive weight control
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 28, 2019
Grant Date -
Sep 18, 2014
app pub date -
Mar 14, 2013
filing date -
Mar 14, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

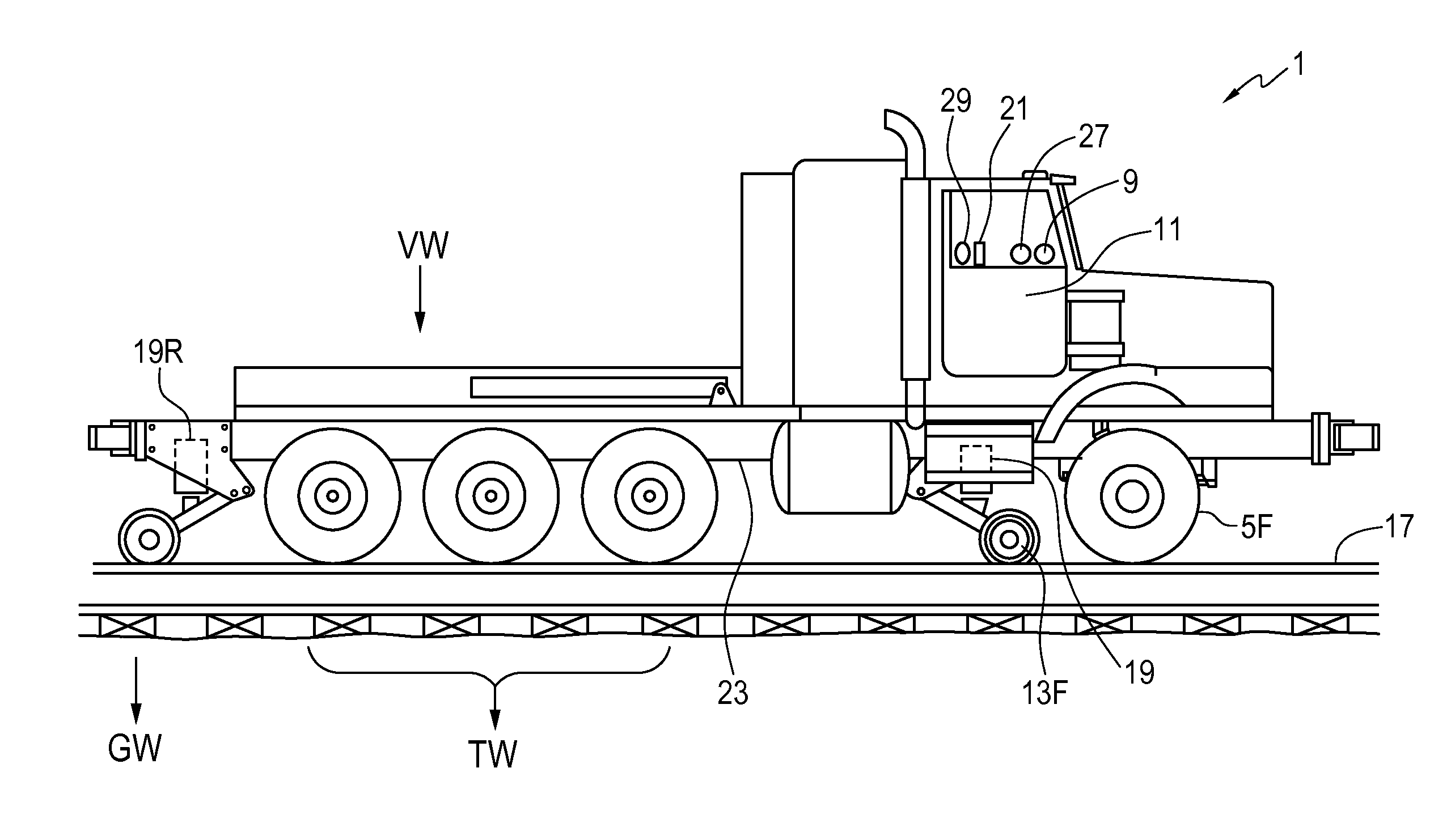

A road/rail vehicle has front and rear road wheels, an engine driving the rear road wheels, and an indicator of actual vehicle speed. Retractable front and rear rail wheels are mounted on the vehicle and movable from a raised road position for operation in a road mode to a lowered rail position where the rail wheels engage rails of a railroad track for operation in a rail mode. A suspension system is adjustable in the rail mode to vary a weight proportion of vehicle weight that is a tractive weight carried by the rear road wheels and a guidance weight carried by the rear rail wheels, and a suspension control is adjusts the suspension system to provide a selected weight proportion. A maximum allowable vehicle speed decreases as the tractive weight increases and a maximum speed indicator shows the maximum allowable vehicle speed for the selected weight proportion.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B60F Class
- 33 Applications Filed
- 27 Patents Issued To-Date
- 81.82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60F Class
- 53.33 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 28, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 28, 2030 |
