Tufting method and brushroll for vacuum cleaner
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 4, 2017
Issued Date -
N/A
app pub date -
Mar 13, 2014
filing date -
Mar 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

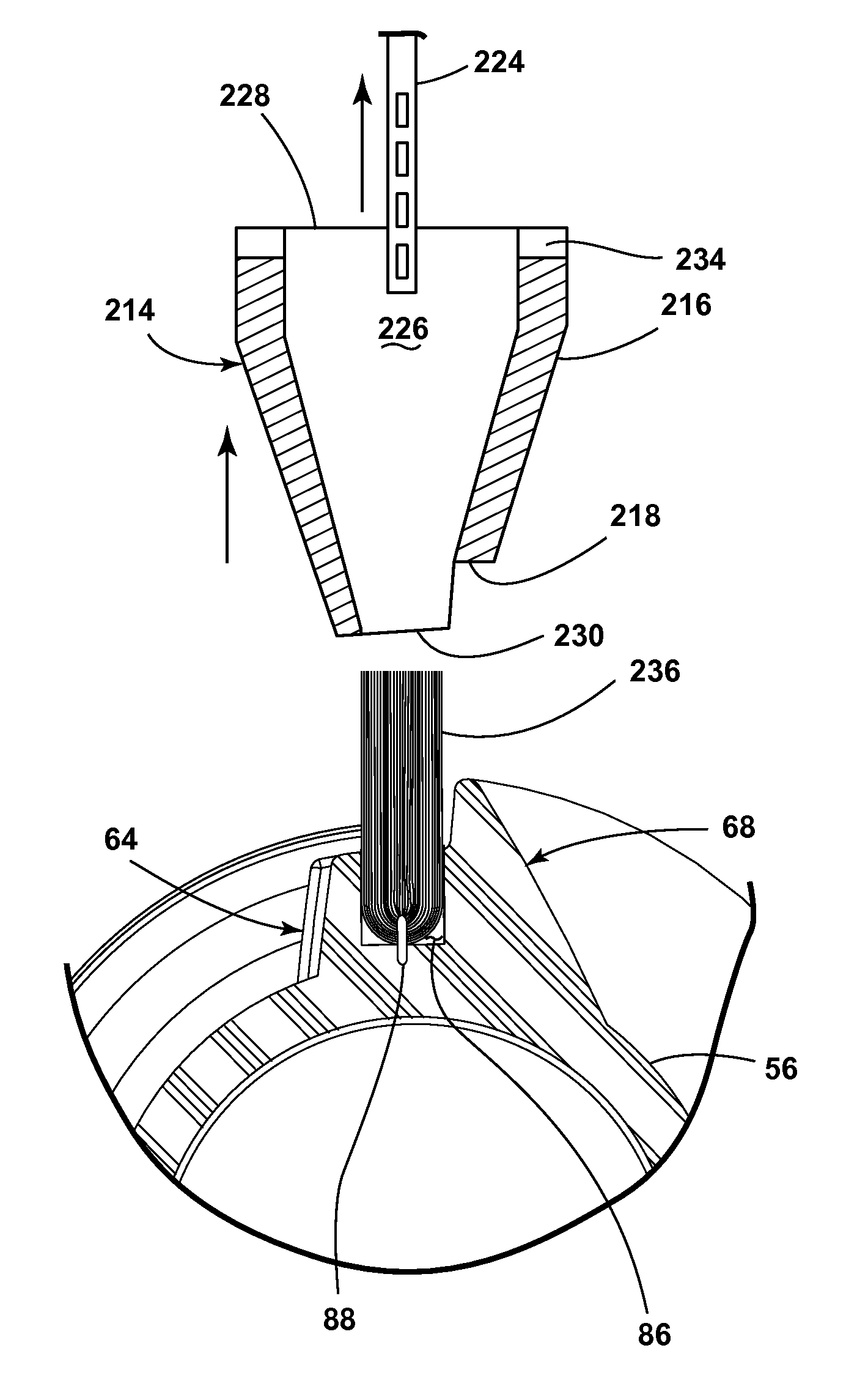

A method of tufting, with a tufting tool, a brushroll dowel for a vacuum cleaner having a bristle stiffener protruding from the dowel and a bristle hole adjacent the bristle stiffener. The tufting tool includes a notch. The method provides a brushroll with bristles tufted into the bristle hole adjacent the bristle stiffener. A brushroll for a vacuum cleaner can be made using an injection molding process, with bristle stiffeners integrally molded with the dowel and a plurality of stiffened bristles protruding from the brush dowel adjacent to the bristle stiffeners.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2014 Application Filing Year
- A46B Class
- 359 Applications Filed
- 312 Patents Issued To-Date
- 86.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- A46B Class
- 17.83 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 4, 2029 |
