REDUCING HIGH-FREQUENCY NOISE IN PULSE-SKIPPING MODE OF A VOLTAGE REGULATOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 21, 2013
filing date -
Mar 7, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

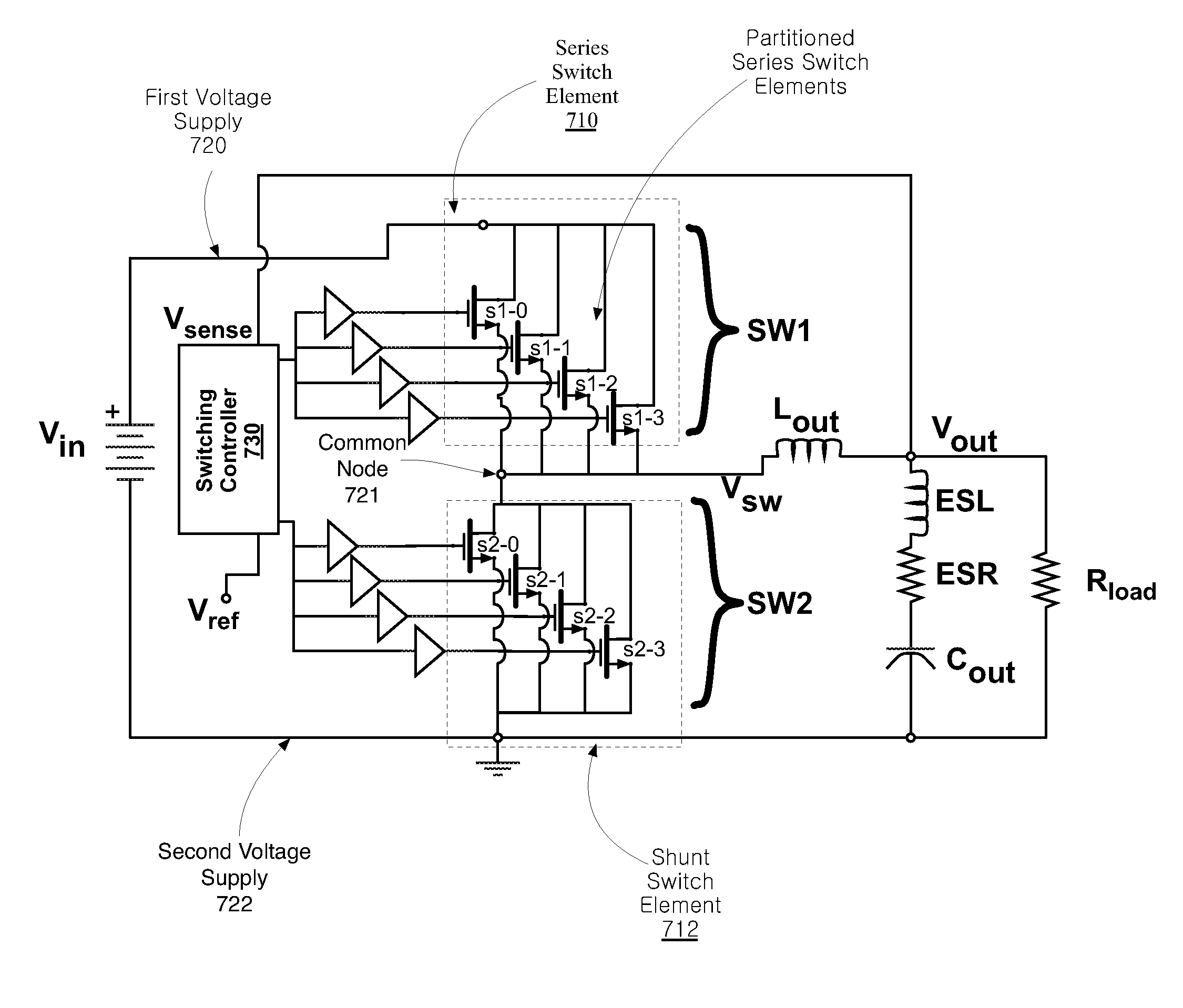

Embodiments of systems, methods and apparatuses of a voltage regulator are disclosed. One apparatus of the voltage regulator includes a series switch element, wherein the series switch element comprises a plurality of partitioned series switch elements, a shunt switch element, and a switching controller. The switching controller is operative to control the series switch element and the shunt switch element in an idle state, wherein none of the plurality of partitioned series switch elements are active, control the series switch element and the shunt switch element in a burst state, wherein N of the plurality of partitioned series switch elements are active, and control the series switch element and the shunt switch element in a transition state, wherein M of the plurality of partitioned series switch elements are active, and wherein M is less than N.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H02M Class
- 7.32 % this patent is cited more than
- 11 Age
