US Patent Application No: 2014/0251,694

Directional Boring Tooling Reed Type Checkflow Valve

---

Abstract

---

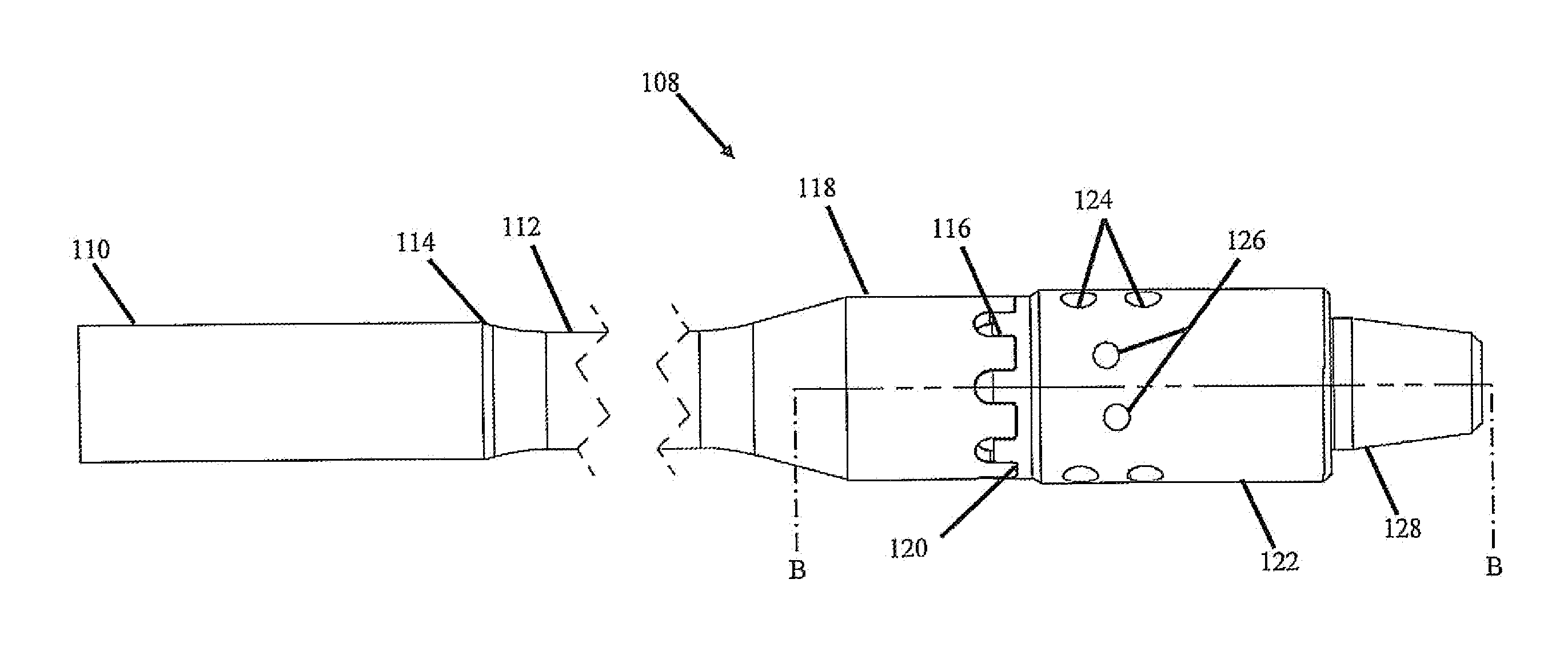

A pipe joint used in horizontal direction drilling operations having a removable valve assembly secured between the pin of a first member and the socket of a second member. The valve assembly reduces backflow of drilling fluid uphole of the downhole tool and reduces the risk of malfunction due to clogging of tooling.

---



---
