Methods of Treating Metal Surfaces and Devices Formed Thereby
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 16, 2014
filing date -
Jul 6, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

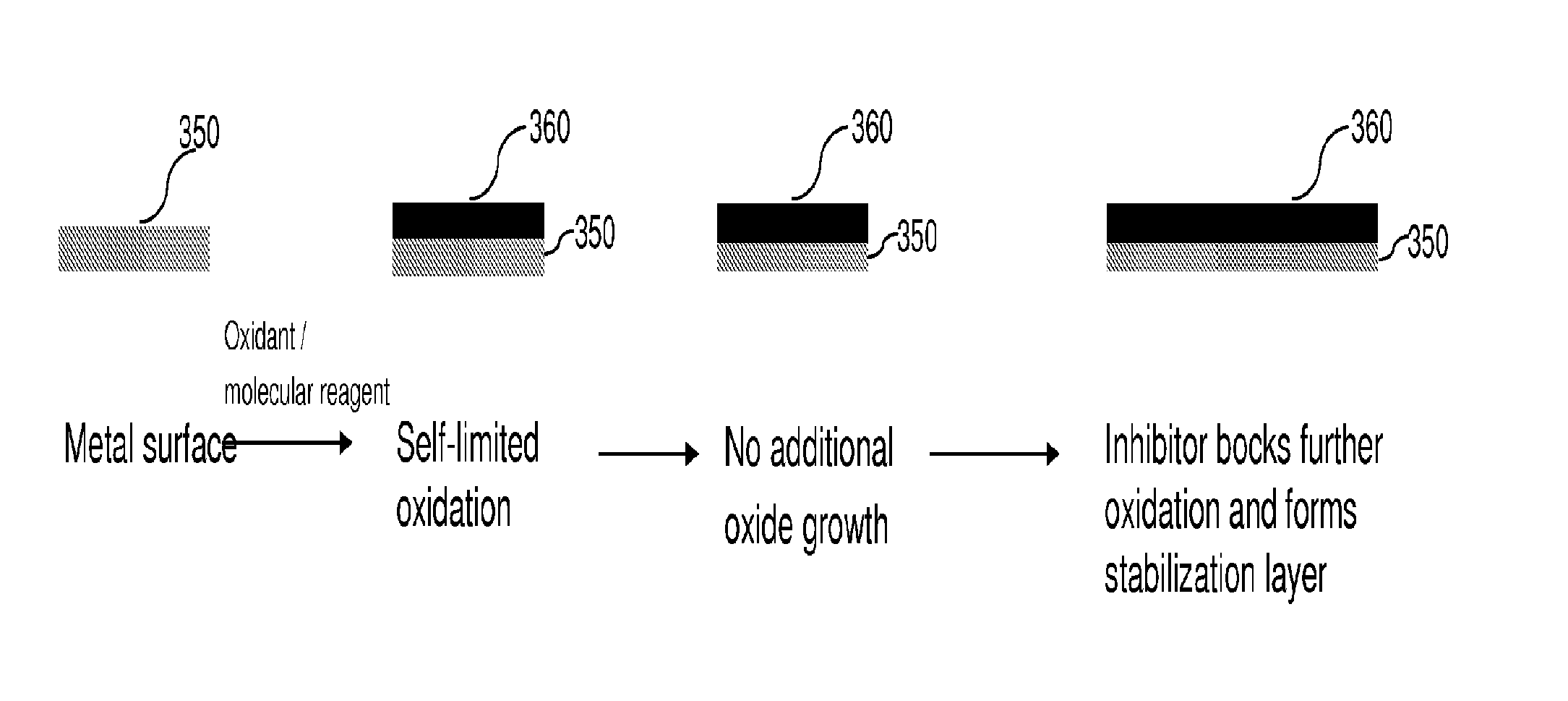

Embodiments of the present invention relate generally to methods of treating metal surfaces to enhance adhesion or binding to substrates, and devices formed thereby. In some embodiments of the present invention, methods of achieving improved bonding strength without roughening the topography of a metal surface are provided. The metal surface obtained by this method provides strong bonding to resin layers. The bonding interface between the treated metal and the resin layer exhibits resistance to heat, moisture, and chemicals involved in post-lamination process steps, and therefore can suitably be used in the production of PCB's. Methods according to some embodiments of the present invention are especially useful in the fabrication of high density multilayer PCB's, in particular for PCB's having circuits with line/spacing of equal to and less than 10 microns. Methods according to other embodiments of the present invention are particularly useful in the coating of metal surfaces in a wide variety of applications.
First Claim
Other Claims data not available
