CO2 RECOVERY APPARATUS AND CO2 RECOVERY METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 4, 2014
app pub date -
Sep 10, 2012
filing date -
Sep 13, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

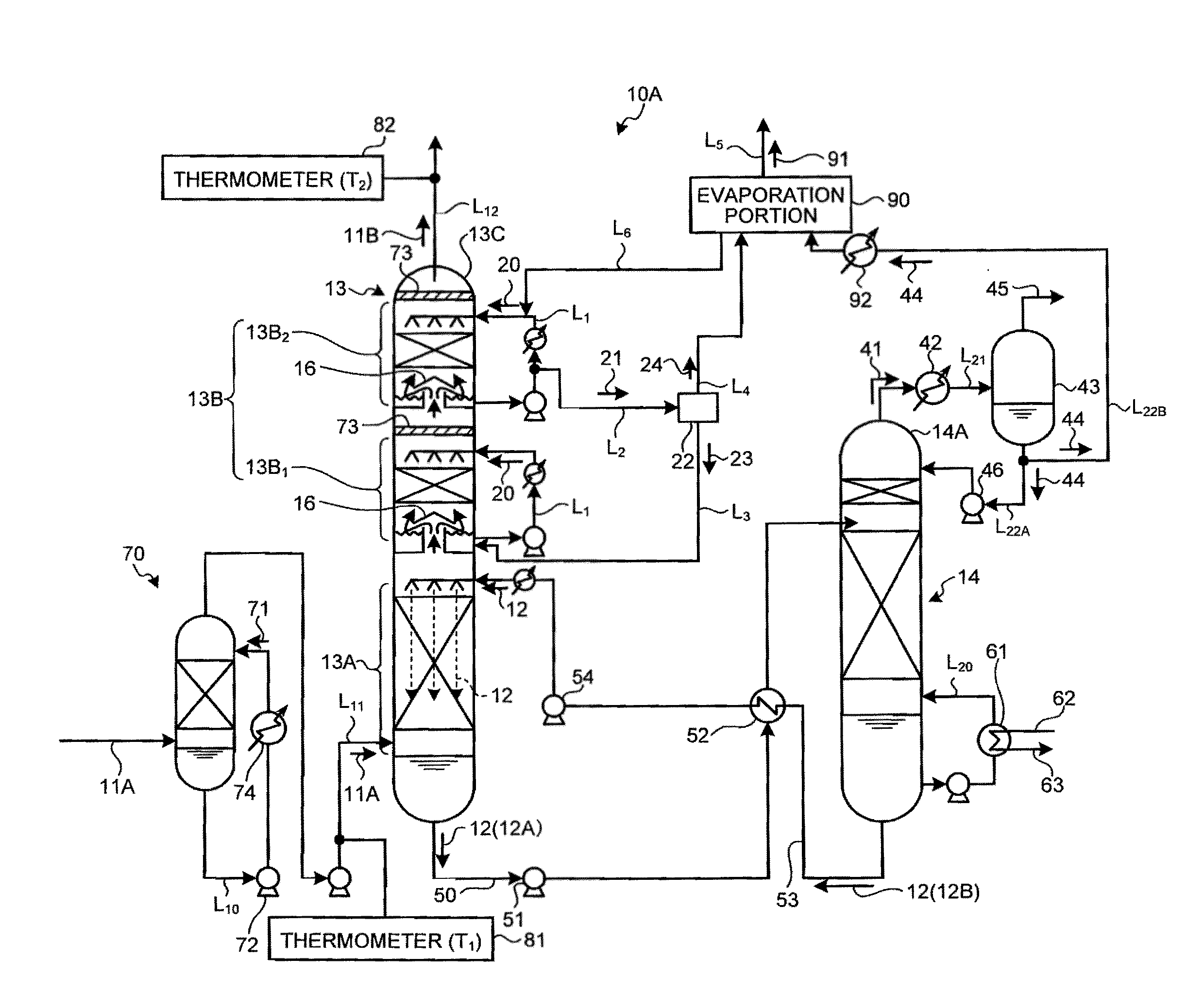

A CO2 recovery apparatus provided with a CO2 absorption tower for making a purified exhaust gas and an absorbing liquid regeneration tower for regenerating a CO2 absorbing liquid by separating CO2 from the CO2 absorbing liquid, in which a lean solution removed of CO2 in the absorbing liquid regeneration tower is reused in the CO2 absorption tower, a cooling tower for cooling the CO2-containing exhaust gas containing CO2 is provided on the upstream flow side of the CO2 absorption tower so as to set a temperature (T2) of the purified exhaust gas exhausted from the CO2 absorption tower lower than a temperature (T1) of the CO2-containing exhaust gas containing CO2 cooled in the cooling tower (T1>T2), and a condensed water made by condensing water vapor discharged from the absorbing liquid regeneration tower is evaporated in an evaporation portion.
First Claim
Other Claims data not available
