RECEIVER FOR A SOLAR THERMAL INSTALLATION AND SOLAR THERMAL INSTALLATION THAT INCLUDES SAID RECEIVER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 28, 2012
filing date -
Jul 5, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

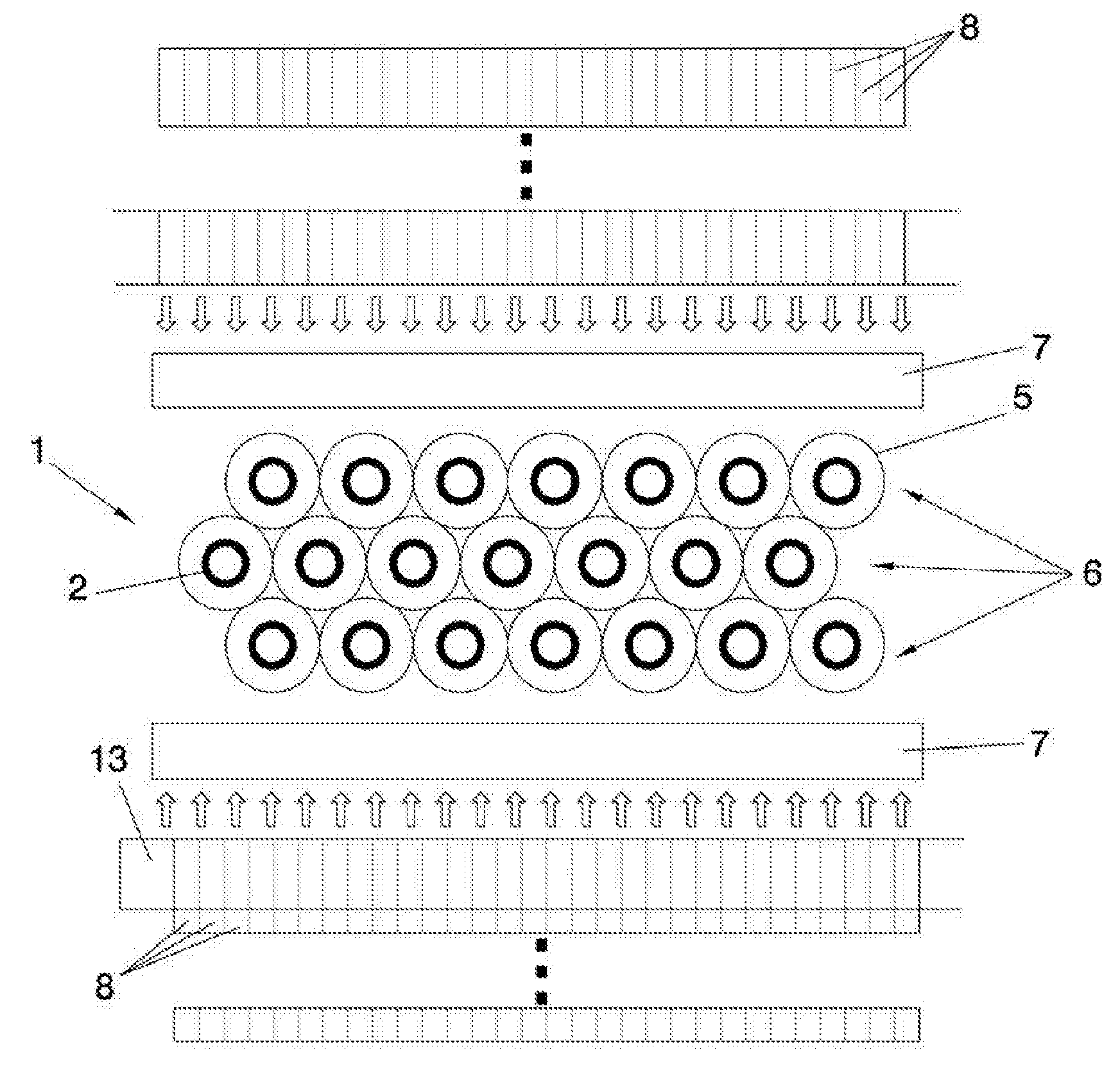

A solar receiver having a higher yield than a central tower receiver. The receiver comprises a plurality of absorbent tubes for absorbing incident energy from light guides suitable for capturing solar radiation in solar collector concentration focal points, the absorbent tubes being arranged consecutively and in parallel, adjacently in relation to a direction transverse to the longitudinal axis of the absorbent tubes. The tubes contain a circulating heat-transfer fluid. The longitudinal axes are contained in at least two planes, defining at least two lines of absorbent tubes arranged in an alternating manner, and partially superimposed. The receiver also comprises containers subjected to a vacuum in order to enclose the absorbent tubes and reduce losses by convection.
First Claim
Other Claims data not available
