Variable Capacity Compressor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 21, 2014
app pub date -
Aug 14, 2012
filing date -
Sep 22, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

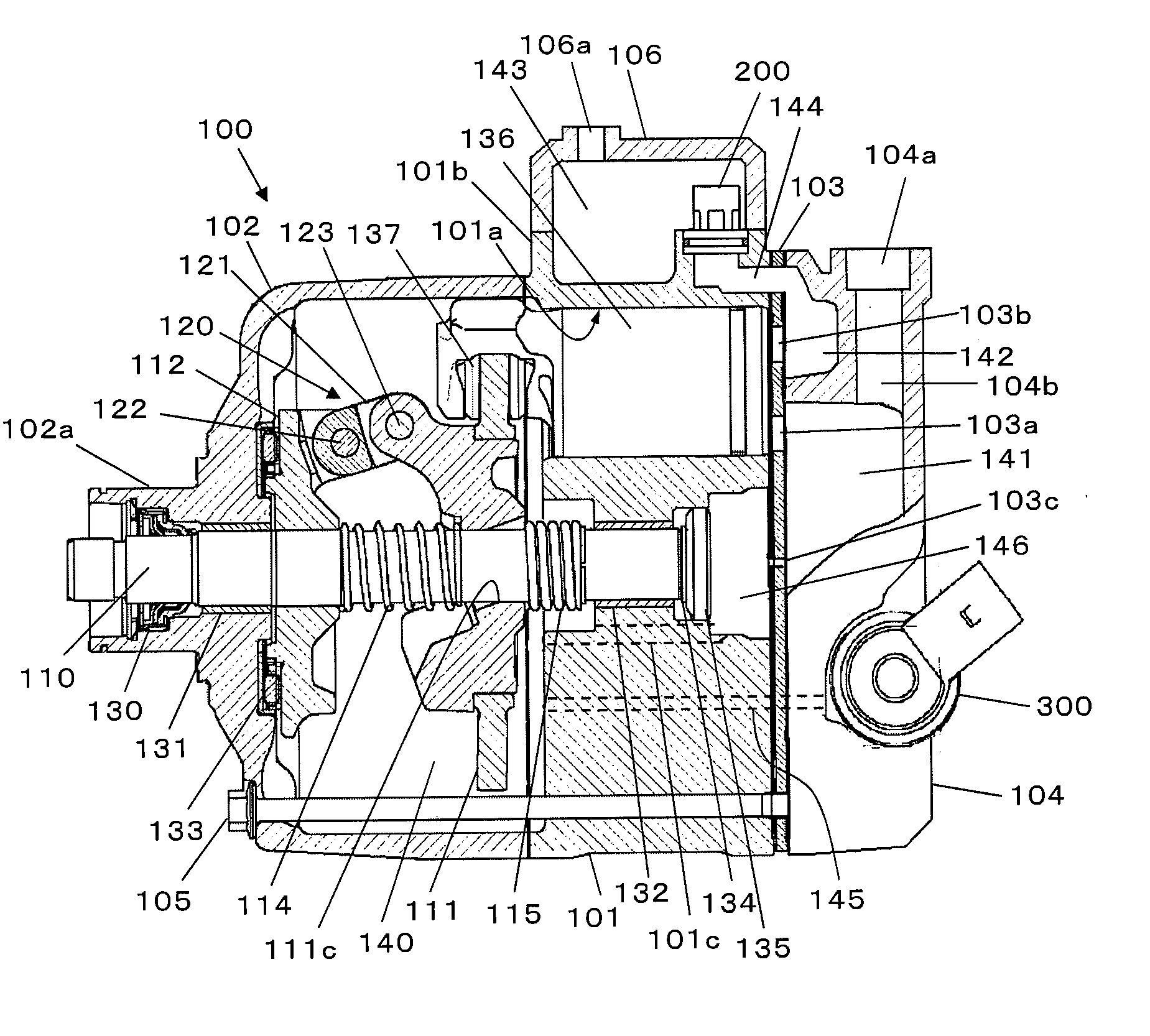

A variable capacity compressor including swash plate connected to rotor via link mechanism can calculate a moment of rotational motion acting on swash plate and set the total moment of rotational motion in inclination angle increasing direction acting on swash plate at minimum inclination angle to a small value. The shape or the like of swash plate 111 or the like are set so that moment MRX+MS becomes a moment which orients swash plate in inclination angle increasing direction in a range from θmin (0°) to θb and becomes a moment which orients swash plate in inclination angle decreasing direction in a range from an inclination angle exceeding θb to θmax. The moment acting in inclination angle increasing direction of swash plate by setting the shape or the like of link arm 121 or the like is determined by calculating the sum of moment components.
First Claim
Other Claims data not available
