ROTARY BRAIDING MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 14, 2014
app pub date -
Aug 8, 2012
filing date -
Sep 6, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

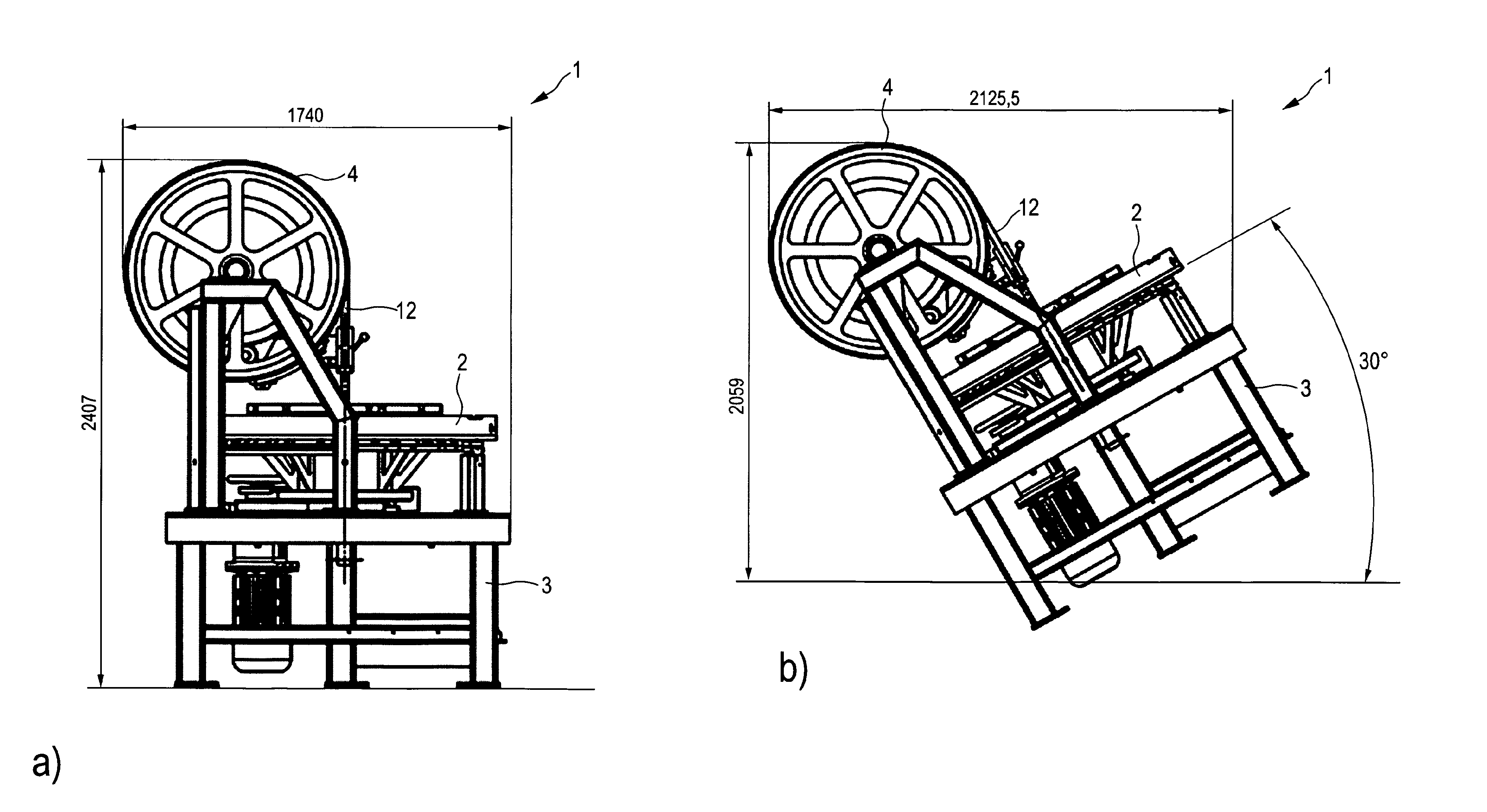

A rotary braiding machine, in particular for producing wire mesh, includes a plurality of braiding spools, a braiding rotor, a braiding head, a draw-off disk, a machine frame. The braiding rotor rotates about an axis which coincides or nearly coincides with the draw-off direction of the braiding material. The draw-off direction of the braiding material runs obliquely in space, i.e. neither horizontally nor vertically. In this manner, advantages of the conventional horizontal and vertical design of such a rotary braiding machine are combined such that only one product variant must be produced and distributed.
First Claim
Other Claims data not available
