ELECTRIC IMPEDANCE TOMOGRAPHY DEVICE AND METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 7, 2014
app pub date -
Jul 16, 2013
filing date -
Feb 5, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

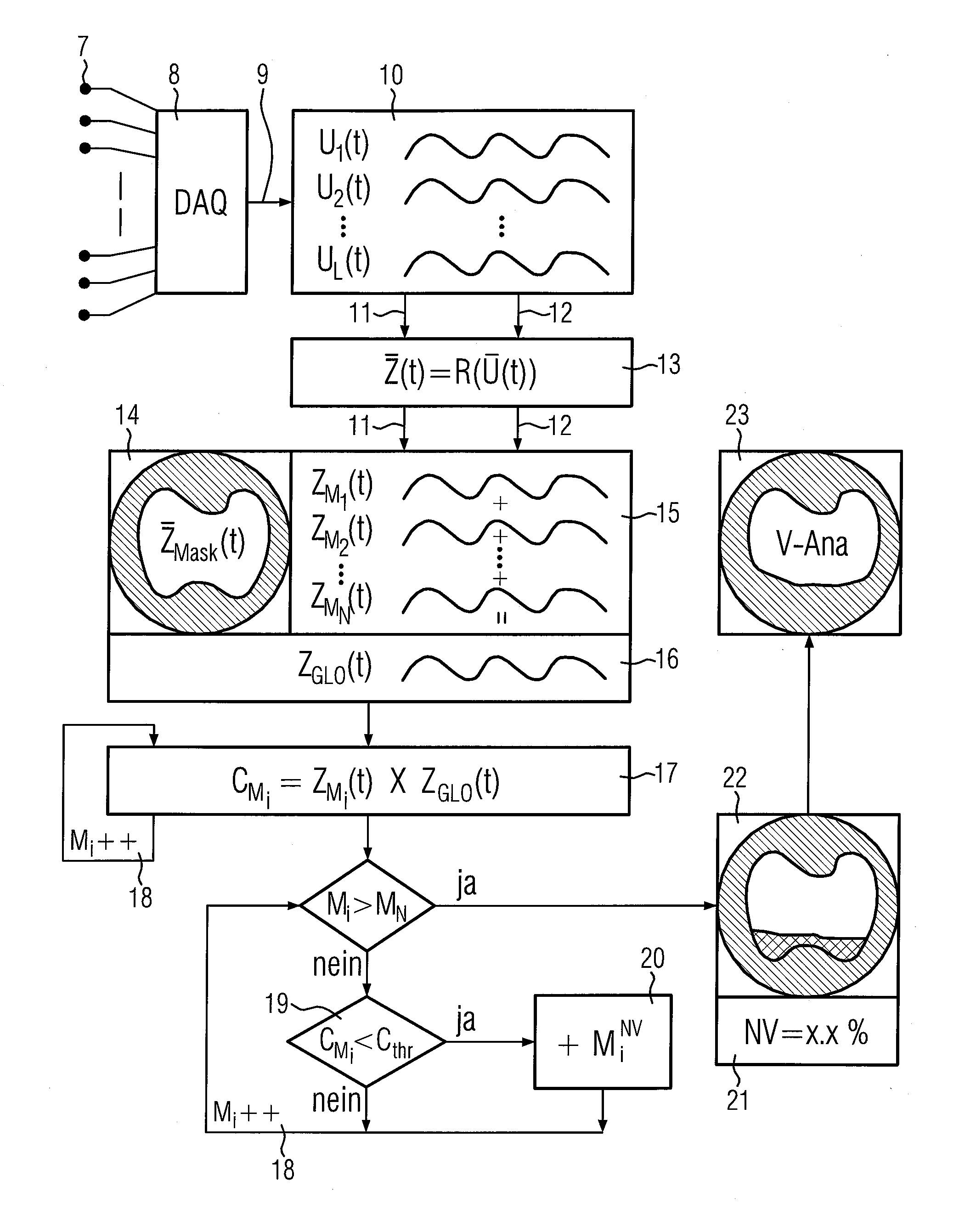

An EIT device with a plurality of electrodes, which can be arranged about the chest of a patient, with a control and analyzing unit for feeding electrode pairs of a set of electrodes to record a voltage or current signal as a measured signal with electrode pairs acting consecutively as the feeding electrode pair to provide a matrix of image elements. A time series of the impedance change from the sequence of reconstructed matrices over at least one breath is obtained and compared to a determined time series of the mean impedance change or a time series of a measured respiration volume, by calculating for each image element a scalar value as an indicator of a deviation. The control and analyzing unit assesses and marks the corresponding image element as being non-ventilated if the indicator of the deviation meets a preset threshold value criterion.
First Claim
Other Claims data not available
