GLASS FILM HAVING A DEFINED EDGE CONFIGURATION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 7, 2014
filing date -
Oct 7, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

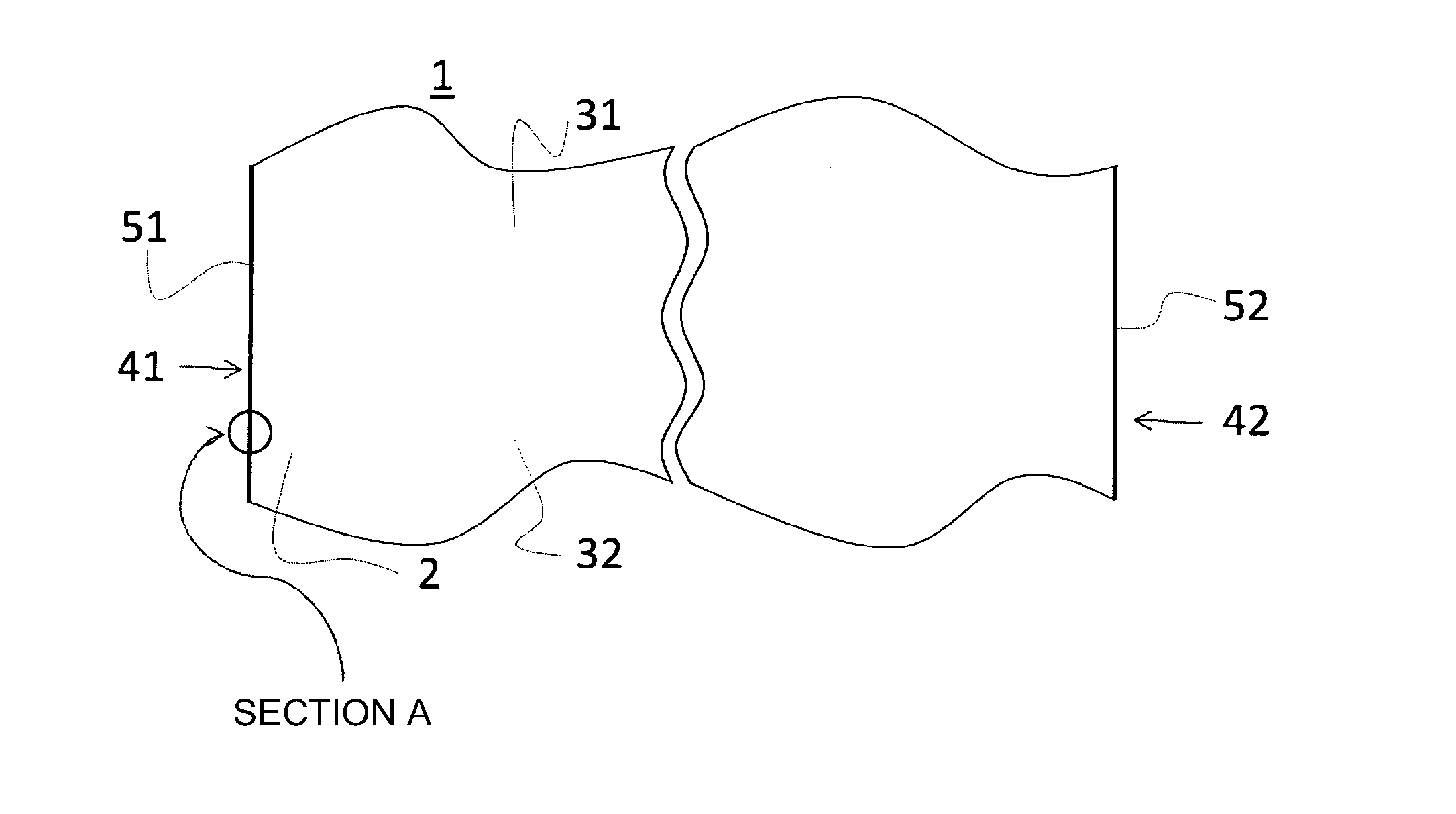

A glass film has a thickness of less than 1.2 mm, and a first and a second surface, both surfaces being defined by edges having an edge surface. The respective edge surfaces are provided with a microstructure surface, including micro-cracks and fissures which are laterally defined by flanks. At least two edges located opposite one another include a low viscosity adhesive having a viscosity of less than 600 mPas at 23° C., on their microstructure surfaces in such a way that the respective flanks of the micro-cracks and fissures are bonded together using an adhesive so that the probability of failure of the glass film having a length of 1000 m and a thickness in the range of 5 μm to 350 μm, and a diameter of a wound glass film roll in the range of 50 mm to 1000 mm is less than 1%.
First Claim
