Ga2O3 SEMICONDUCTOR ELEMENT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 7, 2014
app pub date -
Sep 7, 2012
filing date -
Sep 8, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

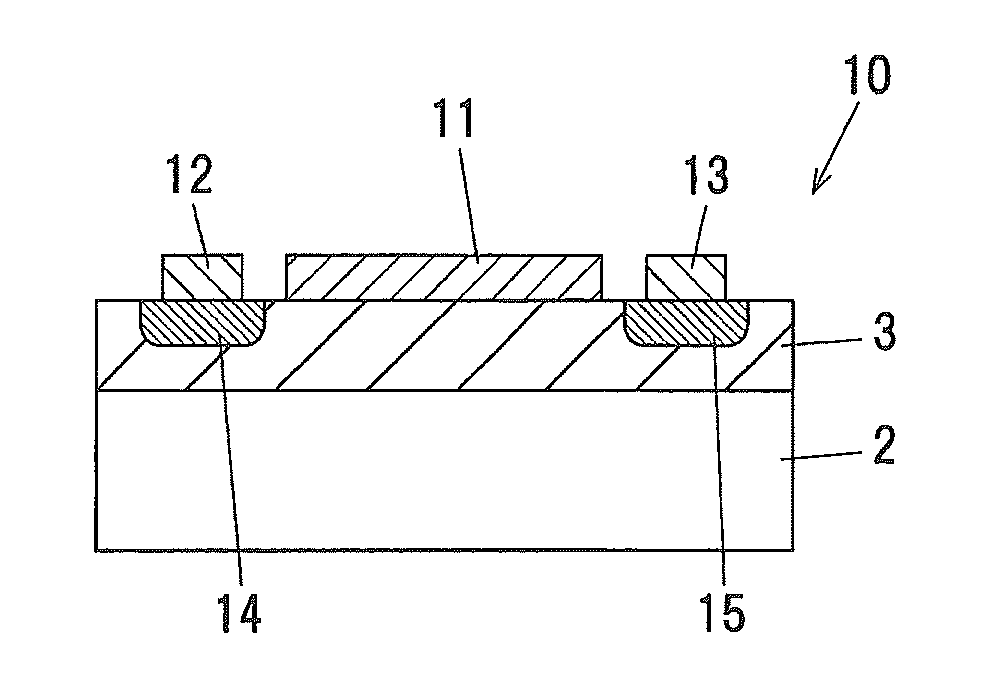

Provided is a high-quality Ga2O3 semiconductor element. Provided is, as one embodiment of the present invention, a Ga2O3 MESFET (10), which includes: an n-type α-(AlxGa1-x)2O3 single crystal film (3), which is formed on an α-Al2O3 substrate (2) directly or with other layer therebetween, and is composed of an α-(AlxGa1-x)2O3 single crystal (0≦x≦1); a source electrode (12) and a drain electrode (13), which are formed on the n-type α-(AlxGa1-x)2O3 single crystal film (3); and a gate electrode (11), which is formed on a region between the source electrode (12) and the drain electrode (13) on the n-type α-(AlxGa1-x)2O3 single crystal film (3).
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP5975466 | Sep 07, 2012 |
| WO | A1 | WO2013035844 | Sep 07, 2012 |
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- H01L Class
- 7.09 % this patent is cited more than
- 11 Age
