Cooling Arrangement For Cooling Weld Caps Having A Check Device And Method Of Monitoring
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 7, 2014
app pub date -
Feb 3, 2014
filing date -
Feb 5, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

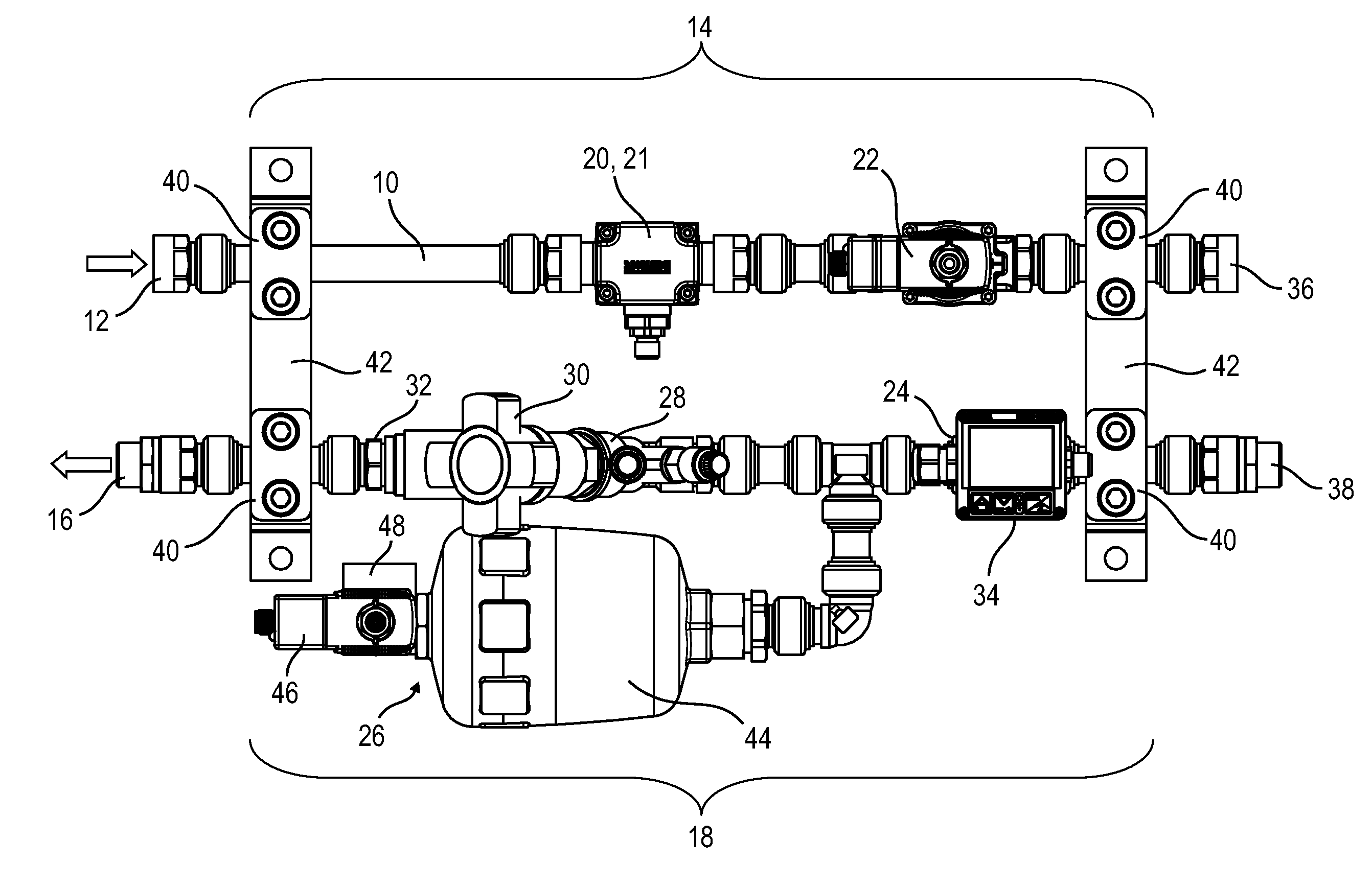

A cooling arrangement for cooling weld caps of a welding device includes a local cooling pipe having a feed portion through which coolant can flow to the weld caps, and a return portion through which coolant can flow away from the weld caps. The cooling arrangement has at least one sensor and at least one actuator arranged at the cooling pipe. A check device is connected to the sensor and the actuator. The check device is arranged in an immediate vicinity of the sensor and/or the actuator and/or the local cooling pipe, and is adapted to receive measured values of the sensor and to check, based on pre-established criteria, whether the measured values are within a predefined desired range. In response to a negative check result, the check device can drive the actuator in a predetermined manner such that the cooling arrangement is placed in a safe condition.
First Claim
Other Claims data not available
