BELT DRIVE SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 31, 2014
app pub date -
Jan 31, 2013
filing date -
Jan 31, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

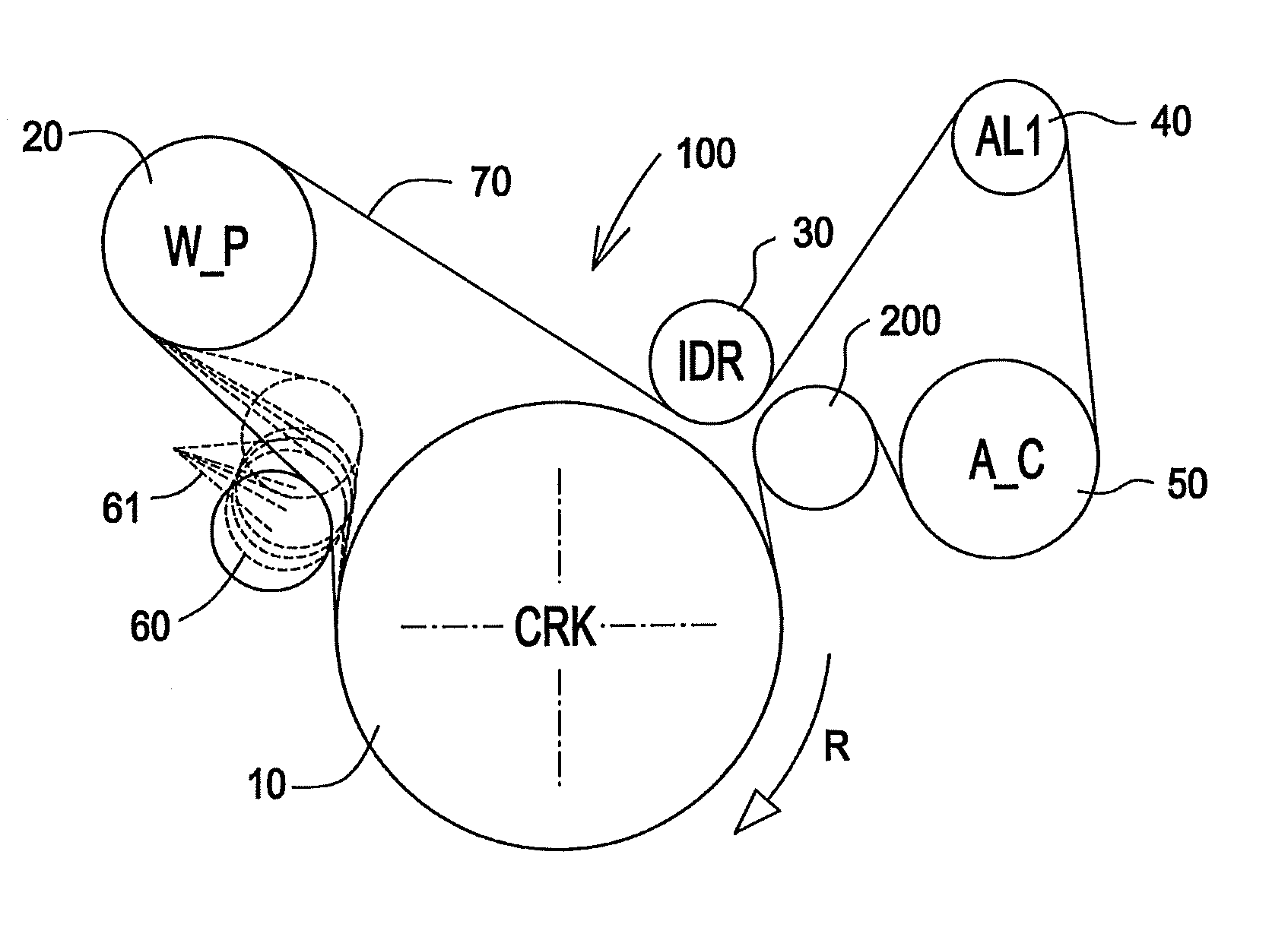

A belt system comprising a driver pulley, a driven pulley, a belt trained between the driver pulley and the driven pulley, a belt tensioning device engaged with the belt, a first idler engaged with the belt between the driver pulley and the driven pulley, a second idler engaged with the belt, the second idler engaged with the belt span immediately upstream of the driver pulley, the second idler comprising an arm journalled to a base, the arm urged to load the belt by a torsion spring, the arm having an effective length of less than 6 mm, and the torsion spring having a spring rate of approximately 0.128 mm/deg.
