System, method and apparatus for an inductively coupled plasma Arc Whirl filter press
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 31, 2017
Issued Date -
N/A
app pub date -
Mar 17, 2014
filing date -
Oct 16, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

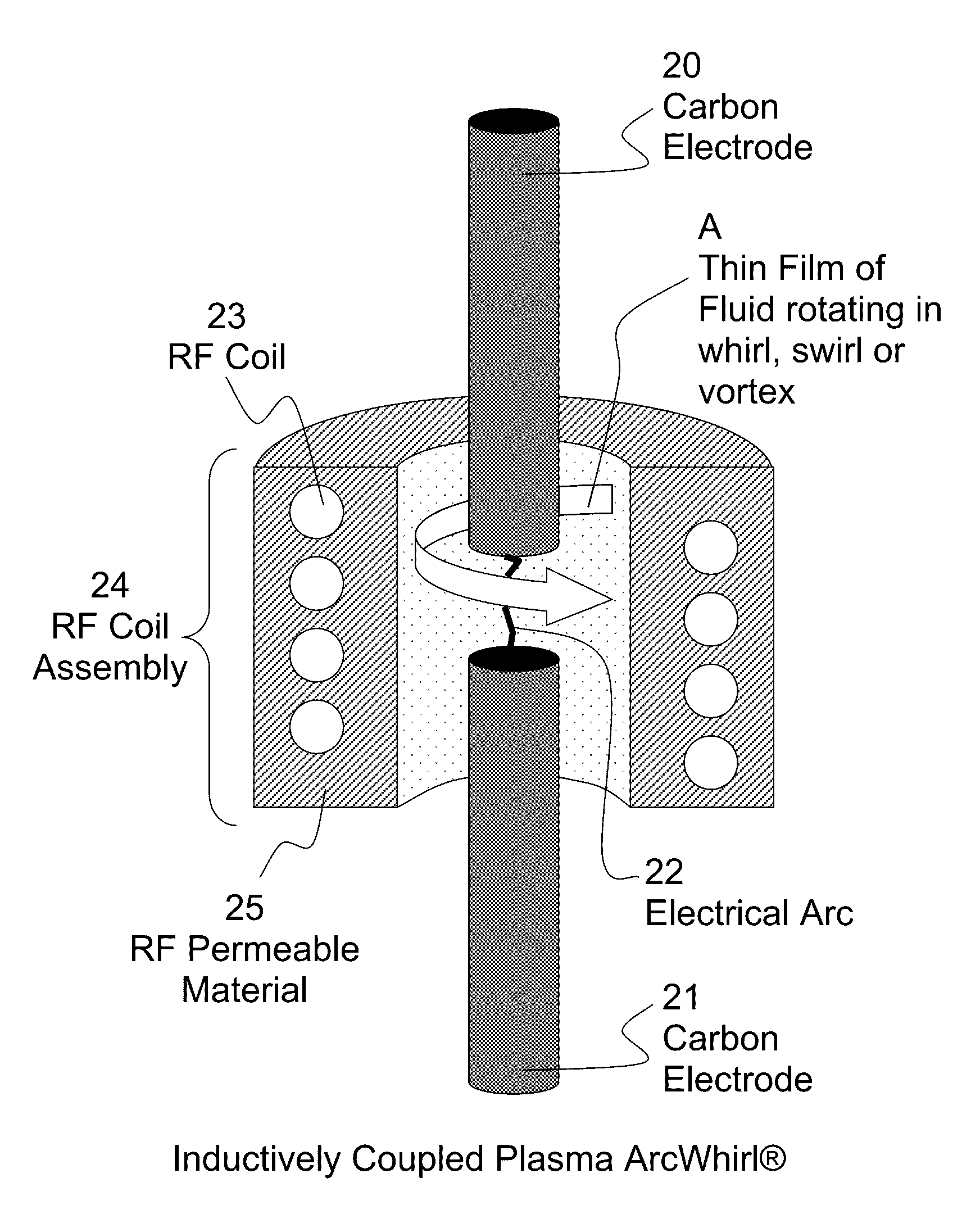

A plasma treatment system includes a plasma arc torch, a tee attached to a hollow electrode nozzle of the plasma arc torch, and a screw feed unit or a ram feed unit having an inlet and an outlet attached to the tee. The plasma arc torch includes a cylindrical vessel having a first end and a second end, a first tangential inlet/outlet connected to or proximate to the first end, a second tangential inlet/outlet connected to or proximate to the second end, an electrode housing connected to the first end of the cylindrical vessel such that a first electrode is (a) aligned with a longitudinal axis of the cylindrical vessel, and (b) extends into the cylindrical vessel, and a hollow electrode nozzle connected to the second end of the cylindrical vessel such that a centerline of the hollow electrode nozzle is aligned with the longitudinal axis of the cylindrical vessel.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H01J Class
- 2291 Applications Filed
- 1924 Patents Issued To-Date
- 83.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- H01J Class
- 87.58 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 31, 2028 |
