Fuel tank valve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 11, 2020
Grant Date -
Jul 31, 2014
app pub date -
Mar 26, 2014
filing date -
Jan 30, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

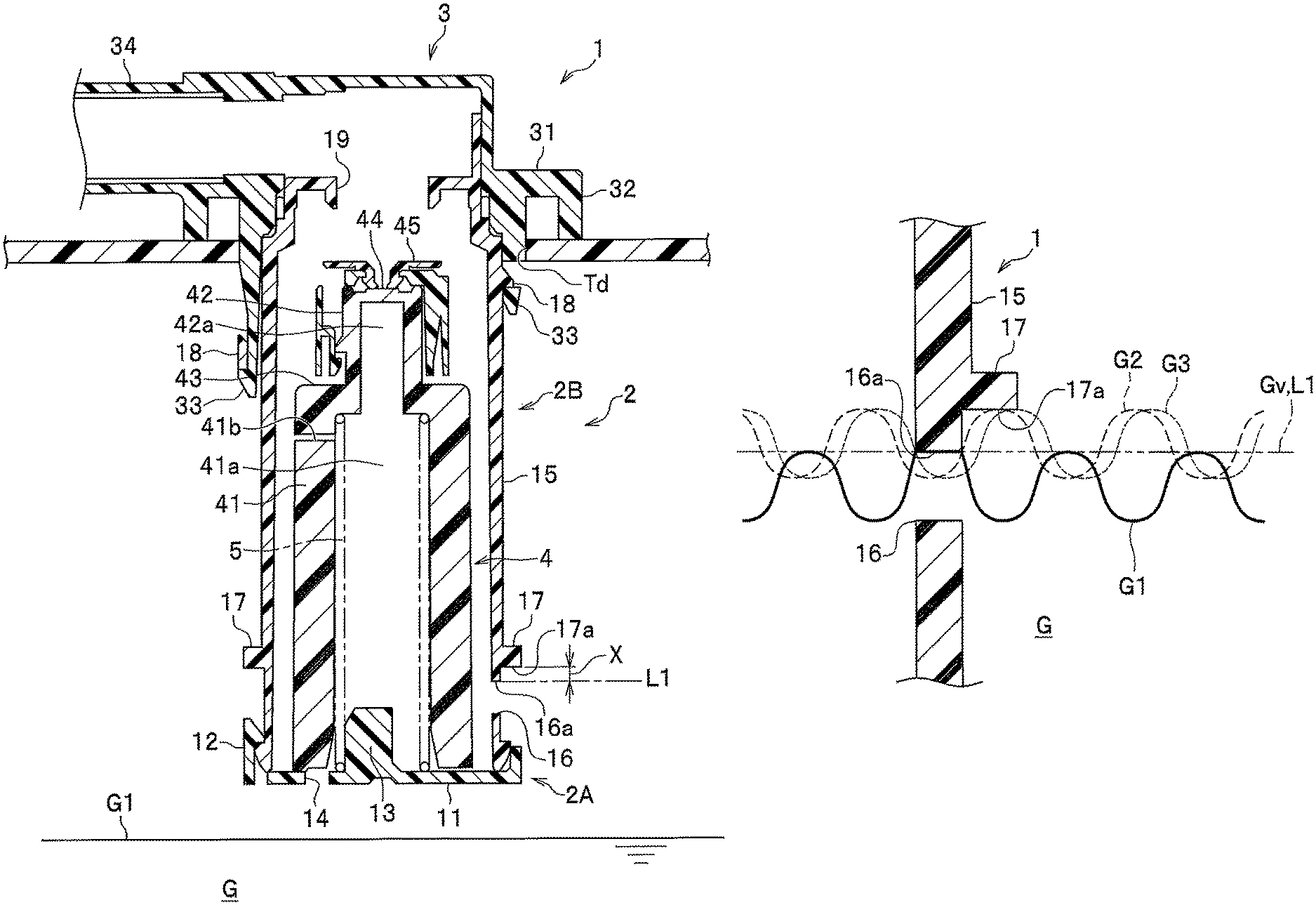

A fuel tank valve having: a housing that is arranged in a fuel tank and has a communication port communicating with an outside of the fuel tank; and a float valve body that is installed in the housing and closes the communication port when fuel in the housing increases, where a wall part of the housing has an opening part through which the fuel flows in and out, and a projecting part that is formed to correspond to the opening part and projects outwardly from the wall part, and the projecting part is separated above from the opening part by a predetermined distance, is provided.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2014 Application Filing Year
- F16K Class
- 1571 Applications Filed
- 1342 Patents Issued To-Date
- 85.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16K Class
- 62.15 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 11, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 11, 2032 |
