Embedded Nanopatterns for Optical Absorbance and Photovoltaics
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 31, 2014
app pub date -
Aug 17, 2012
filing date -
Aug 19, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
Abstract

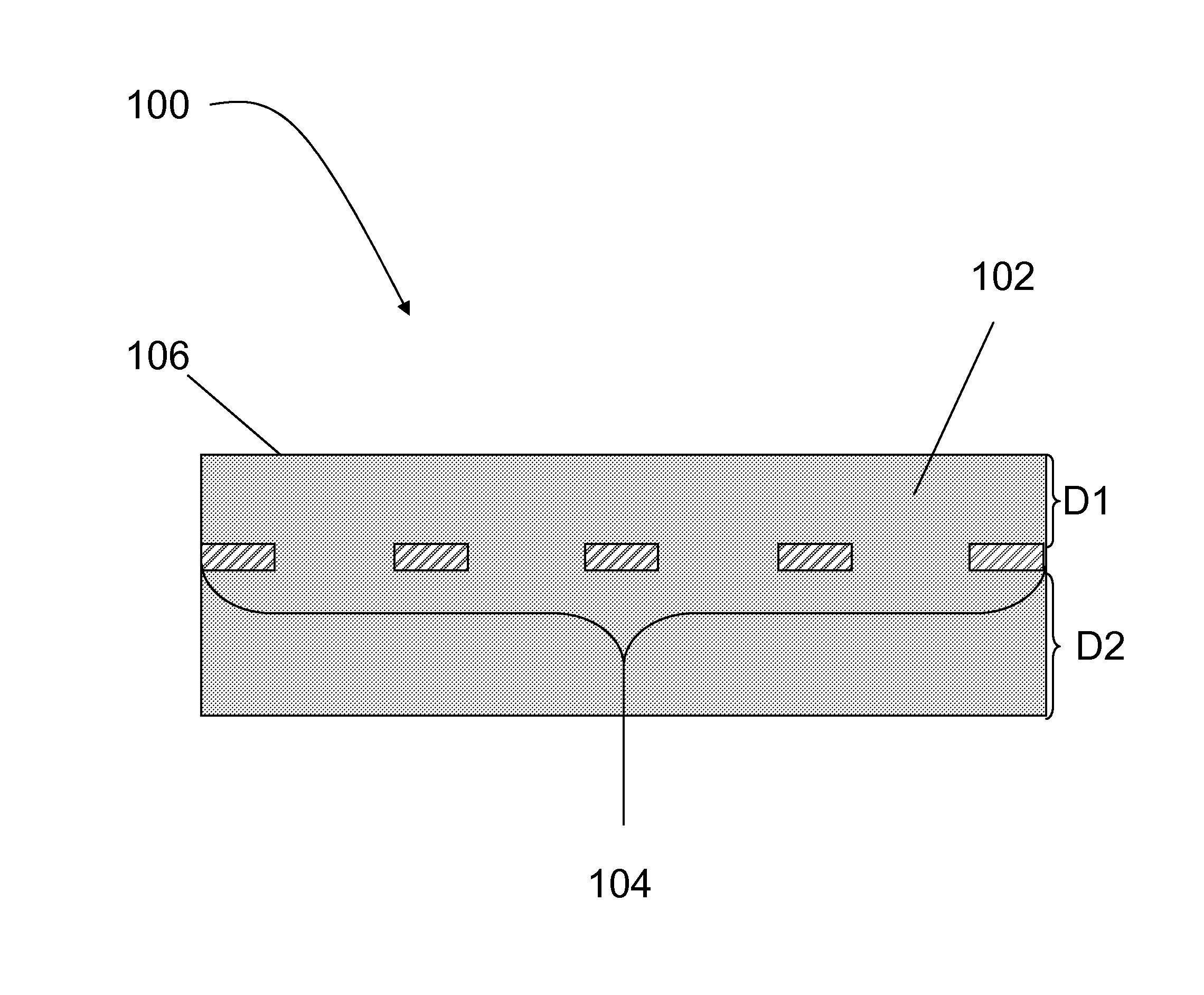

Devices and methods for enhancing optical absorbance and photovoltaics are disclosed. In some embodiments, a light absorbing device comprises a light absorbing material having a front surface and a back surface, and a planar array of nanostructures embedded within the light absorbing material between the front surface and the back surface of the light absorbing material. The nanostructures may be formed from a metallic material.
