MAGNETIC HINGE SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 31, 2014
app pub date -
Mar 5, 2014
filing date -
Apr 4, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

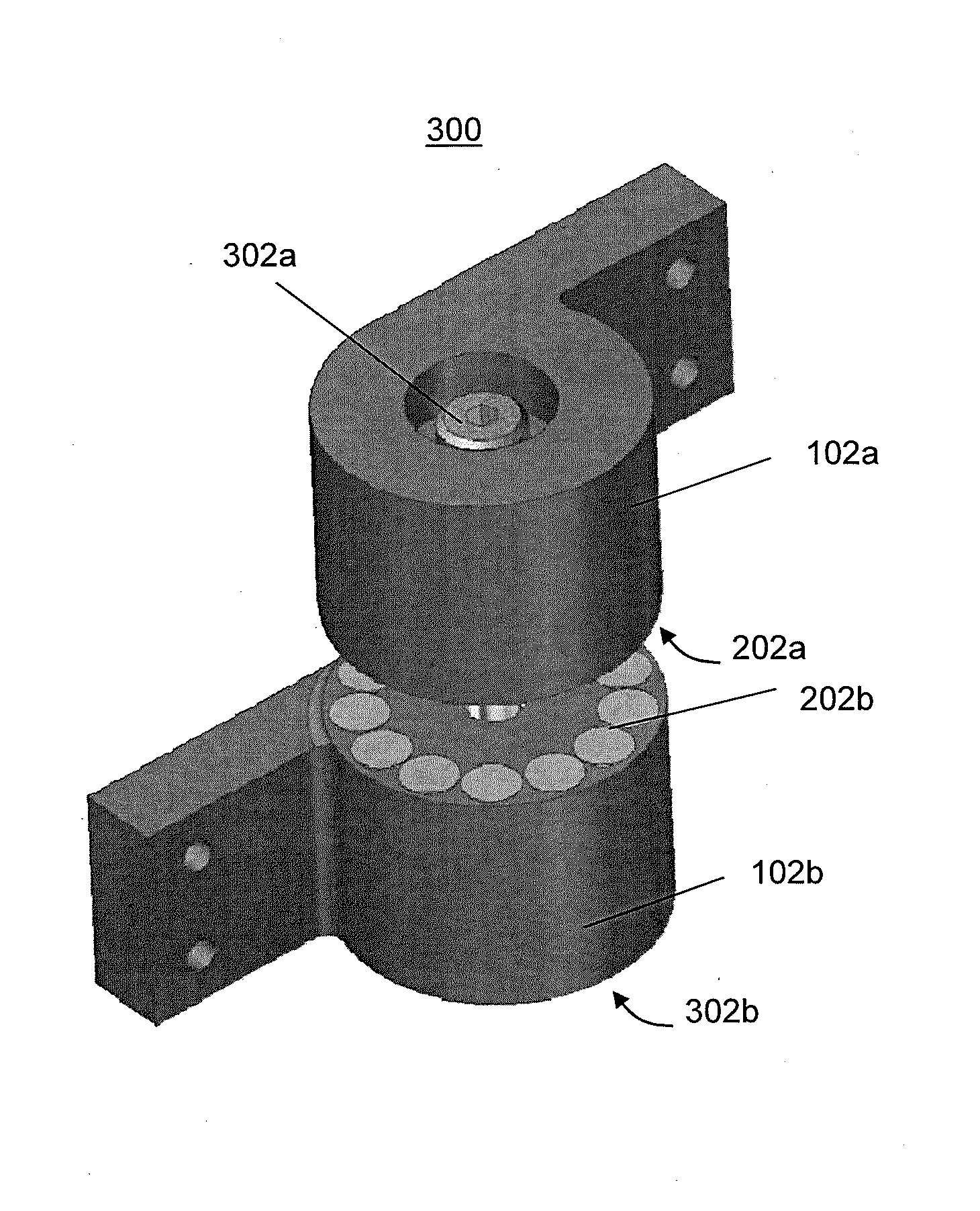

A magnetic hinge system includes a first component that is associated with a first object, a second component that is associated with a second object, and an axle. The first component includes a first hole and a first magnetic structure having a first plurality of magnetic source regions having a first polarity pattern. The second component includes a second hole and a second magnetic structure having a second plurality of magnetic source regions having a second polarity pattern complementary to said first polarity pattern. The axle can be inserted into the first hole and the second hole such that the first and second magnetic structures face each other across an interface boundary, where the first polarity pattern and the second polarity pattern are in accordance with a cyclic implementation of a code of length N that has a cyclic correlation function having a single peak and a plurality of off peaks per code modulo.
