Fitting For Changing Liquid Paths
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 24, 2014
app pub date -
Jun 13, 2012
filing date -
Jun 17, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

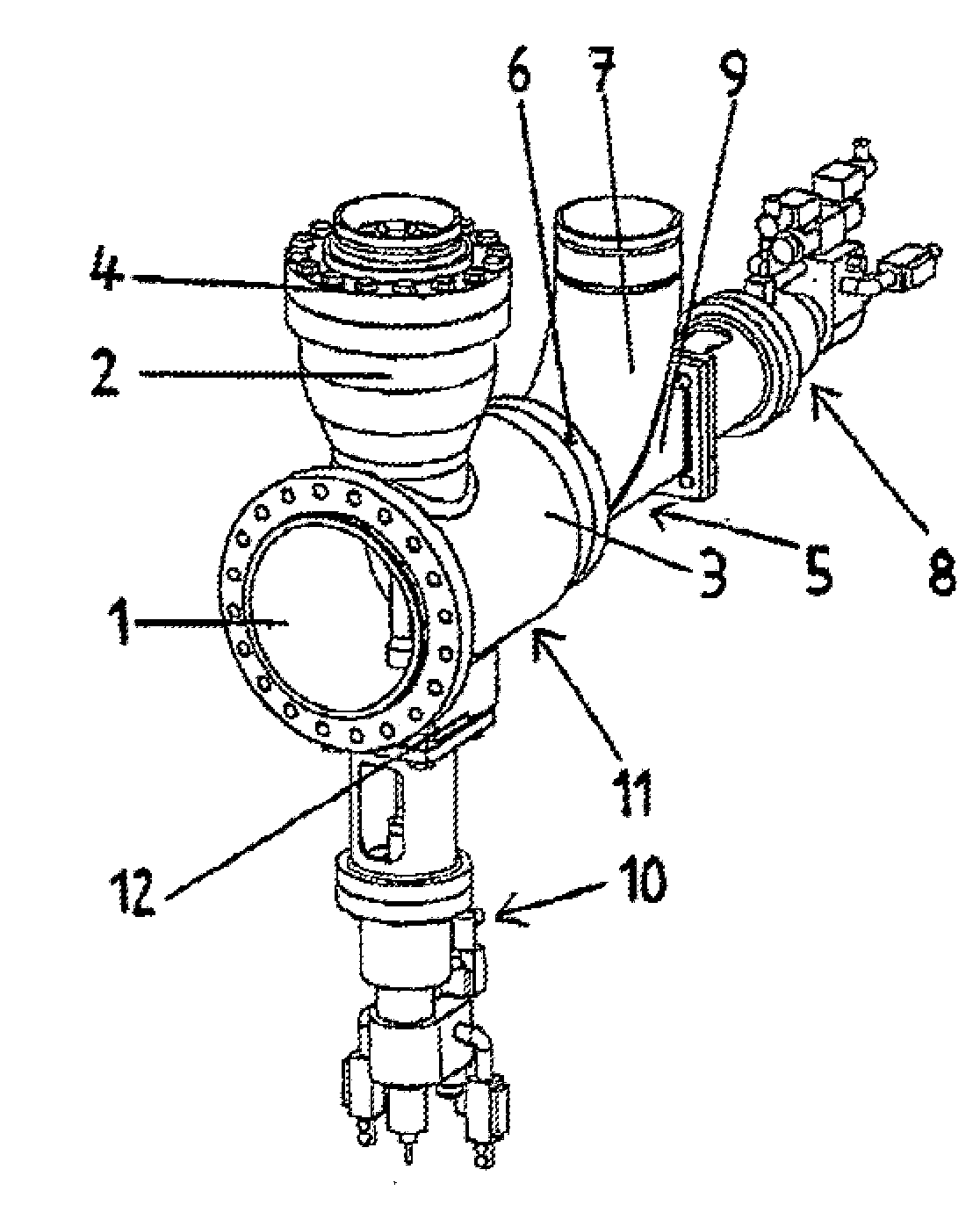

A fitting for changing liquid paths, in particular for systems with a pressure exchanger, is provided. The pressure exchanger has pipes having alternating flow direction. The casing of the fitting includes an inlet piece, an outlet piece and a connection piece and at least one shut-off member connected to an actuator. The actuator is connected to a control device that controls the actuator to control a liquid flow between the inlet piece and the connection piece, or between the connection piece and the outlet piece. An actuator displaces a respective shut-off member arranged in each of the inlet piece and the outlet piece, with the shut-off members being axially displaceable to vary the size of flow openings that permit flow between the inlet piece and the connection piece or between the connection piece and the outlet piece.
First Claim
Other Claims data not available
