DEVICE FOR MOUNTING A SEPARATION MEMBRANE ELEMENT IN A SEPARATION MEMBRANE MODULE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 24, 2014
app pub date -
May 10, 2012
filing date -
May 17, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

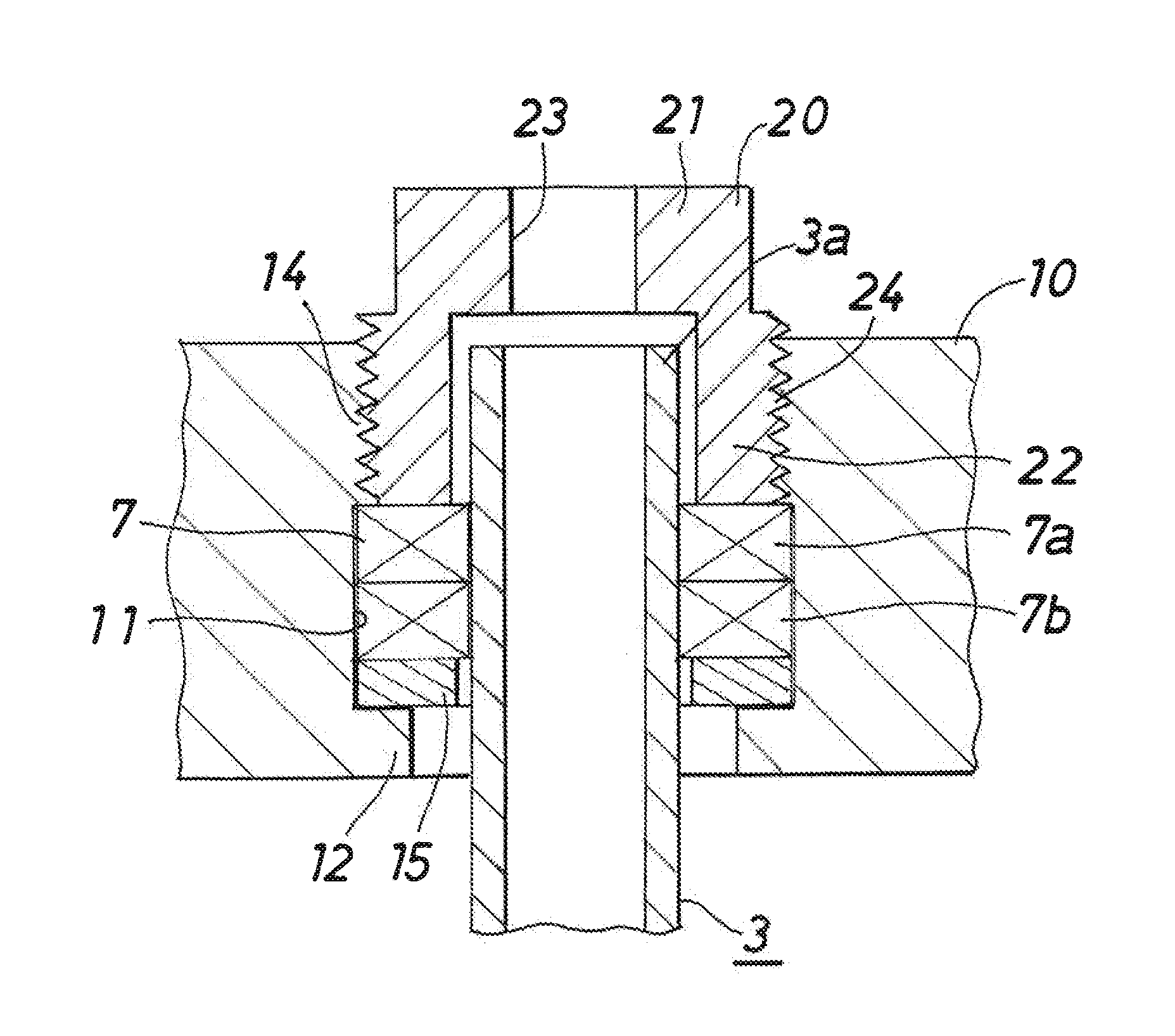

In the device for mounting a separation membrane element in a separation membrane module, a sealing member is constituted of a plurality of notched circular packings made of graphite, for example, each having a notched circular shape as viewed in a plan view. The plurality of notched circular packings are fitted on an upper end portion of the separation membrane element in a state where the notched circular packings are made to overlap with each other in plural stages, notched portions of the notched circular packings arranged adjacent to each other vertically are arranged at positions different from each other as viewed in a plan view, the notched circular packings in plural stages are received by the inwardly projecting annular receiving portion in the mounting hole, the notched circular packings in plural stages are pressed to the annular receiving portion by threaded engagement of the press fitting thus applying sealing.
First Claim
Other Claims data not available
